Saab 9-5 (9600) 2002-2005 Auxiliary heater Heater unit

Group 2 Engine, section 965

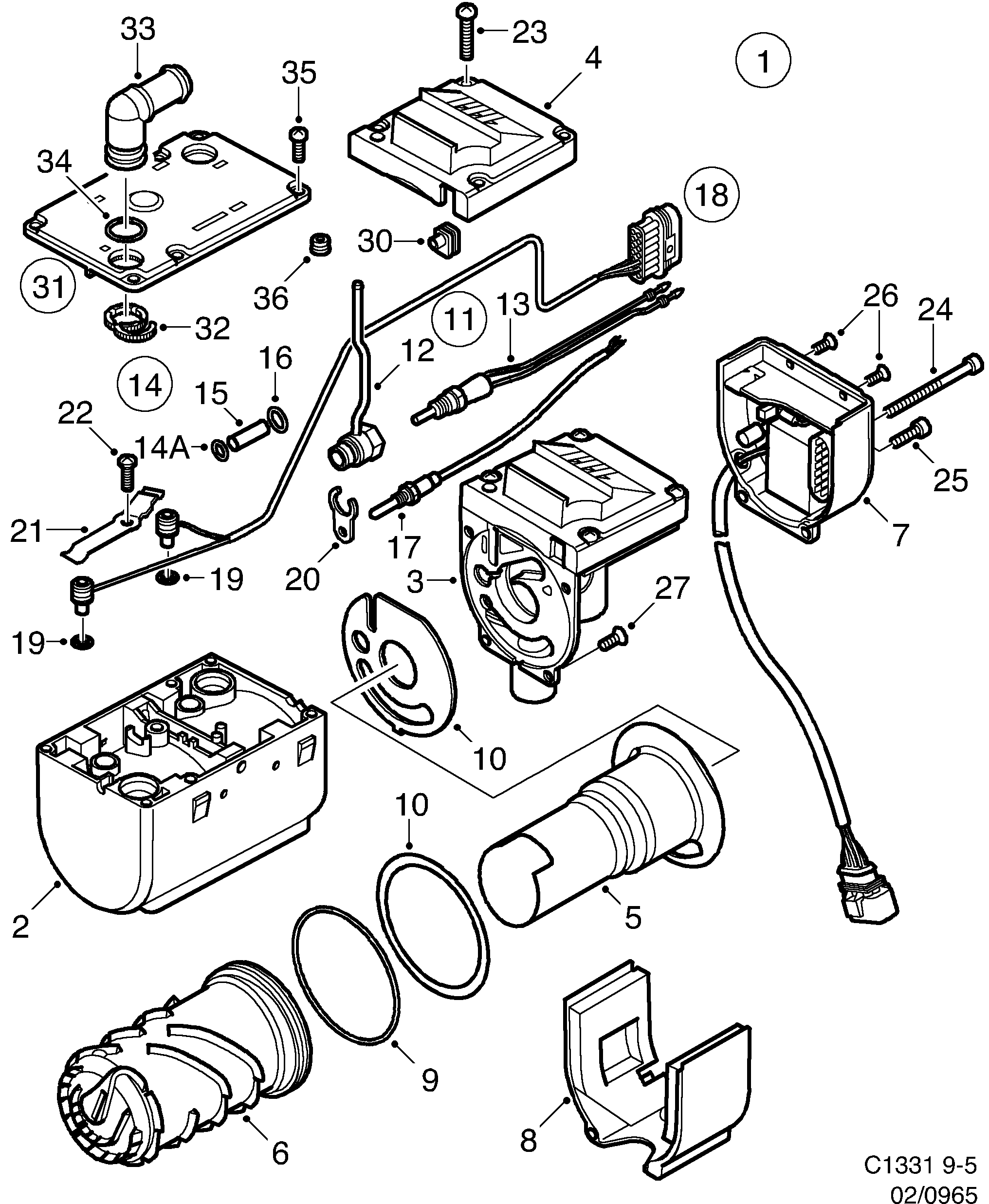

Saab 9-5 (9600) Auxiliary heater Heater unit diagram

Pos	Article	Part No.
1	Heater unit	5322821
2	Cover	5460019
3	Fan	5460076
4	Cover	93173013 (replaces 5460084)
4	Cover	93173013
5	Burner	93173002 (replaces 5460035)
5	Burner	93173002
6	Heat exchanger	93173001 (replaces 5460001)
6	Heat exchanger	93173001
7	Control unit	5460027
8	Cover	93171128 (replaces 5460142)
8	Cover	93171128
9	O-ring	90541155 (replaces 4967139)
10	Gasket	93173004 (replaces 5463294)
11	Glow plug	5460068
12	Fuel connection	5462189
13	Glow plug	5461603
14	O-ring	93174508
14A	O-ring	5462213
15	Fuel connection	5462197
16	O-ring	5462205
17	Flame indicator	90544230 (replaces 5195144)
18	Cable harness	93178431 (replaces 5460050)
19	O-ring	93173067 (replaces 4967170)
20	Brace	93173006 (replaces 5460092)
21	Bracket	93173066 (replaces 5460167)
21	Bracket	93173066
22	Screw	93173060 (replaces 5190947)
22	Screw	93173060
23	Screw	93173065 (replaces 4967196)
23	Screw	93173065
24	Screw	93173062 (replaces 4967204)
24	Screw	93173062
25	Screw	93173064 (replaces 4967212)
25	Screw	93173064
26	Screw	93173063 (replaces 4967220)
26	Screw	93173063
27	Screw	93173061 (replaces 5190954)
27	Screw	93173061
30	Sleeve	93173068 (replaces 5460159)
31	Cover	93173010 (replaces 5460100)
32	Washer	93173072 (replaces 5460118)
32	O-ring kit	93173072
33	Nipple	93173069 (replaces 5460126)
33	Nipple	93173069
34	O-ring	5460134
35	Screw	5461595
36	Fuel connection	93173071 (replaces 5462544)
36	Fuel connection	93173071
	Clip	12780365 (replaces 8252553)
