Saab 9-5 (9600) 2002-2005 Auxiliary heater

Group 2 Engine, section 960

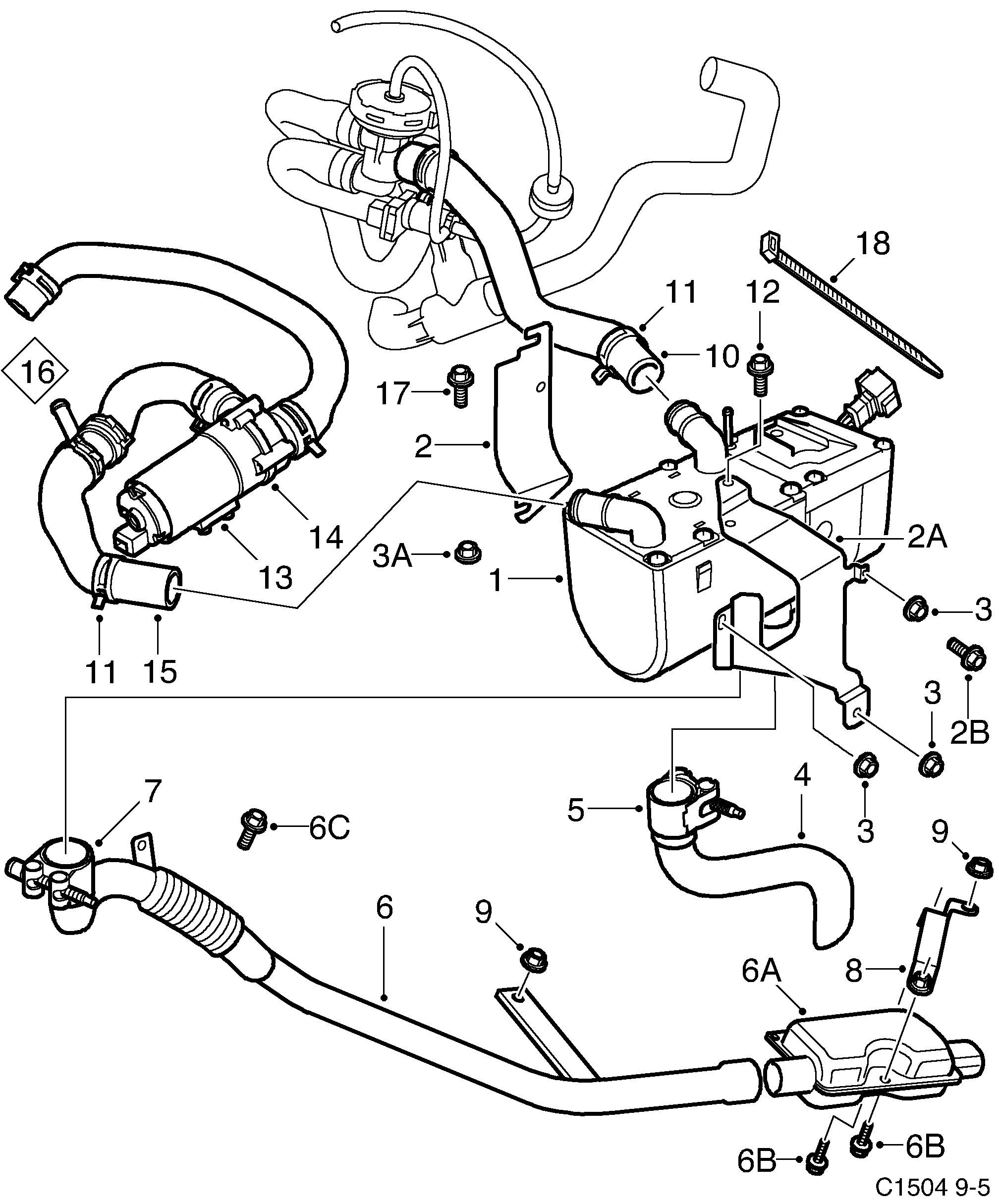

Saab 9-5 (9600) Auxiliary heater diagram

Pos	Article	Part No.
2	Bracket	5325766
2	Bracket	5460951
2A	Bracket	5329925
2A	Bracket	5460944
2A	Bracket	5461462
2B	Screw	11900355 (replaces 4348694)
3	Nut	7985377
4	Inlet manifold	5191168
5	Clamp	5125646
6	Exhaust pipe	5320726
6	Exhaust pipe	5461199
6A	Muffler	400106936 (replaces 4623351)
6B	Screw	11900378 (replaces 7978372)
6B	Screw	11900378
6C	Screw	11900353 (replaces 7978091)
7	Clamp	5125653
8	Bracket	5320734
9	Nut	55563636 (replaces 4685582)
12	Screw	7974694
13	Clip	12780365 (replaces 8252553)
17	Screw	7972466
18	Tie strap	11900513 (replaces 92150191)
18	Tie strap	8552663
