Saab 9-5 (9600) 2005-2010 Heater BioPower

Group 2 Engine, section 958

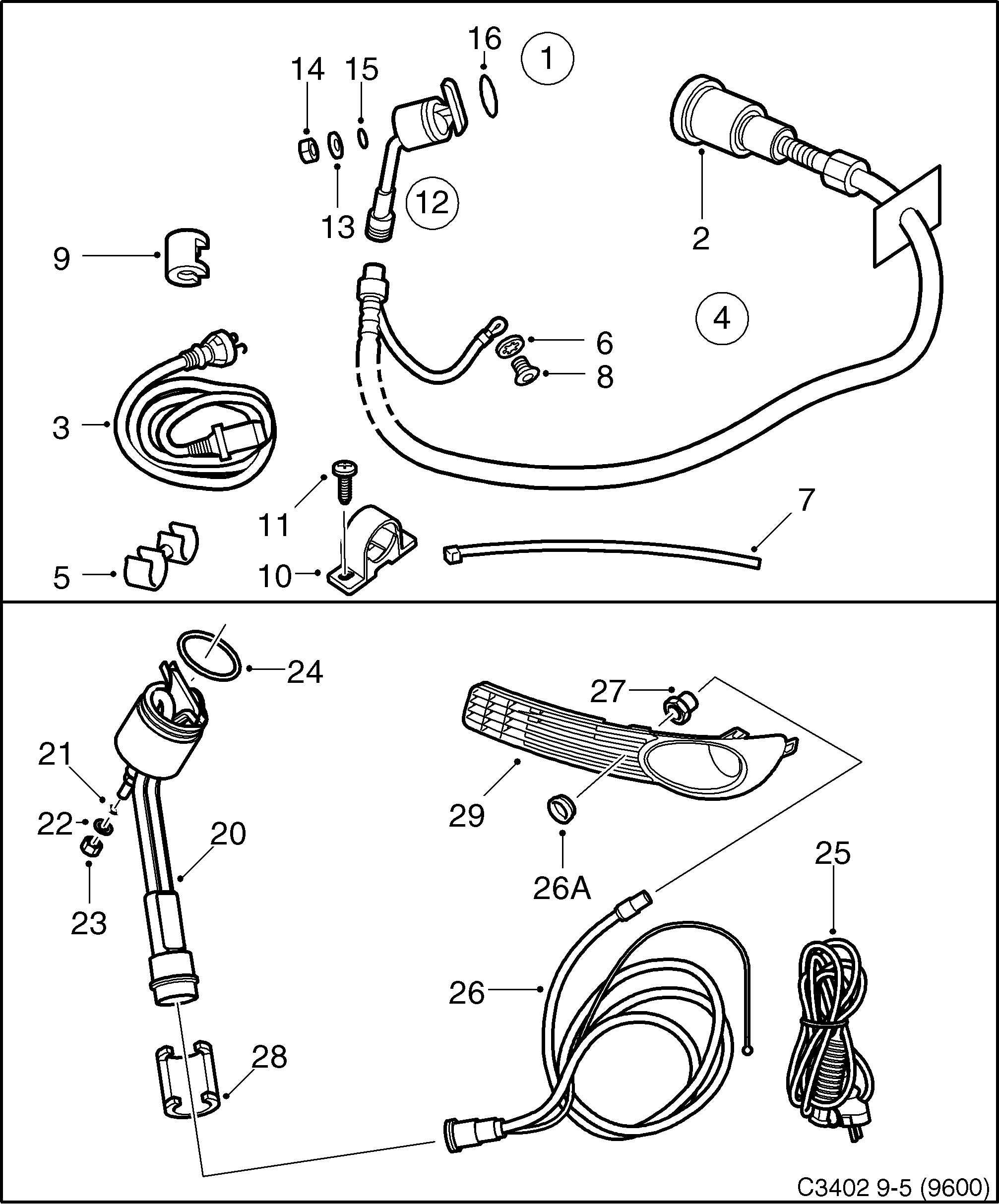

Saab 9-5 (9600) Heater BioPower diagram

Pos	Article	Part No.
1	Heater	32026240 (replaces 32025650)
2	Connecting cable	400127809
3	Extension cable	12791716
4	Mounting kit	32000005
5	Clamp	7398464
6	Star washer	92152203 (replaces 7915556)
7	Tie strap	11900513 (replaces 92150191)
8	Screw	8441503
9	Retaining clip	12791790
10	Bracket	12795096 (replaces 400130639)
11	Screw	92150118
12	Heater	55565787 (replaces 400111688)
12	Heat exchanger	55565787
13	Washer	5331715
14	Nut	5331723
15	O-ring	5331707
16	O-ring	5331756
20	Heater	55565787 (replaces 4968392)
25	Connecting cable	12778599
26	Cable	12778601
26A	Retainer	12778062
27	Lock nut	12847029 (replaces 12778604)
27	Lock nut	12847029
28	Clamp	12778597
