Saab 9-5 (9600) 2002-2005 Coolant pipe

Group 2 Engine, section 955

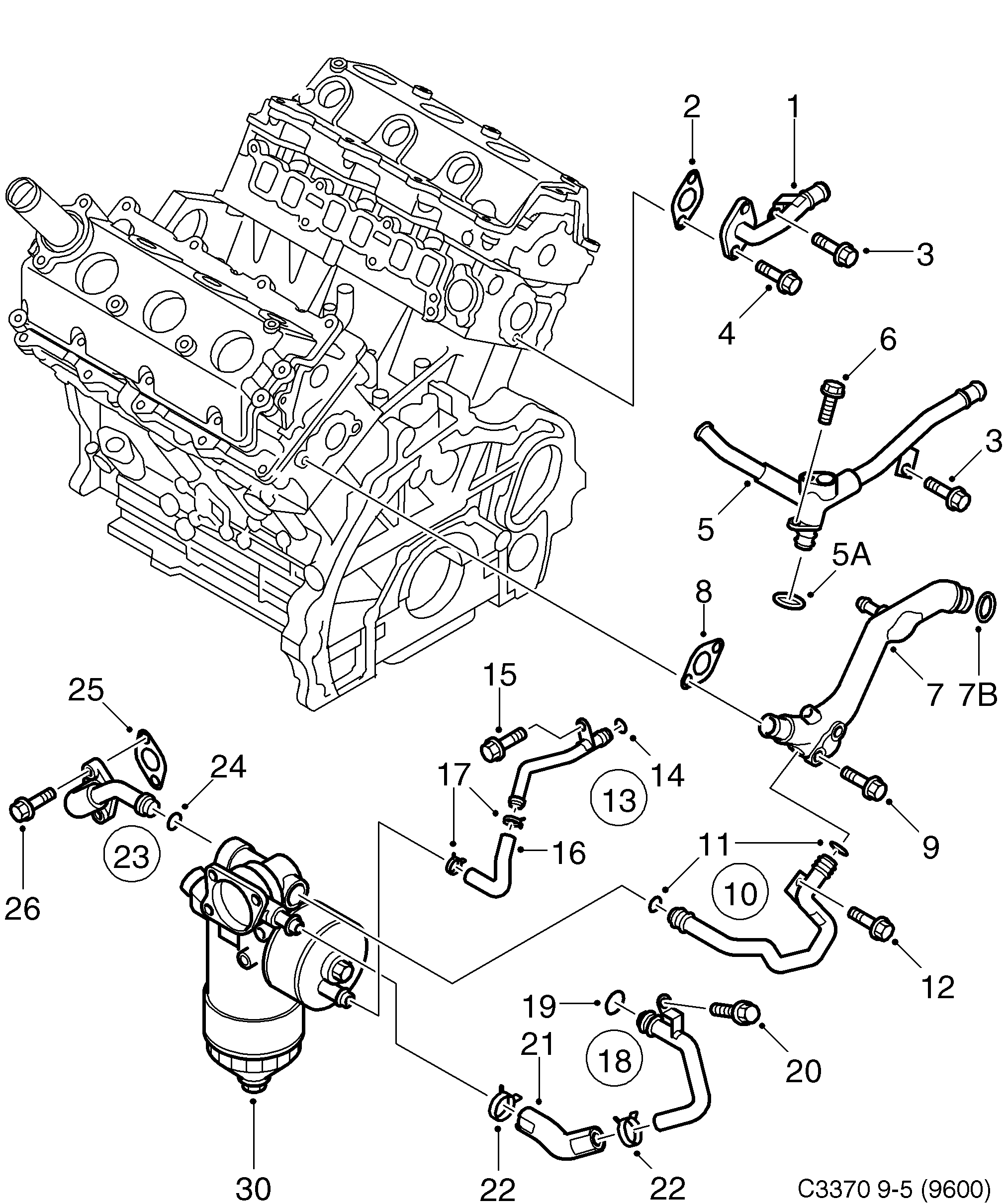

Saab 9-5 (9600) Coolant pipe diagram

Pos	Article	Part No.
1	Pipe	5952056
2	Gasket	5952064
3	Screw	5951215
4	Screw	5952080
5	Tube	5952098
5A	Seal	94011614
6	Screw	5951827
7	Tube	97323997 (replaces 32000284)
7	Pipe	97323997 (replaces 97257579)
7B	O-ring	94011611
8	Seal	97214907 (replaces 5951298)
8	Gasket	97214907
9	Screw	5951165
10	Tube	5952106
11	O-ring	94011614 (replaces 5956875)
13	Tube	97250658 (replaces 5952395)
15	Screw	5951967
16	Hose	5952379
17	Hose clamp	5951231
18	Tube	5952114
20	Screw	5952189
21	Hose	5952387
23	Tube	5952403
24	O-ring	5956883
25	Gasket	5952221
