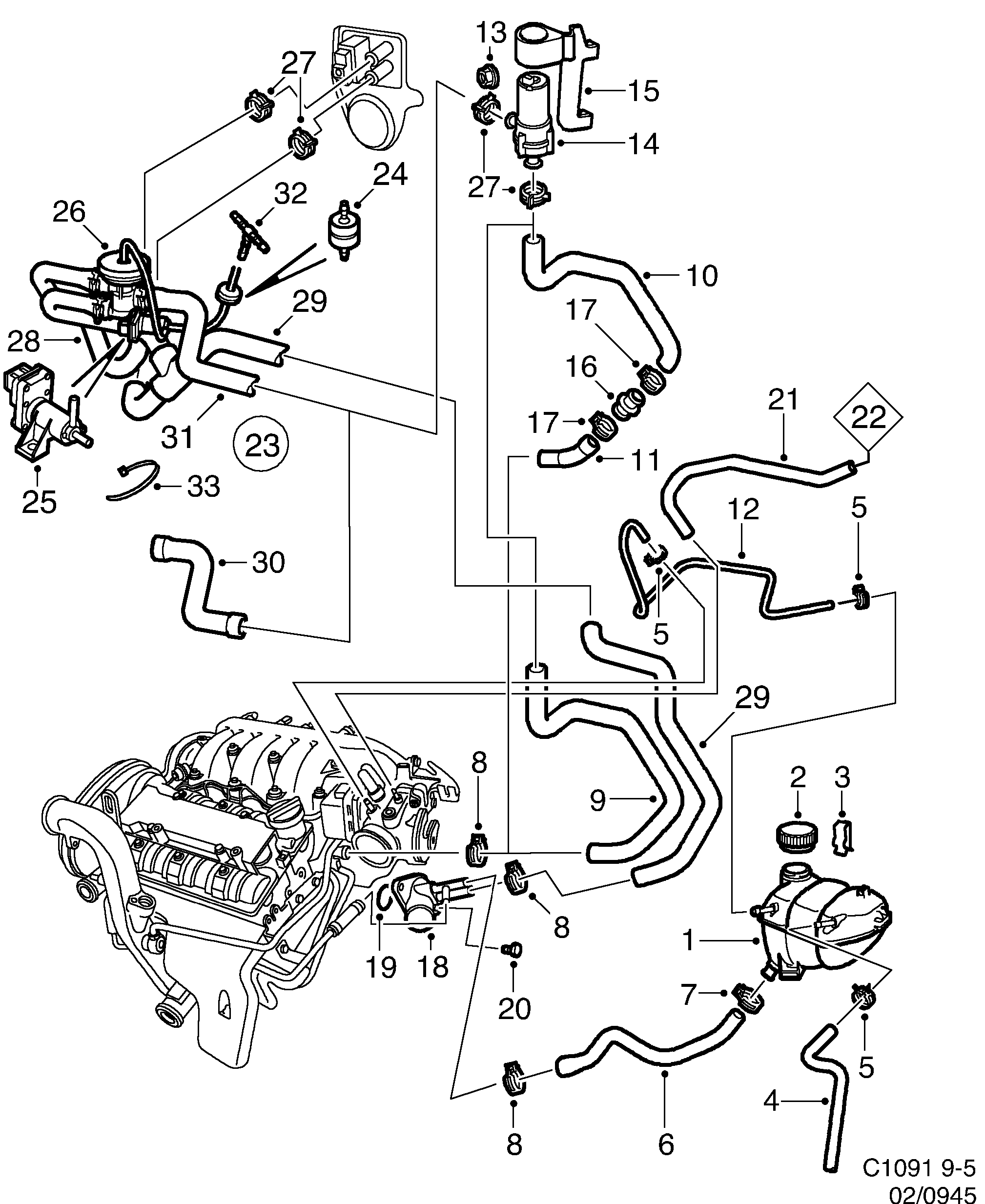

Group 2 Engine, section 945
| Pos | Article | Part No. |
|---|---|---|
| 1 | Expansion tank | 90499767 (replaces 4575692) |
| 2 | Cover | 4395513 |
| 3 | Clamp | 4397485 |
| 5 | Hose clamp | 90469888 (replaces 4620365) |
| 6 | Hose | 4397675 |
| 6 | Hose | 4968442 |
| 6 | Hose | 5193933 |
| 7 | Hose clamp | 90572594 (replaces 4576609) |
| 8 | Hose clamp | 90467194 (replaces 4576583) |
| 9 | Radiator hose | 4754602 |
| 10 | Radiator hose | 4968913 |
| 11 | Radiator hose | 4969374 |
| 12 | Hose | 4397683 |
| 12 | Hose | 5322763 |
| 13 | Nut | 11900451 (replaces 7977929) |
| 14 | Circulation pump | 4395612 |
| 15 | Bracket | 4754370 |
| 16 | Joint nipple | 4726311 |
| 18 | Cover | 9179441 |
| 19 | O-ring | 4346839 |
| 20 | Screw | 11093601 (replaces 4346854) |
| 21 | Hose | 90490288 (replaces 9174657) |
| 23 | Valve | 4756904 |
| 23 | Valve | 4756722 |
| 23 | Valve | 5046941 |
| 24 | Check valve | 12793343 (replaces 4301669) |
| 25 | Secondary air injection control valve | 90466214 (replaces 4394078) |
| 26 | By-pass valve | 90566947 (replaces 4396172) |
| 28 | Hose | 4756706 |
| 29 | Hose | 5047246 |
| 30 | Hose | 4756870 |
| 31 | Hose | 4756664 |
| 31 | Hose | 5046933 |
| 32 | Pipe | 12791937 (replaces 8366791) |
| 33 | Tie strap | 11900513 (replaces 92150191) |
