Saab 9-5 (9600) 1998-2010 Radiator

Group 2 Engine, section 940

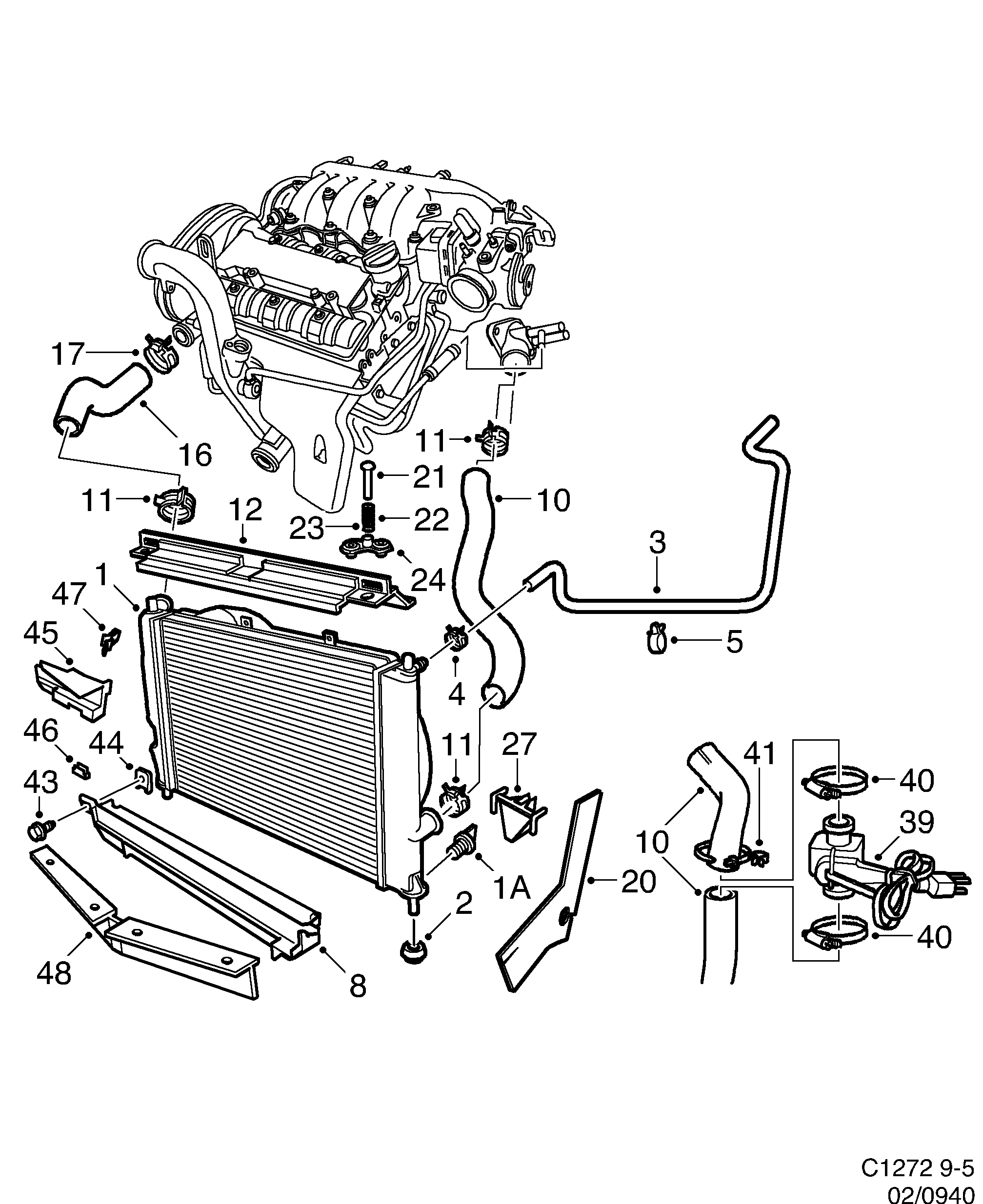

Saab 9-5 (9600) Radiator diagram

Pos	Article	Part No.
1	Radiator	4575734
1A	Draining plug	5333471
2	Rubber bushing	90091989 (replaces 4283594)
3	Hose	4397667
3	Hose	5323860
4	Hose clamp	4576575
5	Clamp	11900515 (replaces 92150209)
8	Air shield	4896155
10	Hose	4397659
10	Hose	5194261
11	Hose clamp	13136147 (replaces 4897732)
12	Air shield	4753976
16	Hose	4397642
17	Hose clamp	4897740
20	Air shield	4898516
20	Air shield	5325220
	Sleeve	5325907
20	Air shield	4898524
20	Air shield	5325238
21	Pin	4895108
22	Spring	4895116
23	Bracket	4576500
24	Rubber bushing	4576492
27	Bracket	4899795
39	Engine heater	4397295
40	Hose clamp	4576625
40	Hose clamp	7970106
41	Tie strap	11900513 (replaces 92150191)
43	Screw	92153150 (replaces 7976947)
44	Clip	8267098
45	Air shield	4898128
45	Air shield	5324918
45	Air shield	4898136
45	Air shield	5324900
46	Clip	30543254 (replaces 4294369)
47	Clamp	4397485
48	Ejector	4897112
