Saab 9-5 (9600) 2006-2010 Radiator Expansion tank

Group 2 Engine, section 930

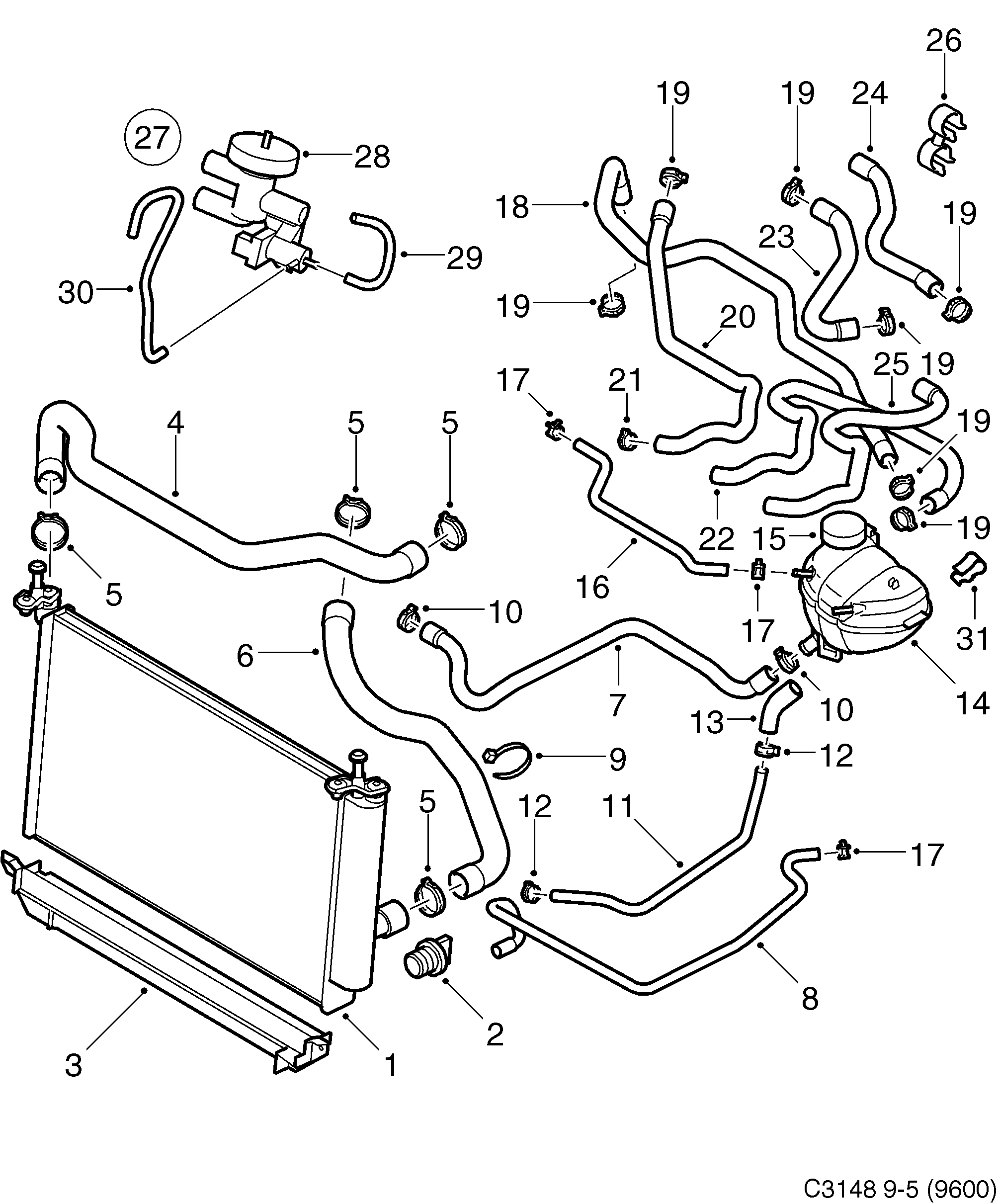

Saab 9-5 (9600) Radiator Expansion tank diagram

Pos	Article	Part No.
1	Radiator	5324926
1	Radiator	4575734
2	Draining plug	5333471
3	Air shield	4896155
4	Hose	12756058
5	Hose clamp	13136147
6	Hose	12756061
7	Pipe	12756060
8	Hose	5323860
9	Tie strap	7971898
9	Tie strap	11900513
10	Hose clamp	90572594 (replaces 90572972)
11	Pipe	12763964
12	Hose clamp	90467194
13	Hose	5321385
14	Expansion tank	90499767
15	Cover	90467473
16	Hose	12756059
17	Hose clamp	90530642 (replaces 90572964)
17	Hose clamp	90530642
18	Hose	12756722
19	Hose clamp	90572594
20	Hose assembly	12756057
21	Hose clamp	90572590
22	Hose	12757192
23	Hose	5461124
24	Hose assembly	5320650
25	Hose	12757193
	Tie strap	7984784
26	Clamp	5125356
27	Valve	12756727
28	By-pass valve	90566947
29	Vacuum line	12757955
30	Vacuum line	12758274
31	Clamp	90233545
