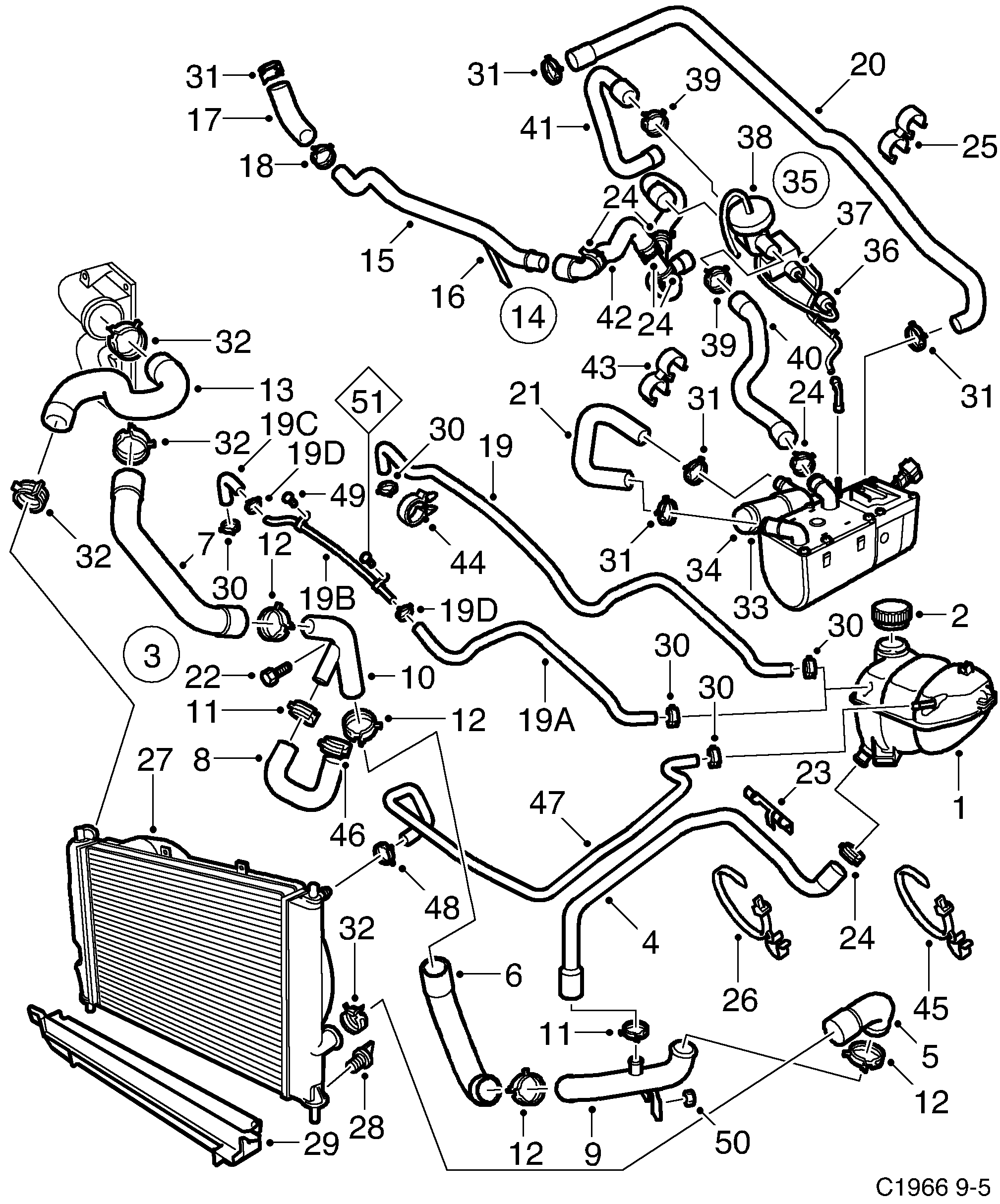

Group 2 Engine, section 920
| Pos | Article | Part No. |
|---|---|---|
| 1 | Expansion tank | 90499767 (replaces 4575692) |
| 2 | Cover | 4395513 |
| 3 | Hose | 5463948 (replaces 5460191) |
| 3 | Hose | 5463948 |
| 3 | Hose | 5462130 |
| 4 | Hose | 5463955 (replaces 5460217) |
| 4 | Hose | 5463955 |
| 4 | Hose | 5462171 |
| 5 | Hose | 5460241 |
| 5 | Hose | 5462155 |
| 6 | Hose | 5460258 |
| 6 | Hose | 5462163 |
| 7 | Hose | 5460357 |
| 8 | Hose | 5460423 |
| 9 | Joint nipple | 5460449 |
| 9 | Joint nipple | 5462148 |
| 10 | Joint nipple | 5460431 |
| 11 | Hose clamp | 90572594 (replaces 4576609) |
| 12 | Hose clamp | 13136147 (replaces 4897732) |
| 13 | Hose | 5326590 |
| 14 | Tube | 5460894 |
| 15 | Tube | 5460902 |
| 16 | Bracket | 5460910 |
| 17 | Hose | 5460928 |
| 18 | Hose clamp | 90499504 |
| 19 | Hose | 5326616 (replaces 5462106) |
| 19 | Hose | 5326616 |
| 19A | Hose | 5461579 |
| 19B | Tube | 5461553 |
| 19C | Hose | 5461561 |
| 19D | Hose clamp | 90469888 (replaces 4620365) |
| 20 | Hose | 5326624 |
| 20 | Hose | 5461116 |
| 21 | Hose | 5327069 |
| 21 | Hose | 5460969 |
| 22 | Hexagon screw | 7978265 |
| 23 | Bracket | 5460738 |
| 25 | Clip | 11900513 (replaces 5461504) |
| 25 | Tie strap | 11900513 (replaces 92150191) |
| 26 | Tie strap | 8552663 |
| 27 | Radiator | 4575734 |
| 28 | Draining plug | 5333471 |
| 29 | Air shield | 4896155 |
| 33 | Circulation pump | 4395612 |
| 34 | Bracket | 5323720 |
| 35 | Valve | 5463195 (replaces 5327994) |
| 36 | Check valve | 12793343 (replaces 4301669) |
| 37 | Secondary air injection control valve | 90466214 (replaces 4394078) |
| 38 | By-pass valve | 90566947 (replaces 4396172) |
| 40 | Hose assembly | 5320650 |
| 40 | Hose | 5461124 |
| 40 | Hose | 5461512 |
| 41 | Hose assembly | 5326780 |
| 42 | Radiator hose | 5462999 (replaces 5460845) |
| 35 | Valve | 5463195 |
| 41 | Hose assembly | 5463039 |
| 42 | Radiator hose | 5462999 |
| 43 | Clamp | 5125356 |
| 44 | Clamp | 11900515 (replaces 92150209) |
| 45 | Tie strap | 30507607 (replaces 7593221) |
| 46 | Hose clamp | 90467194 (replaces 4576583) |
| 47 | Hose | 5323860 |
| 48 | Hose clamp | 4576575 |
| 49 | Screw | 11900353 (replaces 7978091) |
| 50 | Lock nut | 90304096 (replaces 4345567) |
