Saab 9-5 (9600) 1998-2010 Radiator

Group 2 Engine, section 910

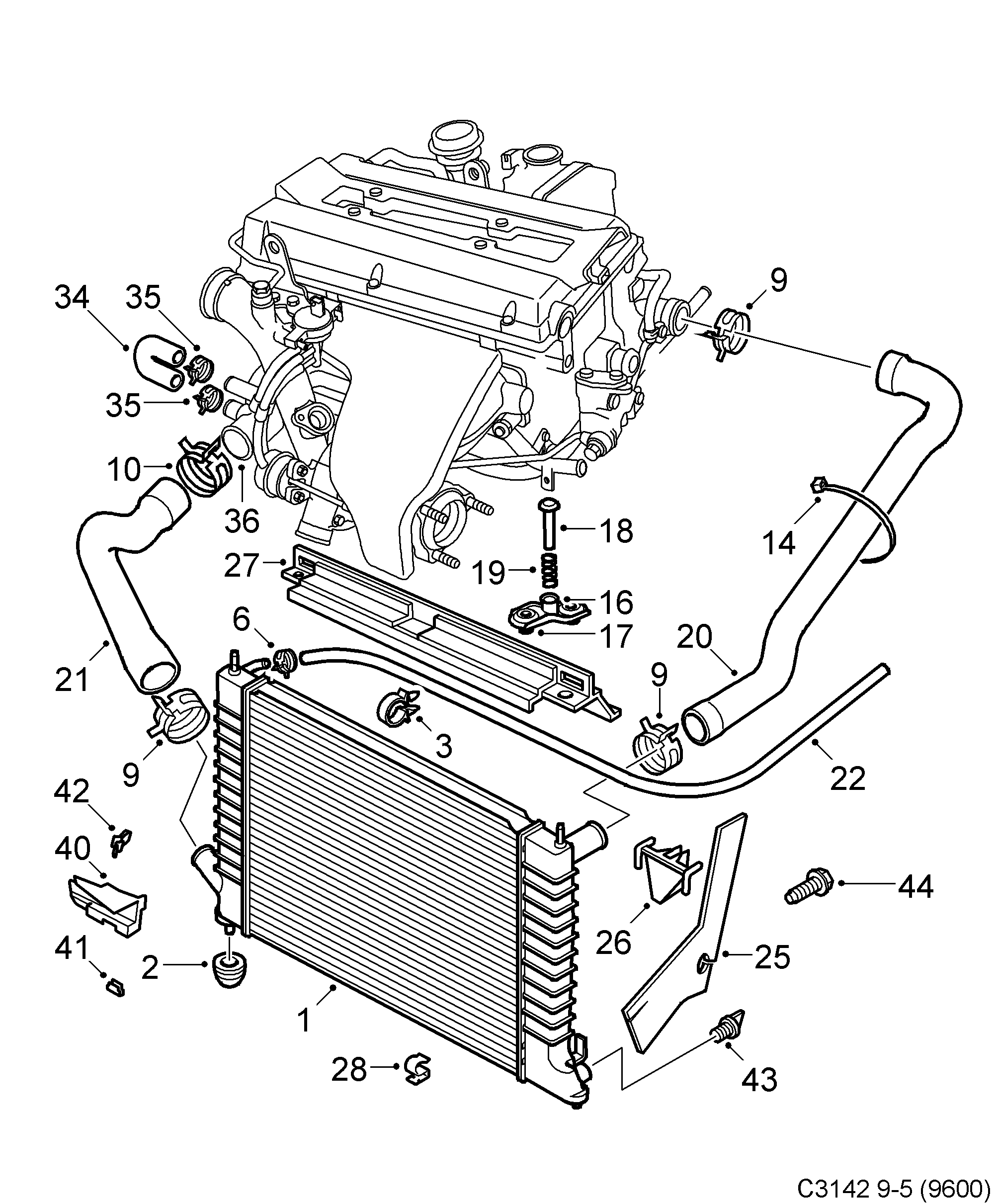

Saab 9-5 (9600) Radiator diagram

Pos	Article	Part No.
1	Radiator	5329347 (replaces 4575700)
1	Radiator	5193370
1	Radiator	5329354 (replaces 4575718)
1	Radiator	5193388
2	Rubber bushing	90091989 (replaces 4283594)
3	Clamp	11900515 (replaces 92150209)
6	Hose clamp	4576575
9	Hose clamp	13136147
10	Hose clamp	90490542
14	Tie strap	11900513 (replaces 92150191)
16	Bracket	4576500
17	Rubber bushing	4576492
18	Pin	4895108
19	Spring	4895116
20	Hose	4397501
20	Hose	5193362
21	Hose	4899449
22	Hose	4397527
25	Air shield	4726220
25	Air shield	4898516
25	Air shield	5325220
	Sleeve	5325907
25	Air shield	4726238
25	Air shield	4898524
25	Air shield	5325238
26	Bracket	4899795
27	Air shield	4753976
28	Clamp	7108491
34	Hose	55558952 (replaces 9178849)
34	Hose	55558952
35	Hose clamp	4576591
40	Air shield	4898128
40	Air shield	5324918
40	Air shield	4898136
40	Air shield	5324900
41	Clip	30543254 (replaces 4294369)
42	Clamp	4397485
43	Draining plug	5333471
44	Screw	92153150 (replaces 7976947)
44	Screw	11900355
