Saab 9-5 (9600) 2006-2010 Sensor Sensor

Group 2 Engine, section 907

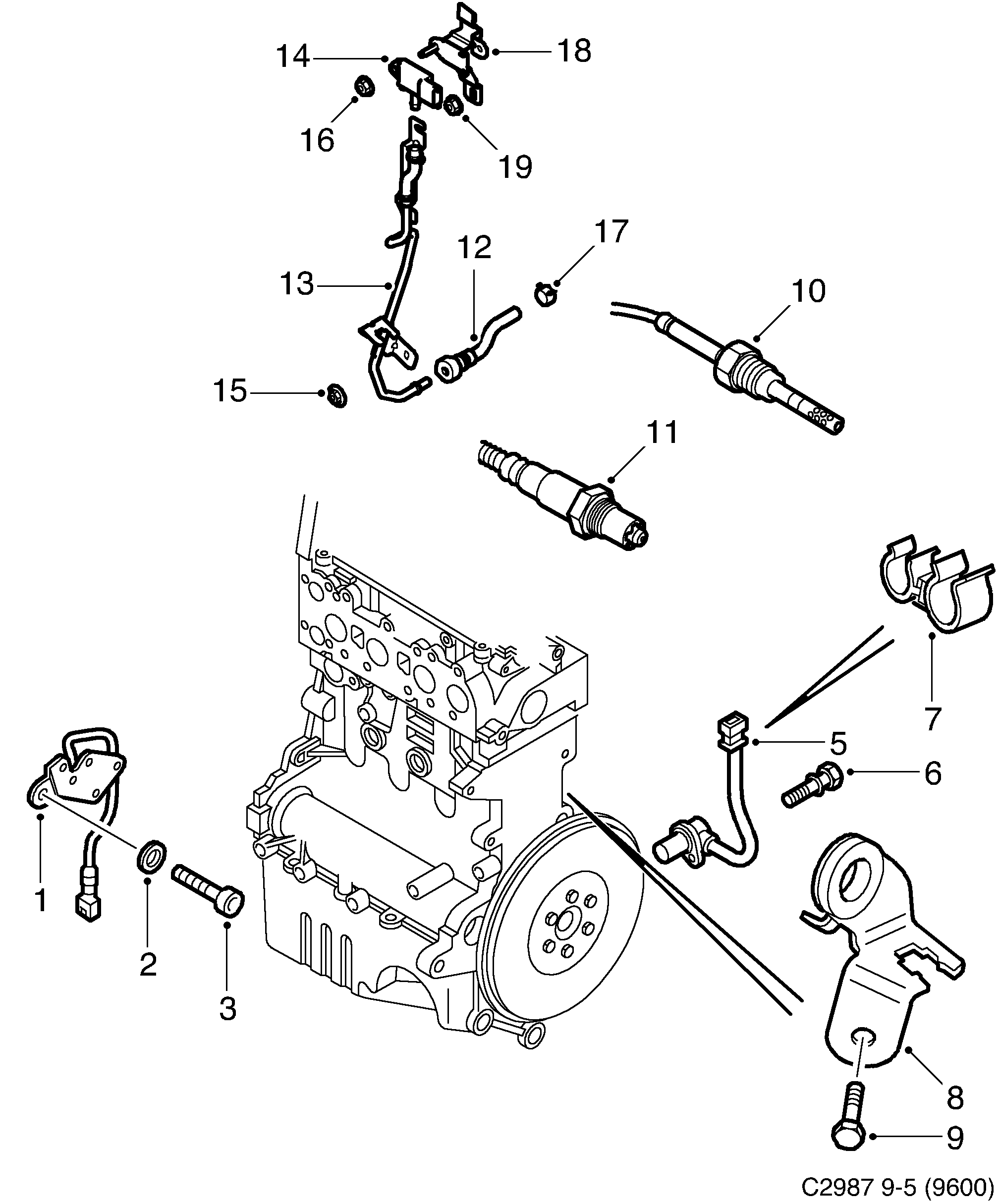

Saab 9-5 (9600) Sensor Sensor diagram

Pos	Article	Part No.
1	Camshaft position sensor	55216243 (replaces 93179392)
2	Washer	93178882
3	Screw	93178832 (replaces 93178711)
5	Crankshaft position sensor	93179391
6	Screw	93178468
7	Clip	93181922
8	Bracket	55355415
9	Screw	93182794
10	Temperature sensor	55557662
11	Temperature sensor	55556983
12	Hose	55556997
13	Pipe	55557551
14	Charge Air Absolute Pressure Sensor	93187247
15	Hexagon nut	55563636
16	Nut	11900451
17	Hose clamp	55564198 (replaces 55353932)
17	Hose clamp	55564198
18	Bracket	55556989
18	Bracket	55556988
