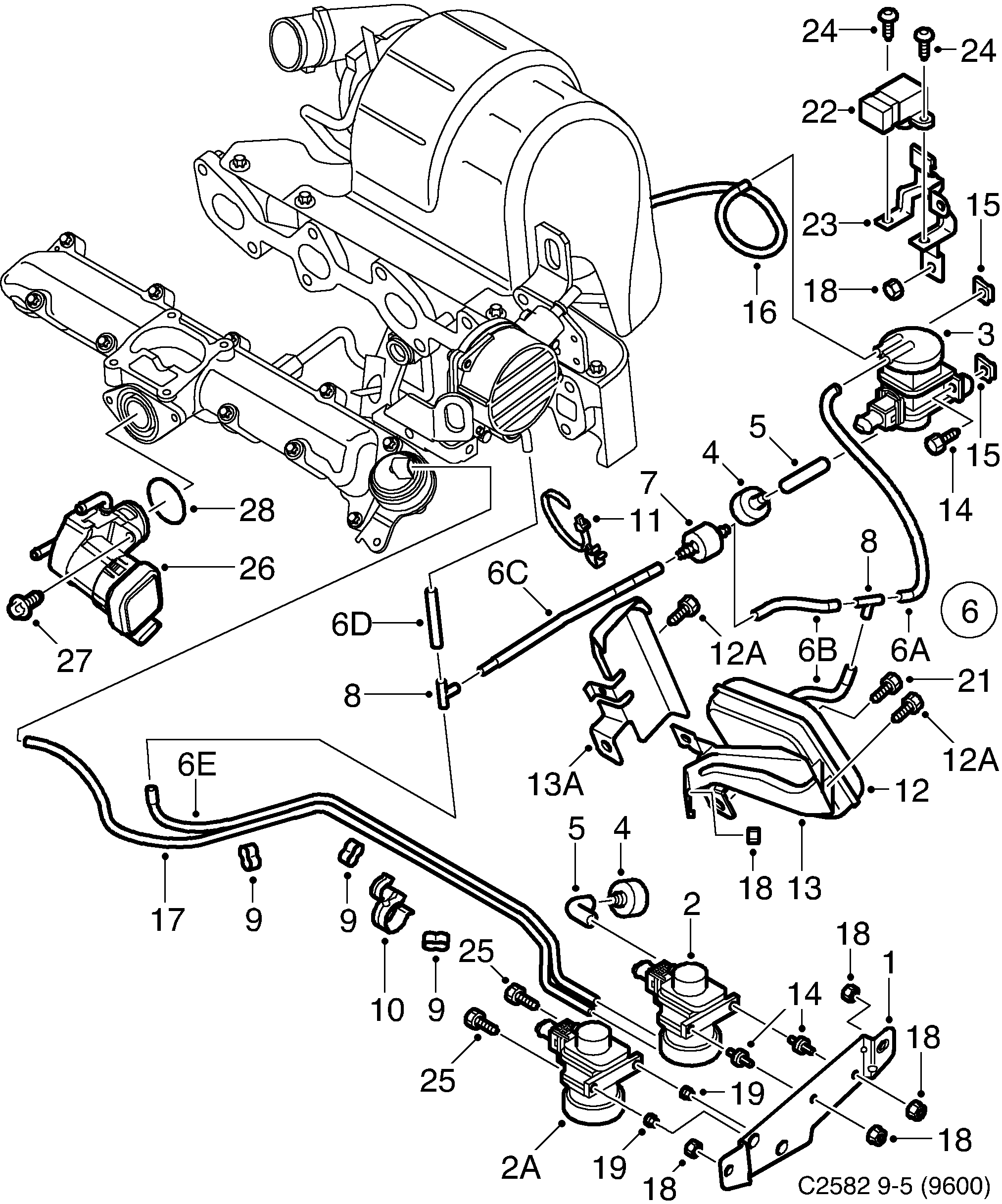

Group 2 Engine, section 865
| Pos | Article | Part No. |
|---|---|---|
| 1 | Bracket | 5340849 |
| 2 | Vacuum valve | 9128022 (replaces 4782058) |
| 2A | Vacuum valve | 55562854 (replaces 9189002) |
| 3 | Vacuum valve | 9158200 (replaces 4571964) |
| 4 | Filter | 90502861 (replaces 4678215) |
| 5 | Hose | 90572322 (replaces 4503488) |
| 6 | Vaccum hose | 5340765 |
| 6A | Vaccum hose | 9136243 |
| 7 | Check valve | 12793343 (replaces 4301669) |
| 8 | Pipe | 12791937 (replaces 8366791) |
| 6 | Vaccum hose | 5341839 |
| 6A | Vaccum hose | 5341755 |
| 9 | Clamp | 7398621 |
| 10 | Clamp | 7398530 |
| 10 | Clip | 4588695 |
| 11 | Tie strap | 7398977 |
| 12 | Vacuum tank | 90502721 (replaces 5340914) |
| 12A | Screw | 92153219 (replaces 7922354) |
| 13 | Bracket | 5340963 |
| 14 | Rubber spacer | 9281374 (replaces 4235768) |
| 13A | Heat shield | 5342910 |
| 15 | Clip | 8267098 |
| 18 | Nut | 11900451 (replaces 7977929) |
| 19 | Expanding nut | 7973456 |
| 22 | Sensor | 24426679 (replaces 5340799) |
| 23 | Bracket | 5340807 |
| 25 | Screw | 11900379 (replaces 7978380) |
| 26 | Exhaust gas recirculation valve | 93176989 (replaces 4774311) |
| 27 | Screw | 11095001 (replaces 5341458) |
| 28 | O-ring | 93172881 |
