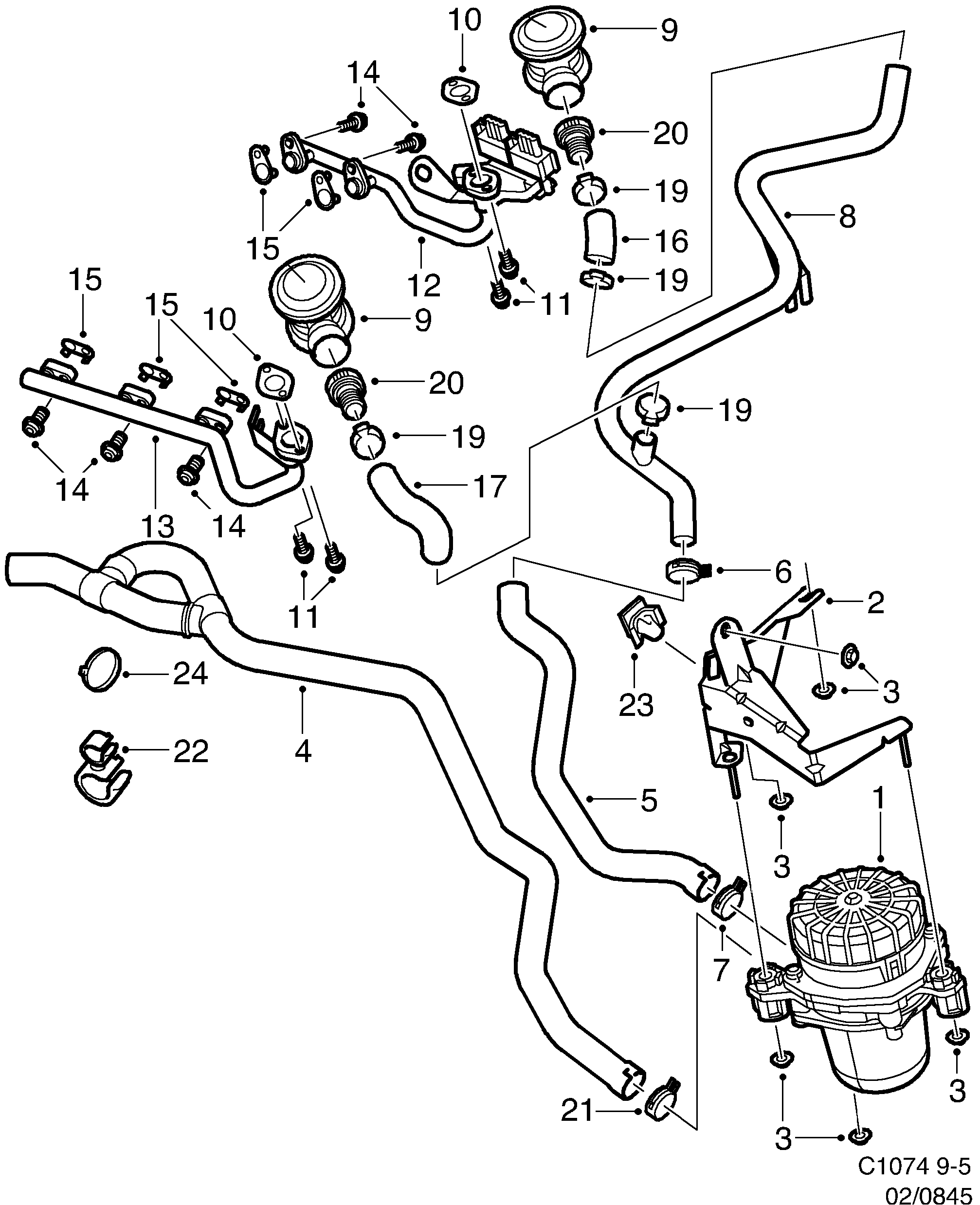

Group 2 Engine, section 845
| Pos | Article | Part No. |
|---|---|---|
| 1 | Air pump | 4571147 |
| 2 | Bracket | 5167739 |
| 3 | Nut | 12778389 (replaces 5071022) |
| 4 | Hose | 5380001 |
| 5 | Hose | 5167747 |
| 6 | Hose clamp | 90499504 |
| 7 | Hose clamp | 90572594 (replaces 4576609) |
| 8 | Tube | 5168299 |
| 9 | Secondary air injection air flow check valve | 12791285 (replaces 5380654) |
| 10 | Gasket | 90470423 (replaces 4571279) |
| 11 | Screw | 11900354 (replaces 7978109) |
| 12 | Tube | 4571121 |
| 13 | Tube | 30585567 (replaces 9192063) |
| 14 | Screw | 8059776 |
| 15 | Gasket | 5166053 |
| 16 | Hose | 4571261 |
| 17 | Hose | 5168281 |
| 19 | Hose clamp | 30585614 (replaces 5166509) |
| 20 | Snap-on coupling | 5166533 |
| 21 | Hose clamp | 90572595 (replaces 4960449) |
| 22 | Clamp | 7398530 |
| 23 | Clip | 4176095 |
| 24 | Tie strap | 11900513 (replaces 92150191) |
