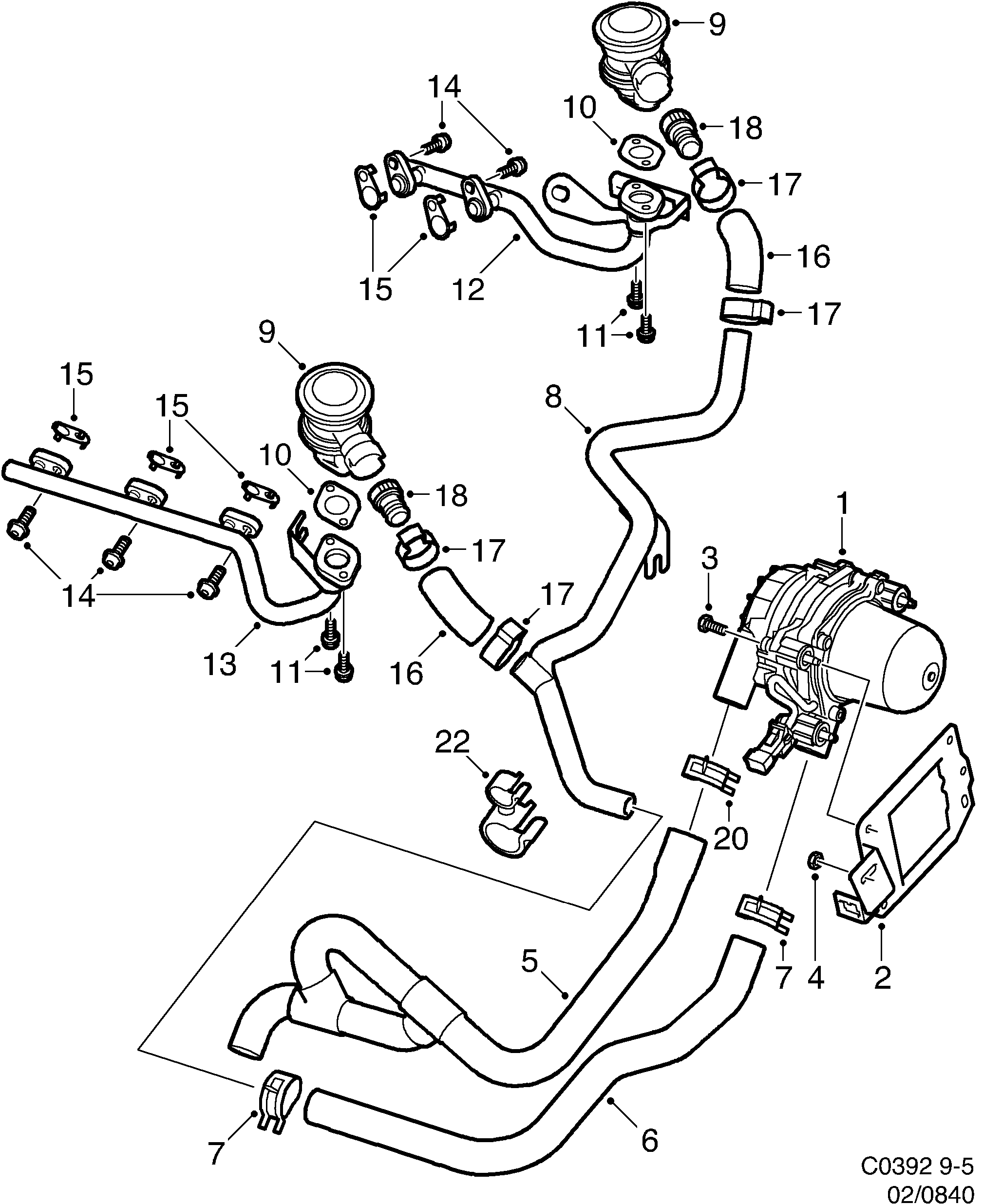

Group 2 Engine, section 840
| Pos | Article | Part No. |
|---|---|---|
| 1 | Air pump | 4571147 |
| 2 | Bracket | 4782363 |
| 3 | Screw | 7978166 |
| 4 | Nut | 11900451 (replaces 7977929) |
| 5 | Hose | 4571618 |
| 6 | Hose | 4571246 |
| 7 | Hose clamp | 90499504 |
| 7 | Hose clamp | 4966792 |
| 8 | Tube | 4571253 |
| 9 | Secondary air injection air flow check valve | 4571162 |
| 10 | Gasket | 90470423 (replaces 4571279) |
| 11 | Screw | 11900354 (replaces 7978109) |
| 12 | Tube | 4571121 |
| 13 | Tube | 30585567 (replaces 9192063) |
| 14 | Screw | 8059776 |
| 15 | Gasket | 5166053 |
| 16 | Hose | 4571261 |
| 17 | Hose clamp | 30585614 (replaces 5166509) |
| 18 | Snap-on coupling | 5166533 |
| 20 | Hose clamp | 90572595 (replaces 4960449) |
| 22 | Clamp | 7398530 |
