Saab 9-5 (9600) 1998-2003 Exhaust manifold Turbocharger

Group 2 Engine, section 830

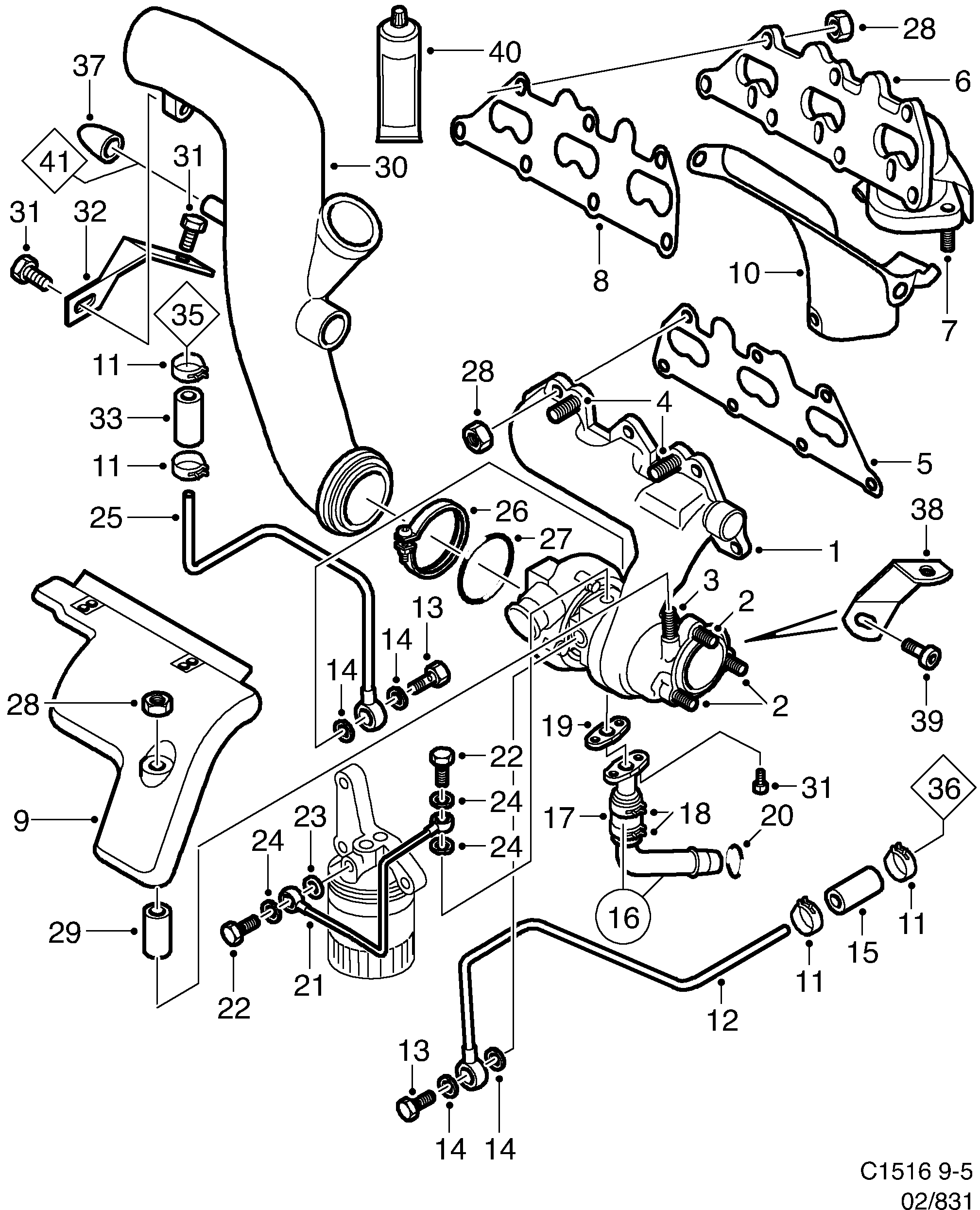

Saab 9-5 (9600) Exhaust manifold Turbocharger diagram

Pos	Article	Part No.
1	Exhaust manifold	90490382 (replaces 9180290)
1	Exhaust manifold	90490711 (replaces 9188913)
1	Exhaust manifold	90490711 (replaces 5955182)
2	Screw	90490326 (replaces 9357138)
3	Screw	9182114
4	Spring pin	8049827
5	Gasket	90490379 (replaces 9180357)
5	Gasket	90490614 (replaces 9188921)
6	Exhaust manifold	90490191 (replaces 4671608)
6	Exhaust manifold	5190814
7	Stud screw	11094672 (replaces 4503629)
8	Gasket	9128515 (replaces 4770954)
9	Heat shield	90490309 (replaces 9177064)
9	Heat shield	4968103
10	Heat shield	4443313
11	Hose clamp	90469888 (replaces 4620365)
11	Hose clamp	90530642 (replaces 4345385)
12	Tube	90490307 (replaces 9178674)
13	Banjo screw	90490325 (replaces 9143967)
14	Sealing ring	11016282 (replaces 4345716)
15	Hose	9179045
16	Tube	90490511 (replaces 9185455)
17	Hose	90490303 (replaces 9175829)
18	Hose clamp	4576591
19	Gasket	55563093 (replaces 9107582)
20	O-ring	90490336 (replaces 7985708)
21	Tube	90490298 (replaces 9174756)
21	Tube	90490298
22	Banjo screw	90490324 (replaces 9136524)
23	Seal	8326704
24	Gasket	11066422 (replaces 8124133)
25	Tube	90490306 (replaces 9174772)
26	Clamp	55559479 (replaces 9178666)
27	O-ring	90490362
28	Nut	11082413 (replaces 4503538)
28	Lock nut	55557005 (replaces 7965767)
29	Spacer sleeve	9306812
30	Tube	90490294 (replaces 9174749)
30	Tube	90490745 (replaces 9198979)
31	Screw	11093881 (replaces 4503405)
32	Brace	90490297 (replaces 9175522)
33	Hose	9179409
37	Plug	30580035 (replaces 9192394)
38	Brace	90490308 (replaces 9174780)
38	Brace	5955281
39	Screw	11095761 (replaces 9483827)
39	Screw	11095071 (replaces 5955315)
40	Flange sealant	90542114 (replaces 4772315)
