Saab 9-5 (9600) 1998-2010 Exhaust manifold

Group 2 Engine, section 820

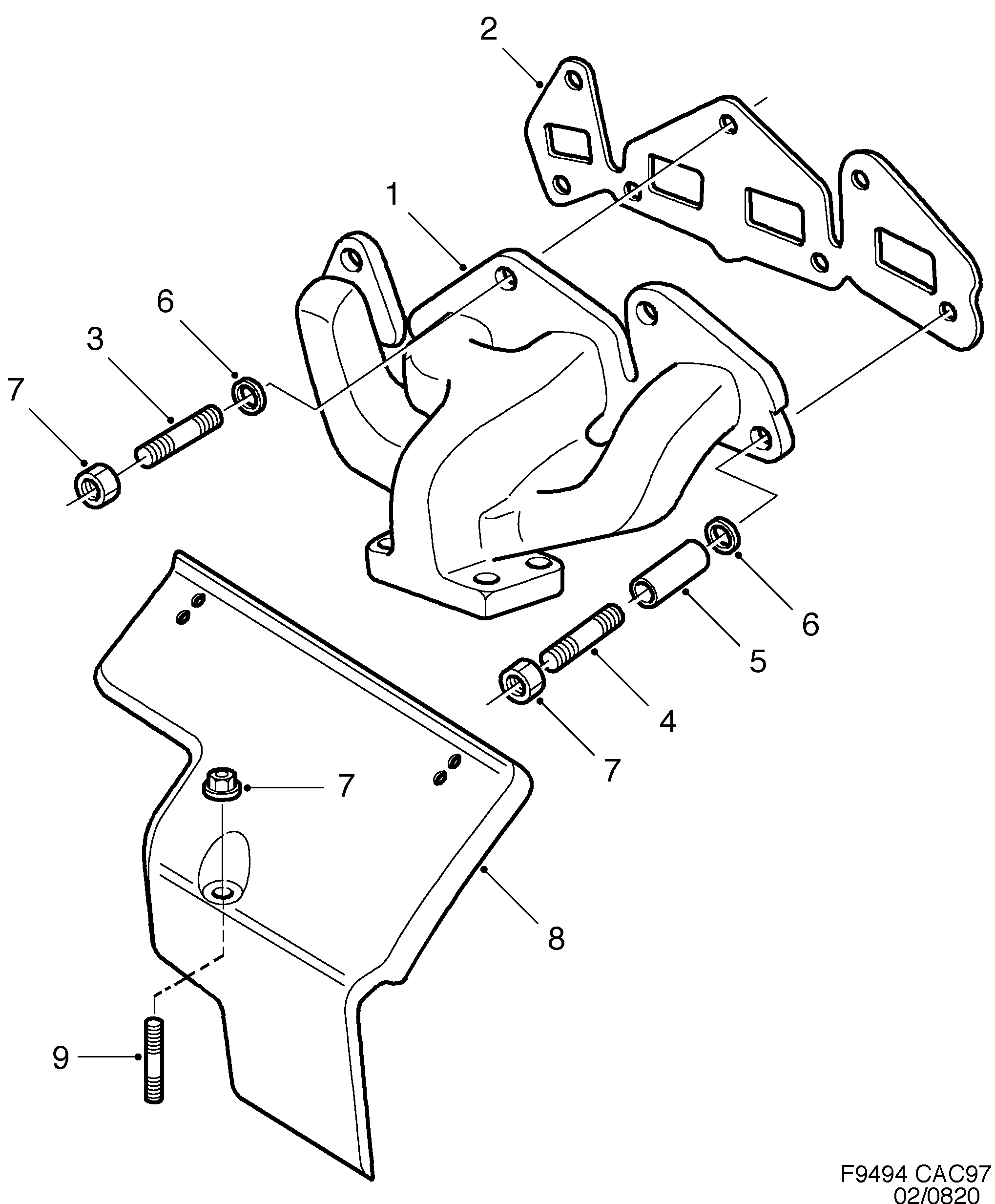

Saab 9-5 (9600) Exhaust manifold diagram

Pos	Article	Part No.
1	Exhaust manifold	9176900
2	Gasket	55557285 (replaces 9166497)
2	Gasket	55557285
3	Stud screw	92151352 (replaces 7985146)
3	Stud	92151352
4	Stud screw	92151353 (replaces 7985161)
4	Stud	92151353
5	Spacer sleeve	9306812
5	Spacer bushing	90490455
6	Washer	55564926 (replaces 8073249)
6	Washer	55564926 (replaces 92153039)
6	Washer	55564926
7	Nut	11516076 (replaces 9169277)
7	Nut	11516076 (replaces 55557286)
7	Nut	11516076
7	Lock nut	55557005
8	Heat shield	9176223
9	Screw	90490326 (replaces 9357138)
9	Stud	90490326
