Saab 9-5 (9600) 1998-2010 ELCD

Group 2 Engine, section 700

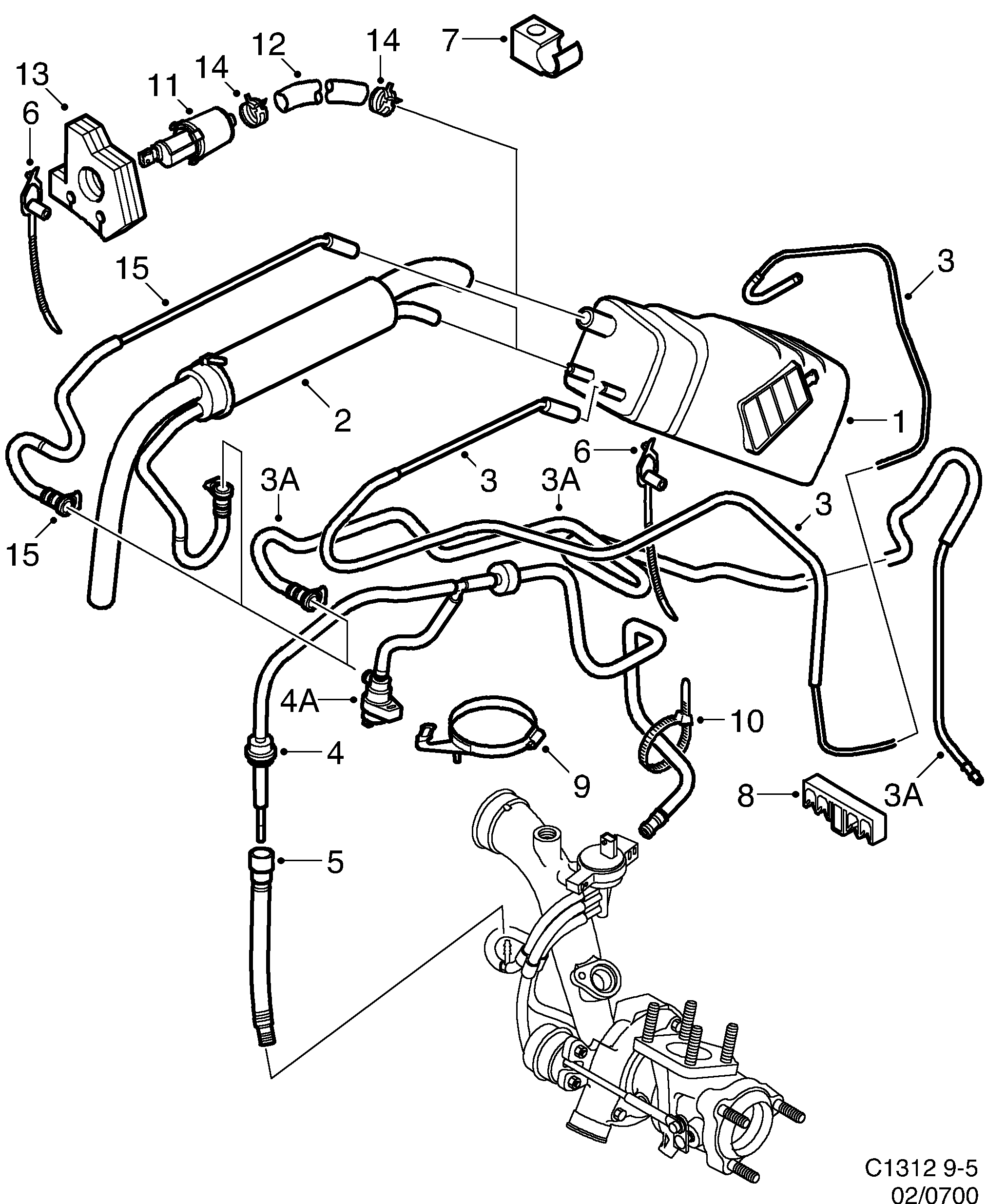

Saab 9-5 (9600) ELCD diagram

Pos	Article	Part No.
1	Charcoal canister	4672556
2	Evacuation pipe	4396149
2	Evacuation pipe	5322151
3	Tube	4396099
3A	Tube	4897930
3A	Tube	5325410
4	Evacuation pipe	4572129
4A	EVAP canister purge valve	4670477
4	Evacuation pipe	5322169
4	Evacuation pipe	55556492 (replaces 5344833)
4	Pipe	55556492
4	Pipe	55560311
4	Evacuation pipe	4572202
4	Evacuation pipe	5322185
5	Evacuation pipe	4752382
5	Evacuation pipe	4729323
6	Tie strap	4807939
7	Clamp	90159758 (replaces 4671756)
7	Clamp	90159758
8	Clamp	4671541
10	Tie strap	11900513 (replaces 92150191)
10	Tie strap	11900513
11	Shut-off valve	4899811
12	Hose	4577037
13	Bracket	4572160
14	Hose clamp	7974009
15	Evacuation pipe	4897906
