Saab 9-5 (9600) 2006-2010 Injection pump Injection valve

Group 2 Engine, section 663

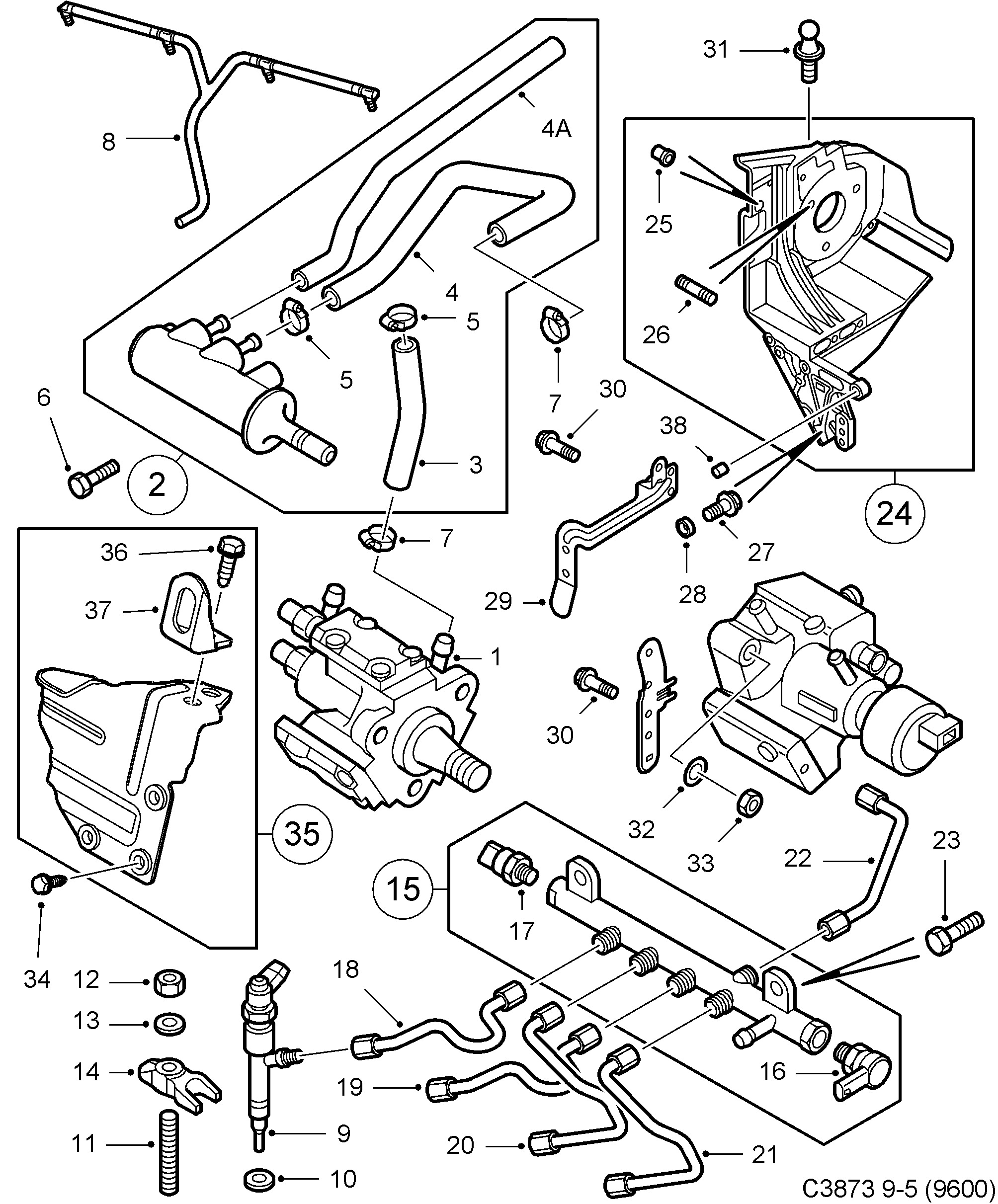

Saab 9-5 (9600) Injection pump Injection valve diagram

Pos	Article	Part No.
1	Injection pump	93190244 (replaces 93188709)
1	Injection pump	93190244
1	Injection pump	93191709
1	Injection pump	93190245 (replaces 93188710)
1	Injection pump	93190245
1	Injection pump	93191710
2	Reservoir	55204031
2	Reservoir	55573520 (replaces 55569286)
3	Hose	93184685
4	Hose	93180741
4A	Hose	55573521 (replaces 55196335)
4A	Hose	55573521 (replaces 93167079)
4A	Hose	55573521
5	Hose clamp	93177692
6	Screw	93178984
8	Hose	55566677
9	Injector	55198218
10	Gasket	93178683
11	Stud	93179050
12	Nut	93177333
13	Washer	93179049
14	Bracket	93179048
15	Fuel rail	93192283 (replaces 93185539)
15	Distribution pipe	93192283
16	Pressure regulator	93181654
17	Sensor	93185626
18	Fuel pipe	93179045
18	Fuel pipe	93191392
19	Fuel pipe	93191391 (replaces 93179044)
19	Fuel pipe	93191391
20	Fuel pipe	93191393 (replaces 93179043)
20	Fuel pipe	93191393
21	Fuel pipe	93191390 (replaces 93179042)
21	Fuel pipe	93191390
22	Injection pipe	55215517 (replaces 93179046)
22	Pipe	55215517
23	Screw	93178829
24	Bracket	55196096
25	Bushing	93178844
25	Sleeve nut	93190054
26	Stud	93182444
27	Screw	93178847
27	Hexagon screw	12855322
27	Screw	93182452
28	Washer	93179080
29	Bracket	93184681
30	Screw	93179333
31	Ball stud	55560110
32	Washer	93178879
33	Nut	93178880
34	Screw	11900354
35	Protecting plate	55559691
35	Protecting sleeve	55565846
36	Screw	11900365
37	Lifting eye	55187743
38	Screw plug	93178469
