Saab 9-5 (9600) 2002-2005 Injection pump Injection valve

Group 2 Engine, section 655

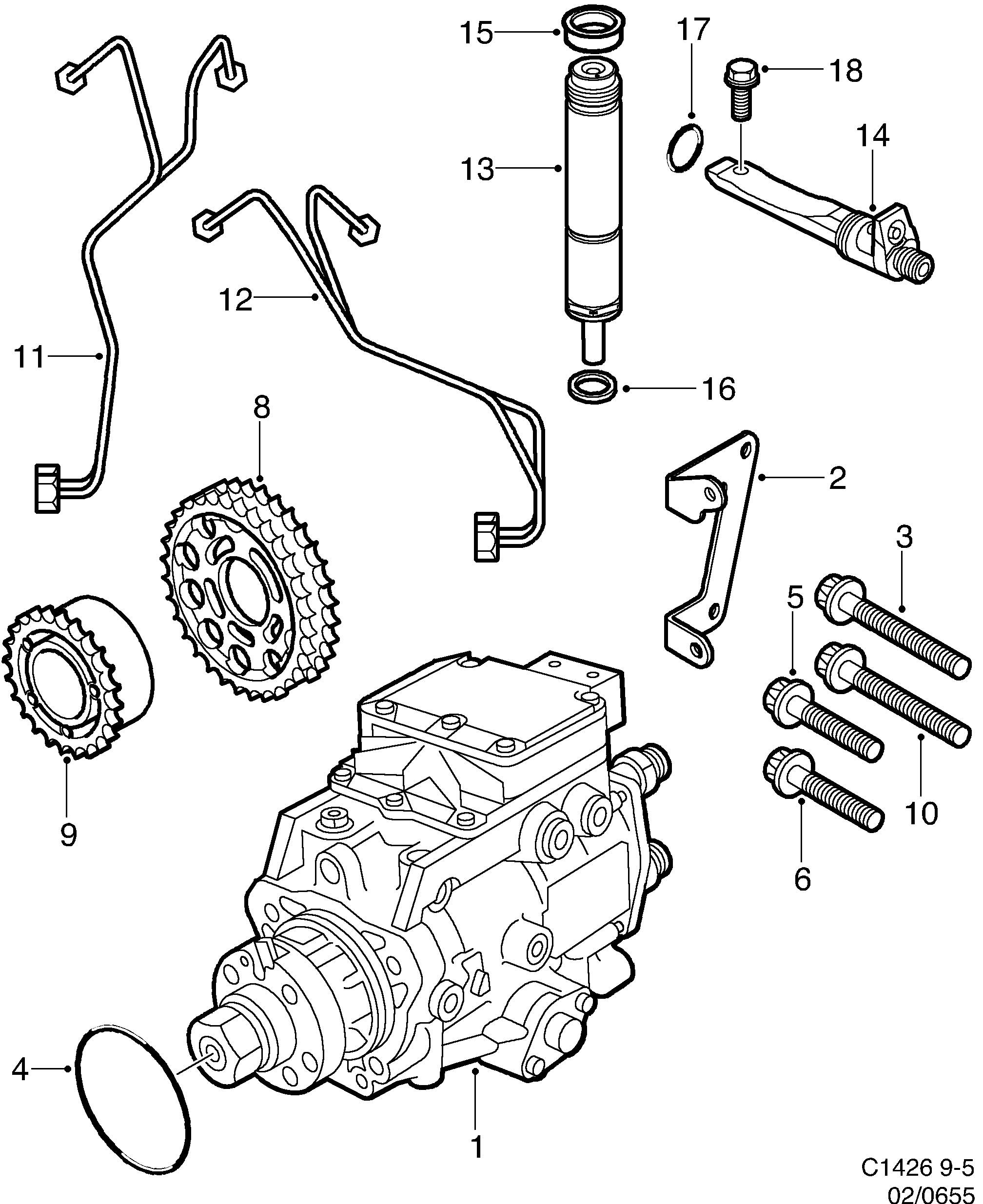

Saab 9-5 (9600) Injection pump Injection valve diagram

Pos	Article	Part No.
1	Injection pump	93173725
1	Injection pump	93174504
2	Bracket	9202068 (replaces 9544032)
3	Screw	90502873 (replaces 9543992)
4	Seal	24416344 (replaces 9544040)
5	Screw	11096811 (replaces 4773156)
6	Screw	11095071 (replaces 9544057)
8	Chain gear	24410175 (replaces 9544065)
9	Chain gear	90500699 (replaces 4773297)
10	Screw	11096483 (replaces 9544081)
11	Injection pipe	55353028 (replaces 9544198)
12	Injection pipe	55353029 (replaces 9544206)
13	Injector	9200844 (replaces 5342423)
13	Injector	93175914
14	Carrier	90573868 (replaces 9542911)
15	Seal	90502704 (replaces 9542903)
16	Seal	9117693 (replaces 9542895)
17	O-ring	90500732 (replaces 9542929)
18	Screw	11096852 (replaces 9542937)
