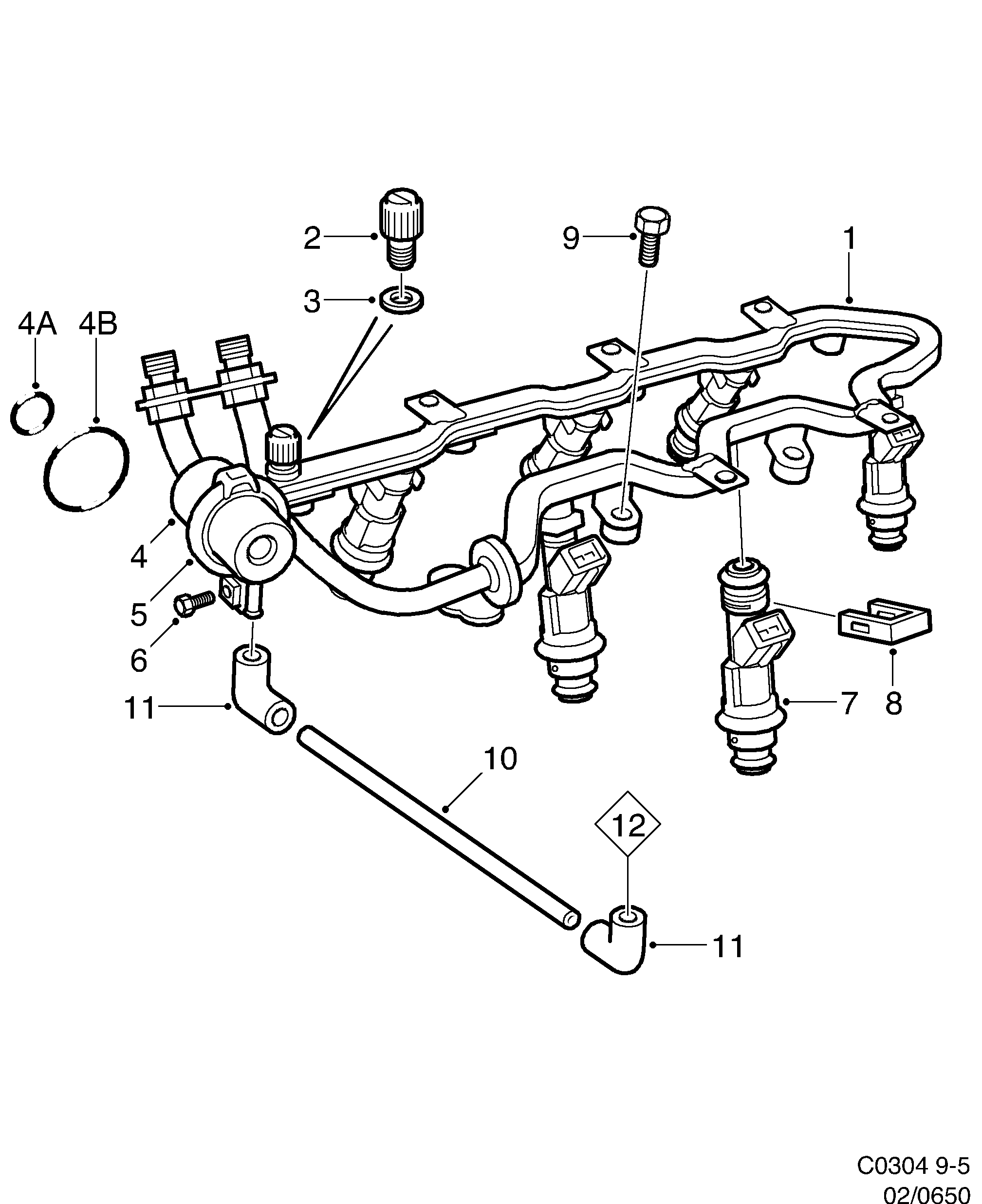

Group 2 Engine, section 650
| Pos | Article | Part No. |
|---|---|---|
| 1 | Fuel rail | 90412460 (replaces 4503728) |
| 2 | Valve | 4503744 |
| 3 | Washer | 4503751 |
| 4 | Fuel pressure regulator | 4770400 |
| 4 | Fuel pressure regulator | 9118850 (replaces 4773966) |
| 4 | Fuel pressure regulator | 9118850 (replaces 9483538) |
| 4A | Washer | 90511960 |
| 4B | O-ring | 90511961 |
| 5 | Clamp | 9542424 (replaces 4503819) |
| 5 | Clamp | 9542424 |
| 6 | Screw | 11097861 (replaces 4770962) |
| 7 | Injector | 5959622 (replaces 4770392) |
| 7 | Injector | 5959622 |
| 8 | Spring clamp | 4503785 |
| 9 | Screw | 11093881 (replaces 4503405) |
| 9 | Screw | 11096811 (replaces 4773156) |
| 10 | Vacuum pipe | 4504908 |
| 11 | Hose | 90572322 (replaces 4503488) |
