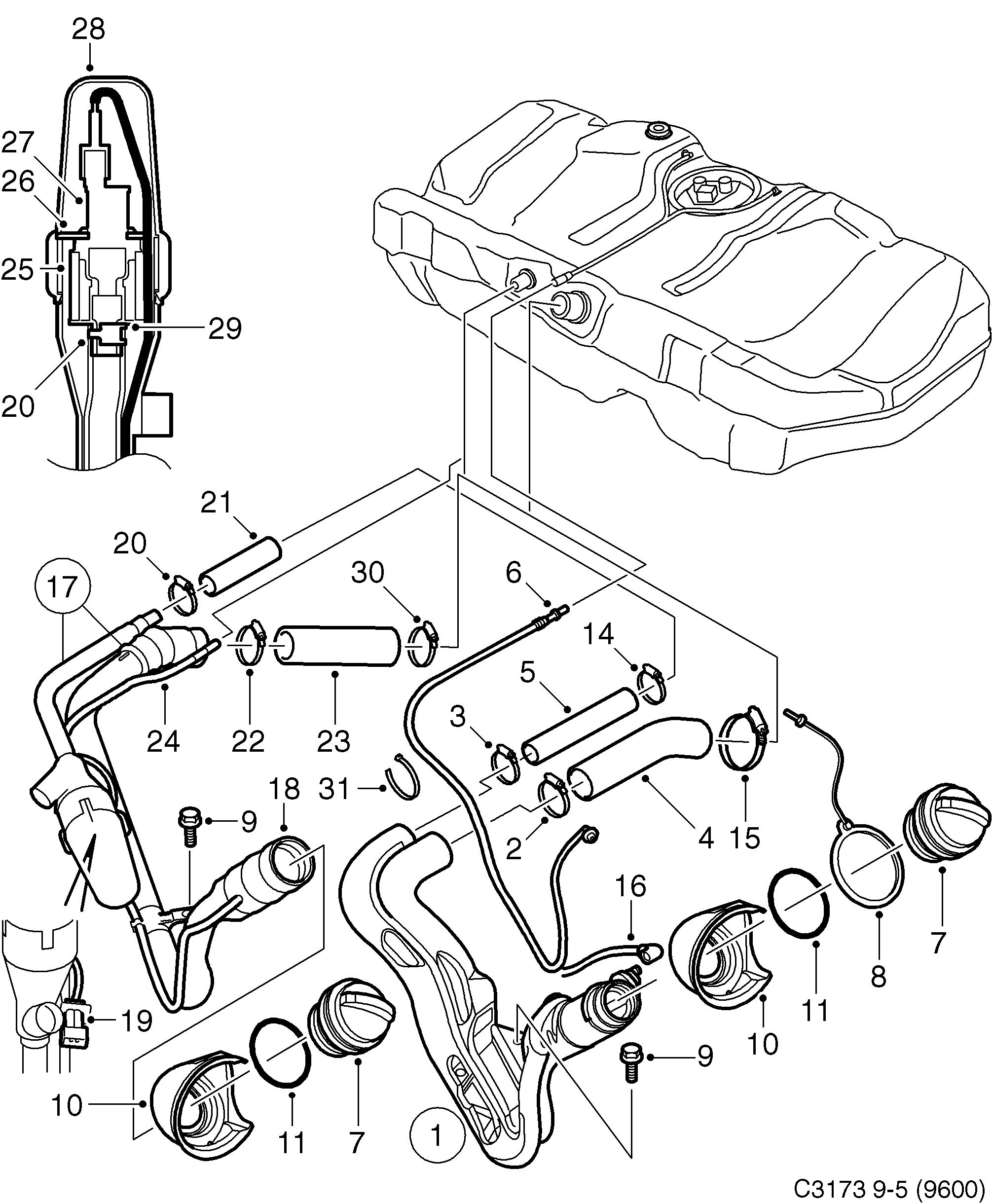

Group 2 Engine, section 555
| Pos | Article | Part No. |
|---|---|---|
| 1 | Filler pipe | 5462296 (replaces 4572038) |
| 1 | Filler pipe | 5462296 (replaces 4967667) |
| 1 | Filler pipe | 5462296 (replaces 5193099) |
| 1 | Filler pipe | 5462270 |
| 1 | Filler pipe | 4967683 (replaces 4572020) |
| 1 | Filler pipe | 4967683 |
| 1 | Filler pipe | 4967675 |
| 2 | Hose clamp | 4940029 |
| 3 | Hose clamp | 4940011 |
| 4 | Hose | 5329594 (replaces 4574208) |
| 4 | Hose | 5329594 (replaces 4574232) |
| 4 | Hose | 5329594 |
| 5 | Hose | 4574216 |
| 5 | Hose | 4574240 |
| 5 | Hose | 5464904 |
| 6 | Vent hose | 4574257 |
| 7 | Filler cap | 4727038 |
| 7 | Filler cap | 10372246 |
| 7 | Filler cap | 5192505 |
| 8 | Strap | 32000266 (replaces 5193925) |
| 9 | Screw | 92152212 (replaces 4940896) |
| 9 | Torx screw | 11900013 |
| 10 | Seal | 4726329 |
| 10 | Seal | 4726295 |
| 11 | Ring | 4577680 |
| 17 | Filler pipe | 5462288 (replaces 4899407) |
| 17 | Filler pipe | 5462288 |
| 17 | Filler pipe | 4968798 |
| 18 | Filler pipe | 4969358 |
| 18 | Filler pipe | 4965778 |
| 19 | Connection | 4965596 |
| 20 | Hose clamp | 90467194 (replaces 4576583) |
| 21 | Snap-on coupling | 4965869 |
| 22 | Hose clamp | 4441697 |
| 23 | Hose | 4965570 |
| 24 | Vent hose | 4965851 |
| 25 | Filter | 4729109 |
| 26 | Washer | 4728523 |
| 27 | Shut-off valve | 4966826 |
| 28 | Cover | 4728515 |
| 29 | Filter retainer | 4728531 |
| 31 | Tie strap | 30507607 |
