Saab 9-5 (9600) 2006-2010 Fuel tank Fuel filter

Group 2 Engine, section 553

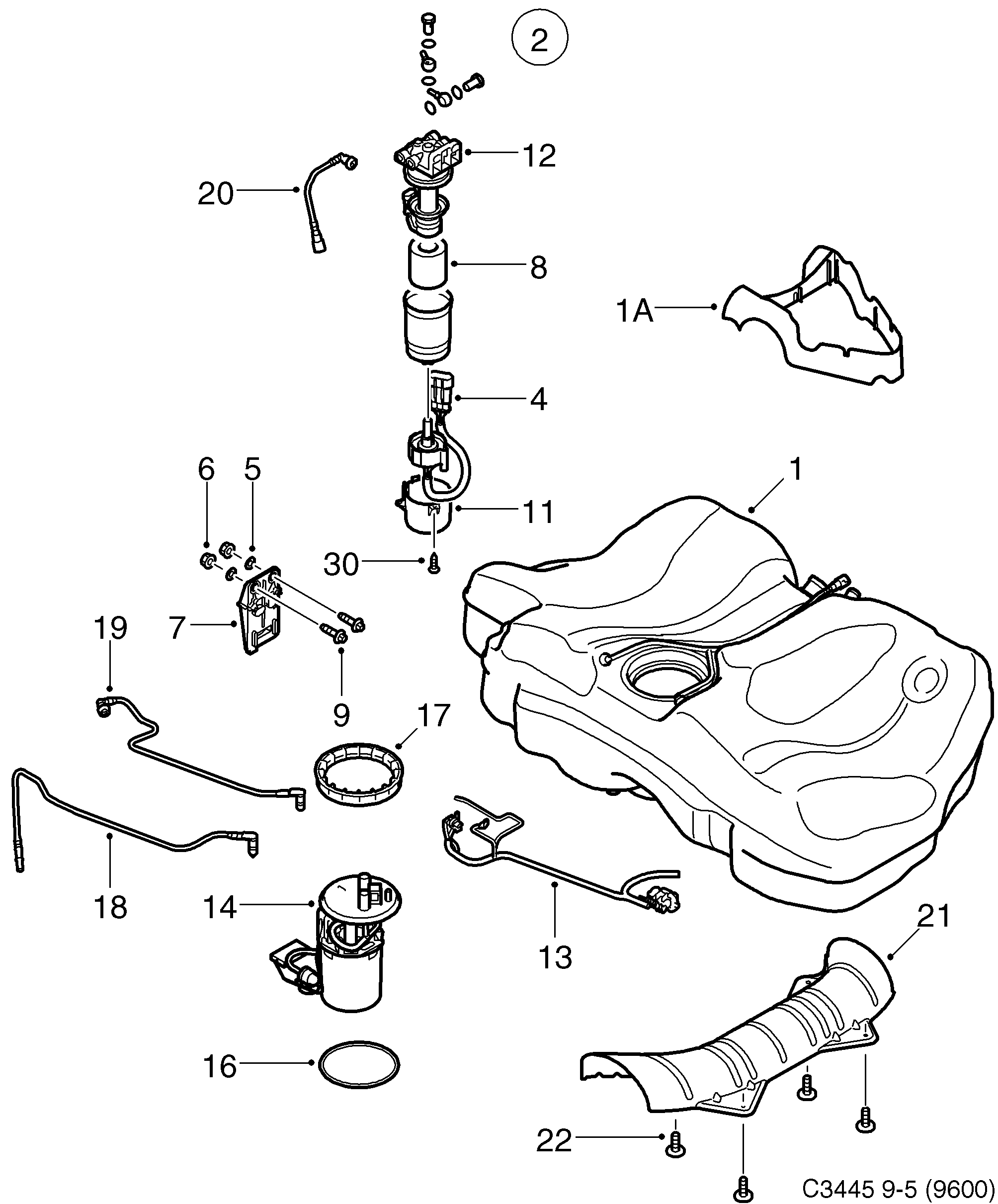

Saab 9-5 (9600) Fuel tank Fuel filter diagram

Pos	Article	Part No.
1	Fuel reservoir	12780804 (replaces 12756185)
1	Fuel reservoir	12780804
1	Fuel reservoir	12758367
1	Fuel reservoir	12780805
1A	Baffle	12766013
2	Fuel filter	12756723
4	Sensor	12762673
5	Washer	92153034
6	Nut	11900441
7	Plate	12766069
8	Fuel filter	12762671
9	Screw	11900028
11	Protecting cover	12762674
30	Screw	11900492
13	Cable harness	12759727
14	Fuel pump	93166801 (replaces 12759734)
14	Fuel pump	93166802 (replaces 12759736)
16	Seal	4160511
17	Cover	4156550
18	Return line	12759719
19	Fuel pipe	12759717
20	Fuel pipe	12759718
21	Heat shield	4574349
22	Screw	9128429
