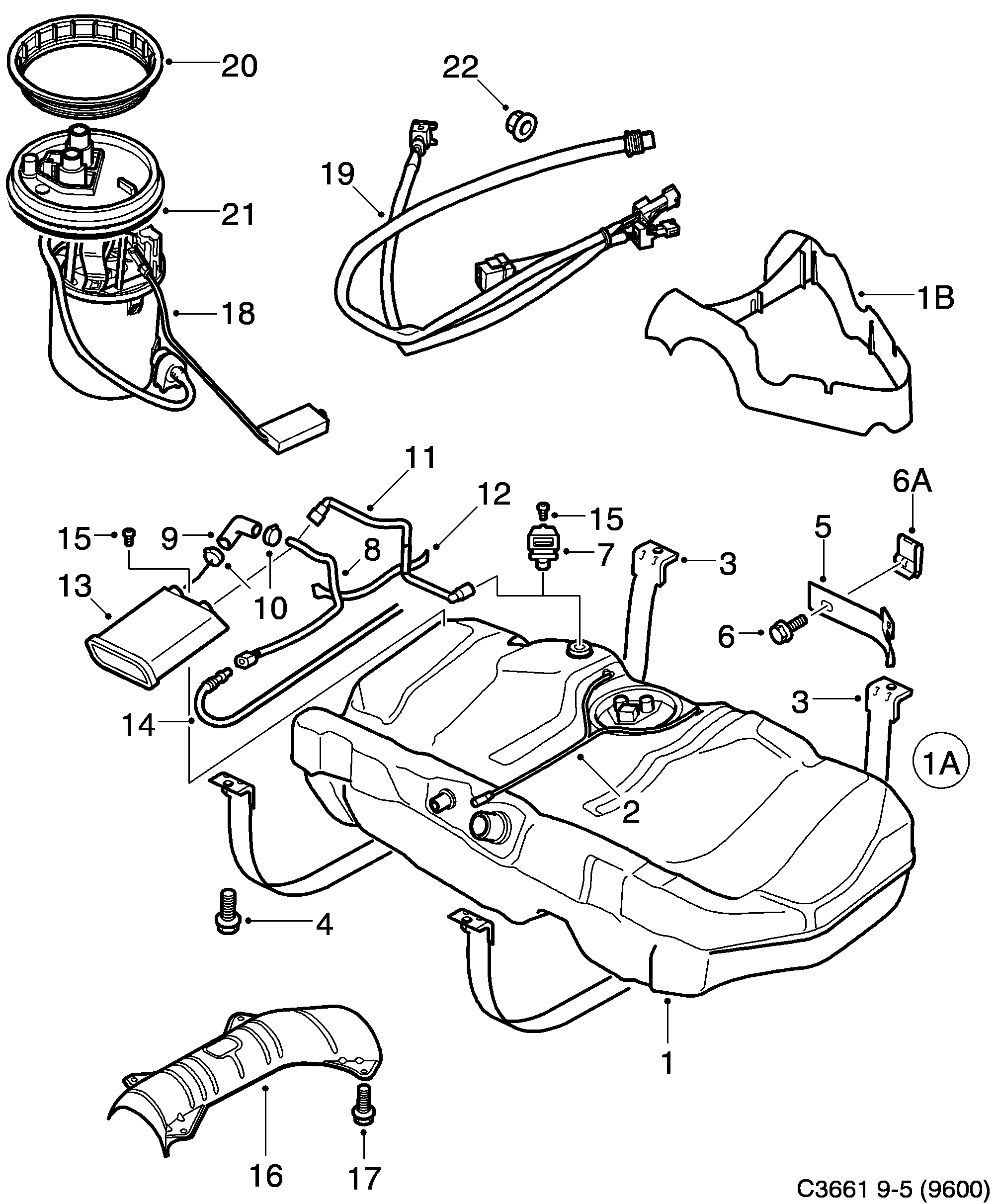

Group 2 Engine, section 547
| Pos | Article | Part No. |
|---|---|---|
| 1 | Tank | 5192802 (replaces 4574026) |
| 1B | Baffle | 12766013 (replaces 5329016) |
| 1A | Fuel reservoir | 12780946 (replaces 12777432) |
| 1A | Fuel reservoir | 12780946 |
| 16 | Heat shield | 4574349 |
| 17 | Screw | 4752168 |
| 18 | Fuel pump | 5462460 |
| 18 | Control unit | 12780945 |
| 19 | Connection | 4393195 |
| 20 | Cover | 4156550 |
| 21 | Seal | 4160511 |
| 22 | Nut | 11900451 |
| 1 | Tank | 5192802 |
| 1B | Baffle | 12766013 |
| 2 | Hose | 4576757 |
| 1 | Tank | 4896643 |
| 1 | Tank | 4897054 |
| 1 | Tank | 5192737 |
| 3 | Tie strap | 4572087 |
| 4 | Screw | 7985773 |
| 4 | Torx screw | 11900487 |
| 5 | Bracket | 5336466 (replaces 4895140) |
| 5 | Bracket | 5336466 |
| 6 | Hexagon screw | 7978661 |
| 6 | Screw | 7973068 |
| 6A | Clip | 9236753 |
| 6A | Clip | 11094002 |
| 7 | Charge Air Absolute Pressure Sensor | 4727186 |
| 7 | Charge Air Absolute Pressure Sensor | 30589495 (replaces 5196365) |
| 8 | Hose | 4897351 |
| 9 | Hose | 4897377 |
| 10 | Hose clamp | 90467194 (replaces 4576583) |
| 11 | Vent hose | 4897500 |
| 12 | Tie strap | 7971872 |
| 13 | Evaporative emission canister | 4968509 |
