Saab 9-5 (9600) 2006-2010 Air cleaner With water separator

Group 2 Engine, section 545

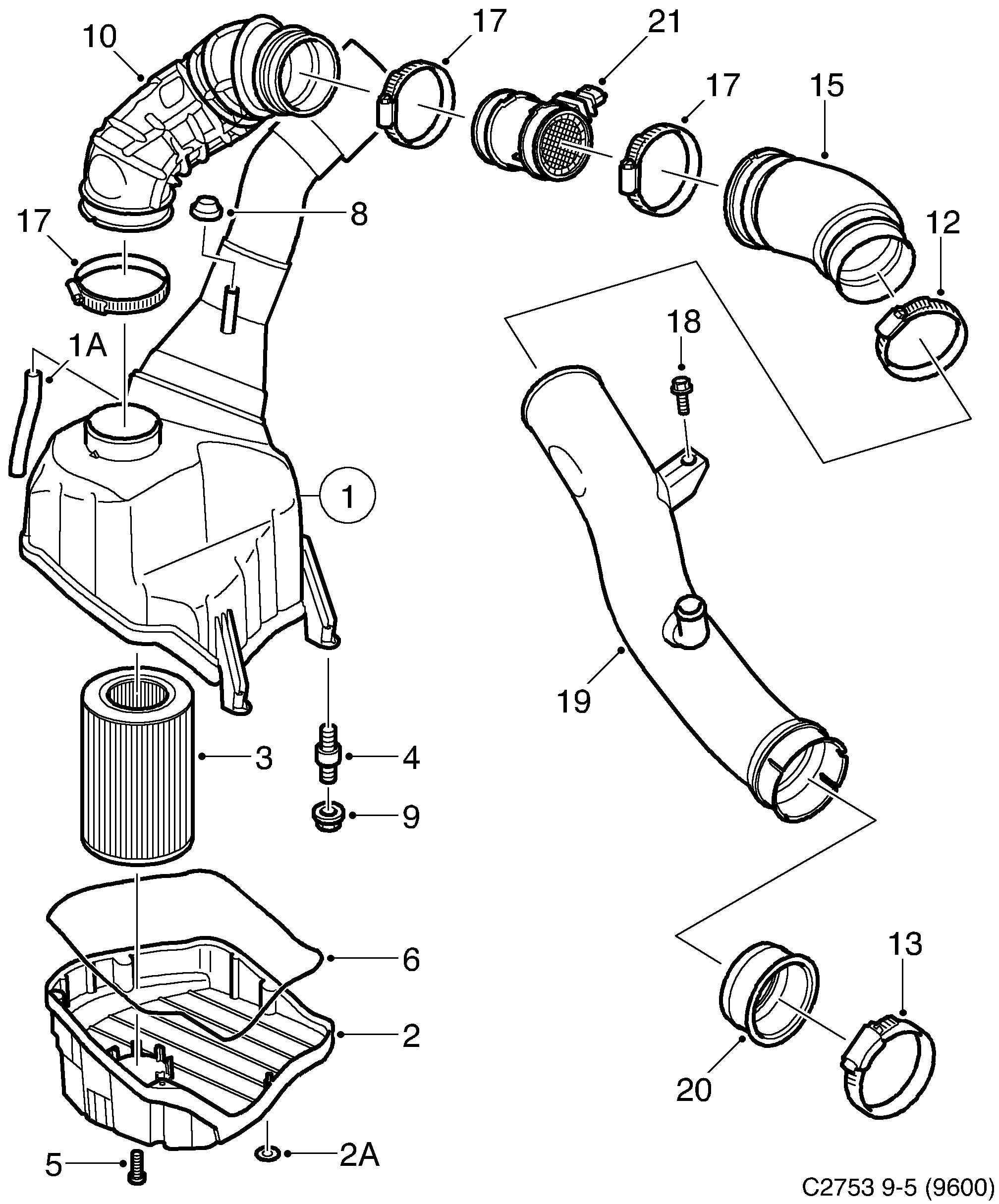

Saab 9-5 (9600) Air cleaner With water separator diagram

Pos	Article	Part No.
1	Air cleaner housing	5464086
	Air cleaner housing	5466388
1A	Hose	5465661
2	Cover	5465182
2A	Diaphragm	4896577
3	Air filter	5465653
4	Rubber mounting	24420111
5	Screw	4671871
6	O-ring	5465208
8	Rubber bushing	7512593
9	Hexagon nut	11089471 (replaces 4345138)
9	Nut	11089471
10	Air duct	55558781
12	Hose clamp	24415471
12	Clamp	92153080
13	Hose clamp	24415470
15	Hose	12755945
17	Hose clamp	92150224
18	Screw	55566034 (replaces 7978190)
19	Hose	12755946
20	Gasket	55352726
21	Mass air flow sensor	93178243
