Saab 9-5 (9600) 2006-2010 Crank case ventilation

Group 2 Engine, section 515

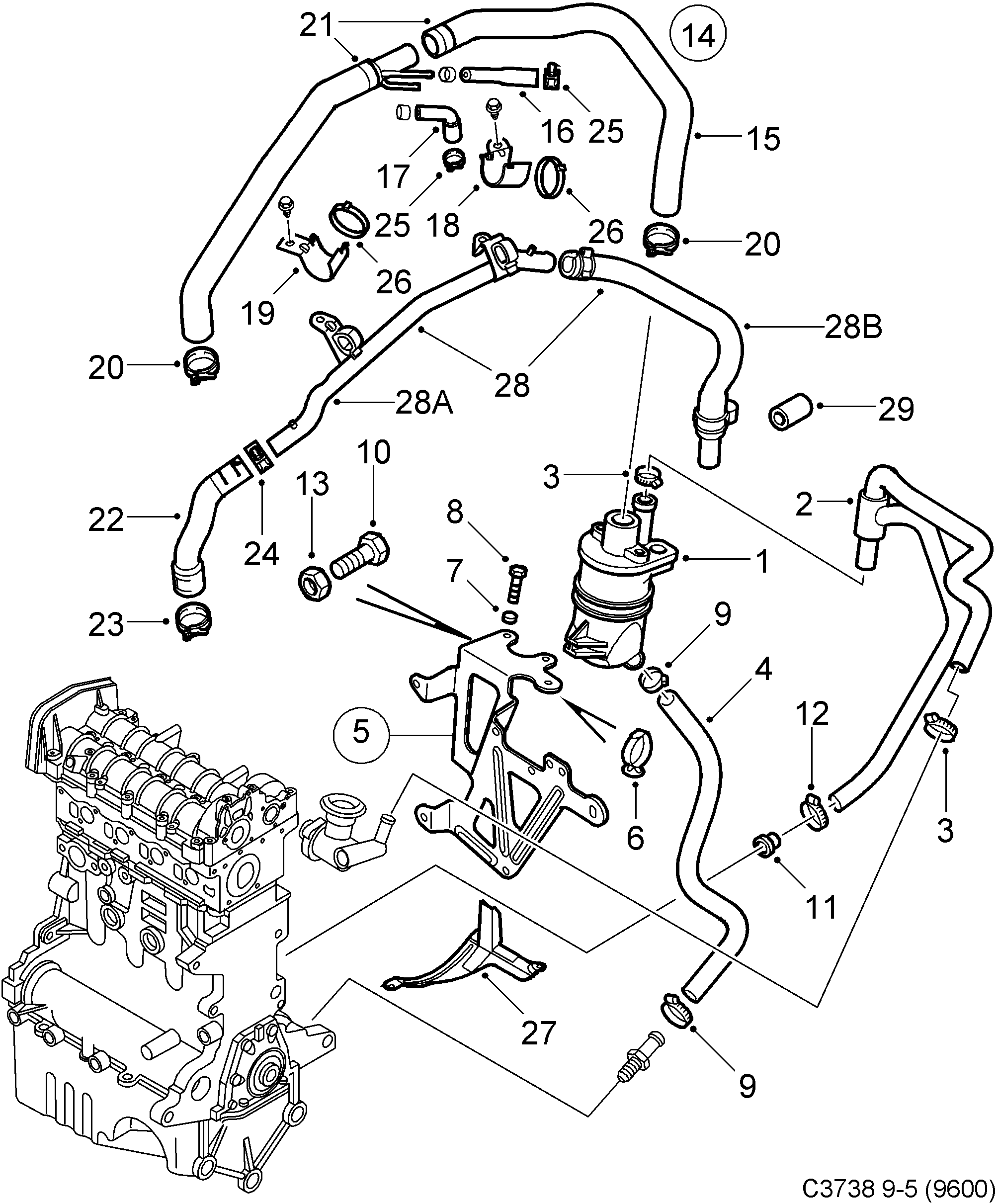

Saab 9-5 (9600) Crank case ventilation diagram

Pos	Article	Part No.
1	Oil trap	55217793 (replaces 93179199)
1	Oil separator	55192366
1	Oil separator	55217795
2	Hose	93179200
3	Hose clamp	93179201
4	Hose	55199390
5	Bracket	93179203
6	Hose clamp	93179204
7	Washer	93179205
8	Screw	93183430
9	Hose clamp	93179207
10	Screw	93177489
10	Screw	93177417
11	Fitting	55574449
12	Hose clamp	93179209
13	Nut	93179210
14	Pipe	55559053
14	Pipe	55566851
15	Pipe	55559058
16	Hose	55559059
17	Hose	55559060
18	Bracket	55559063
19	Bracket	55559056
20	Hose clamp	90499093
21	Hose clamp	92152409
22	Hose	55351569
23	Hose clamp	90572594
24	Hose clamp	90467194
25	Hose clamp	90530642
26	Tie strap	11900512
27	Baffle	55565118
28	Hose	93184683
28A	Hose	55207543
28B	Hose	55209237
29	Cap blanking	55567315
