Saab 9-5 (9600) 1998-2003 Crank case ventilation

Group 2 Engine, section 500

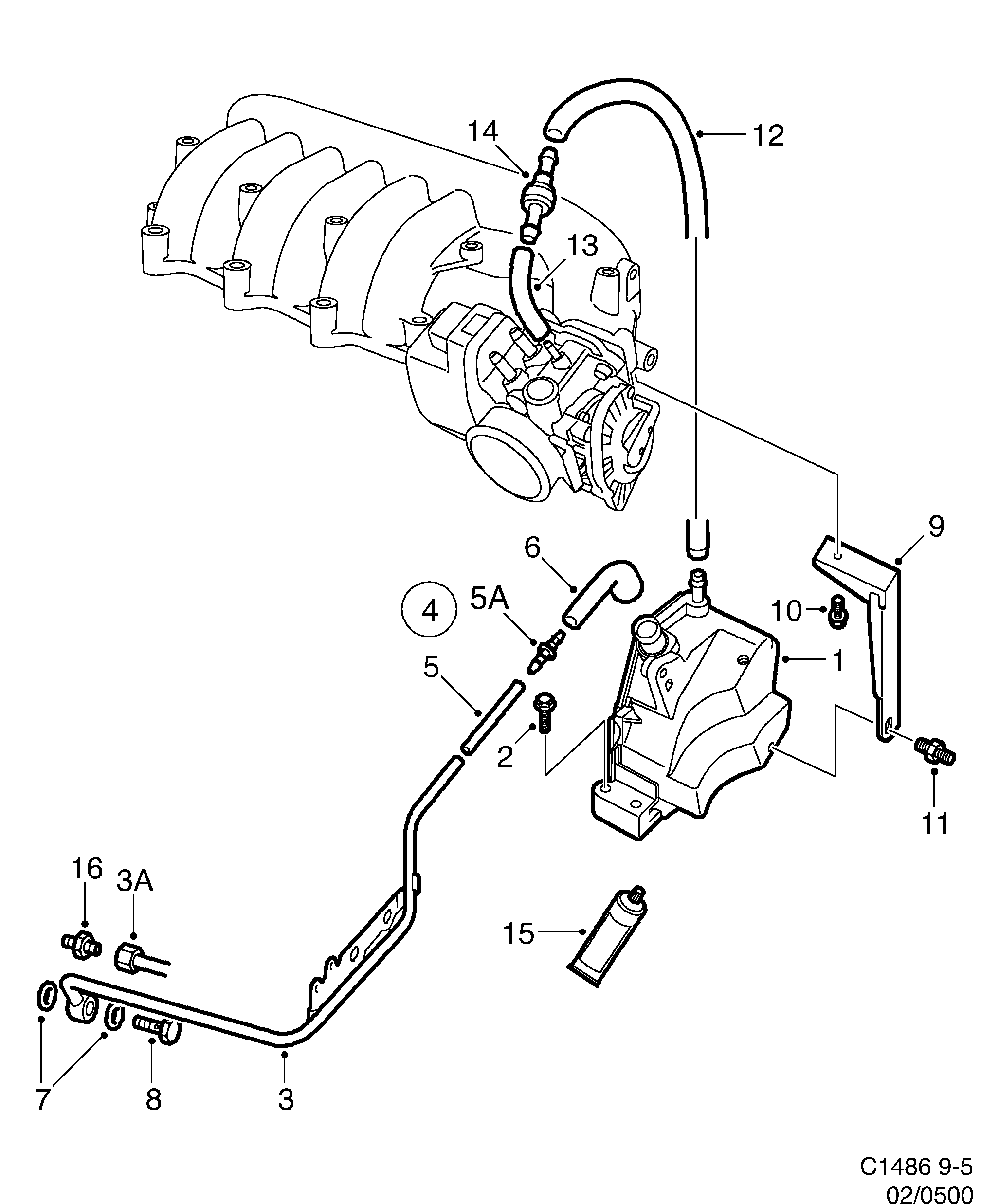

Saab 9-5 (9600) Crank case ventilation diagram

Pos	Article	Part No.
1	Positive crankcase ventilation valve	90490560 (replaces 9187105)
2	Screw	11093953 (replaces 4770020)
3	Hose	9187154
3A	Hose	9189051
4	Hose	90490562 (replaces 9187121)
5	Tube	9187139
5A	Nipple	9187147
6	Hose	4527222
7	Sealing ring	4621413
8	Hollow screw	90500651 (replaces 4621397)
9	Bracket	90490561 (replaces 9187113)
10	Screw	11093881 (replaces 4503405)
11	Screw	90325554
12	Hose	9136243 (replaces 9182874)
13	Hose	90324140
14	Positive crankcase ventilation valve	9189564 (replaces 7521313)
14	Positive crankcase ventilation valve	9189564
15	Flange sealant	93165267 (replaces 4770202)
16	Nipple	11099072 (replaces 4774022)
