Saab 9-5 (9600) 2004-2010 Crank case ventilation

Group 2 Engine, section 485

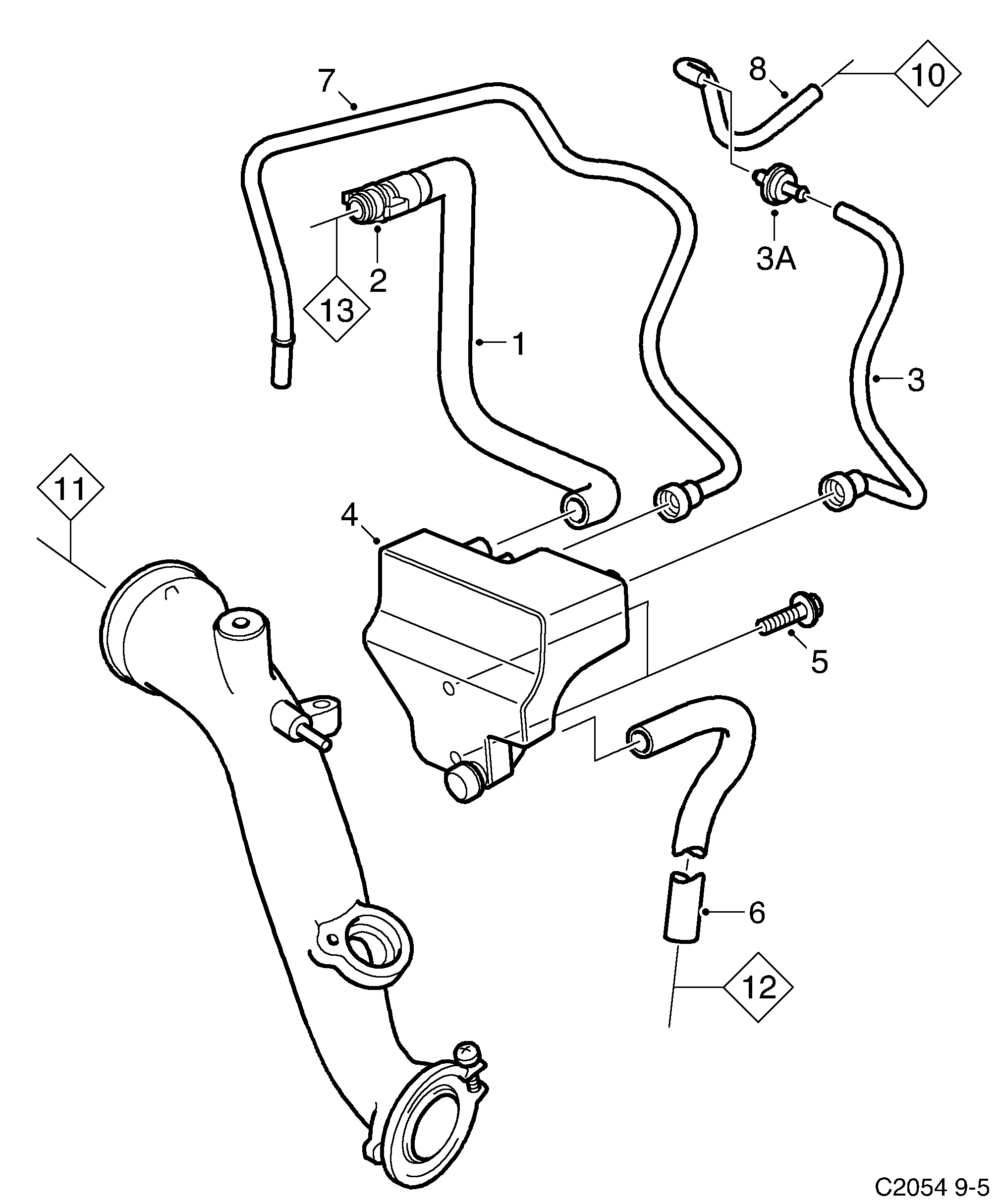

Saab 9-5 (9600) Crank case ventilation diagram
PosArticlePart No.
1Hose5955919
1Hose55355330
2O-ring7989205
3Hose5955927
4Oil trap12755243 (replaces 9549213)
4Oil trap12755243 (replaces 55558696)
4Oil separator12755243
5Screw11900367
6Hose55560445 (replaces 9172115)
6Hose55560445
7Hose5961552
7Hose5961610
8Hose55557709 (replaces 9549528)
8Hose55557709
