Saab 9-5 (9600) 1998-2003 Crank case ventilation

Group 2 Engine, section 480

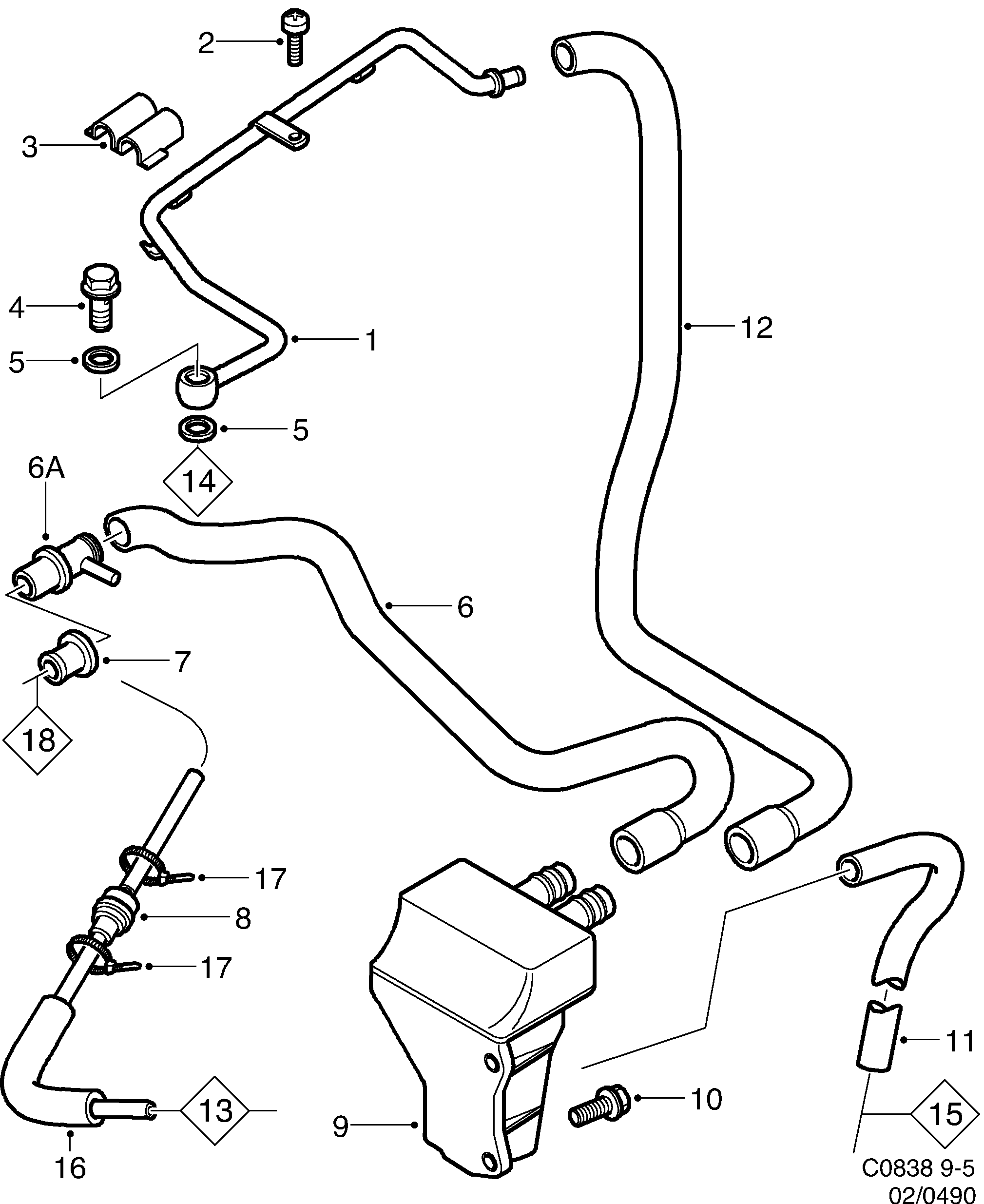

Saab 9-5 (9600) Crank case ventilation diagram

Pos	Article	Part No.
1	Tube	30567027 (replaces 9183849)
2	Screw	30551902 (replaces 9145764)
3	Clamp	90344674 (replaces 4685905)
4	Screw	7583628
4	Screw	5125224 (replaces 5125067)
4	Screw	5125224
5	Gasket	8124158
6	Hose	55560443 (replaces 9187816)
6	Hose	55560443 (replaces 9188806)
6A	Nipple	55560443 (replaces 30588567)
7	Bushing	9549593 (replaces 7515190)
7	Bushing	9549593
8	Hose	9399973 (replaces 9186891)
8	Hose	9399973 (replaces 9197740)
8	Hose	9399973
9	Oil trap	9187790
9	Oil trap	9197427
10	Screw	55566034 (replaces 7978190)
11	Hose	55560445 (replaces 9172115)
12	Hose	55560462 (replaces 9186875)
16	Hose	9187998
17	Tie strap	7971864
