Saab 9-5 (9600) 1999-2003 Oil pump

Group 2 Engine, section 455

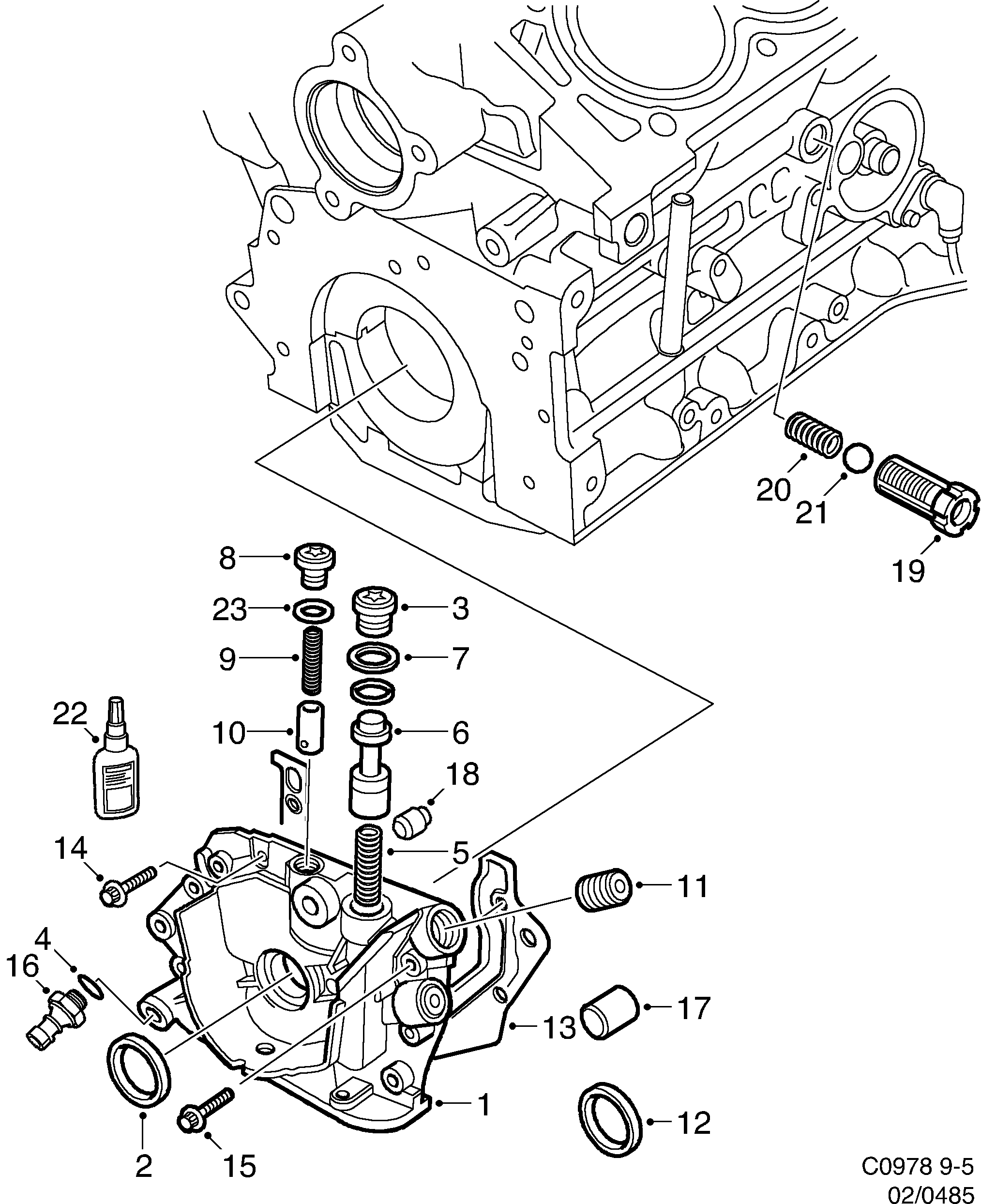

Saab 9-5 (9600) Oil pump diagram

Pos	Article	Part No.
1	Oil pump	9193203 (replaces 4773941)
2	Seal	90322669
3	Screw plug	55350692
4	Sealing ring	11016282 (replaces 4345716)
5	Spring	90511853 (replaces 4774089)
6	Piston	9118146 (replaces 4774071)
7	O-ring	11022571 (replaces 9483645)
8	Screw plug	90511857 (replaces 4774113)
9	Spring	90511855
10	Piston	90511854 (replaces 4774097)
11	Screw plug	90512410 (replaces 4774055)
12	Sealing ring	11022579 (replaces 4774063)
13	Gasket	55354678 (replaces 4773818)
14	Screw	9193904 (replaces 4773925)
15	Screw	11093792 (replaces 4347340)
16	Engine oil pressure sensor	55354378 (replaces 4770186)
16	Engine oil pressure sensor	55354378 (replaces 5962816)
17	Sleeve	90351708 (replaces 4500336)
18	Roll pin	90281475 (replaces 4772299)
19	By-pass valve	90136113 (replaces 4500419)
20	Spring	4500443
21	Ball	11055689 (replaces 4774139)
22	Flange sealant	90542117 (replaces 4771119)
23	Sealing ring	11016282 (replaces 9544628)
