Saab 9-5 (9600) 1998-1998 Oil pump

Group 2 Engine, section 450

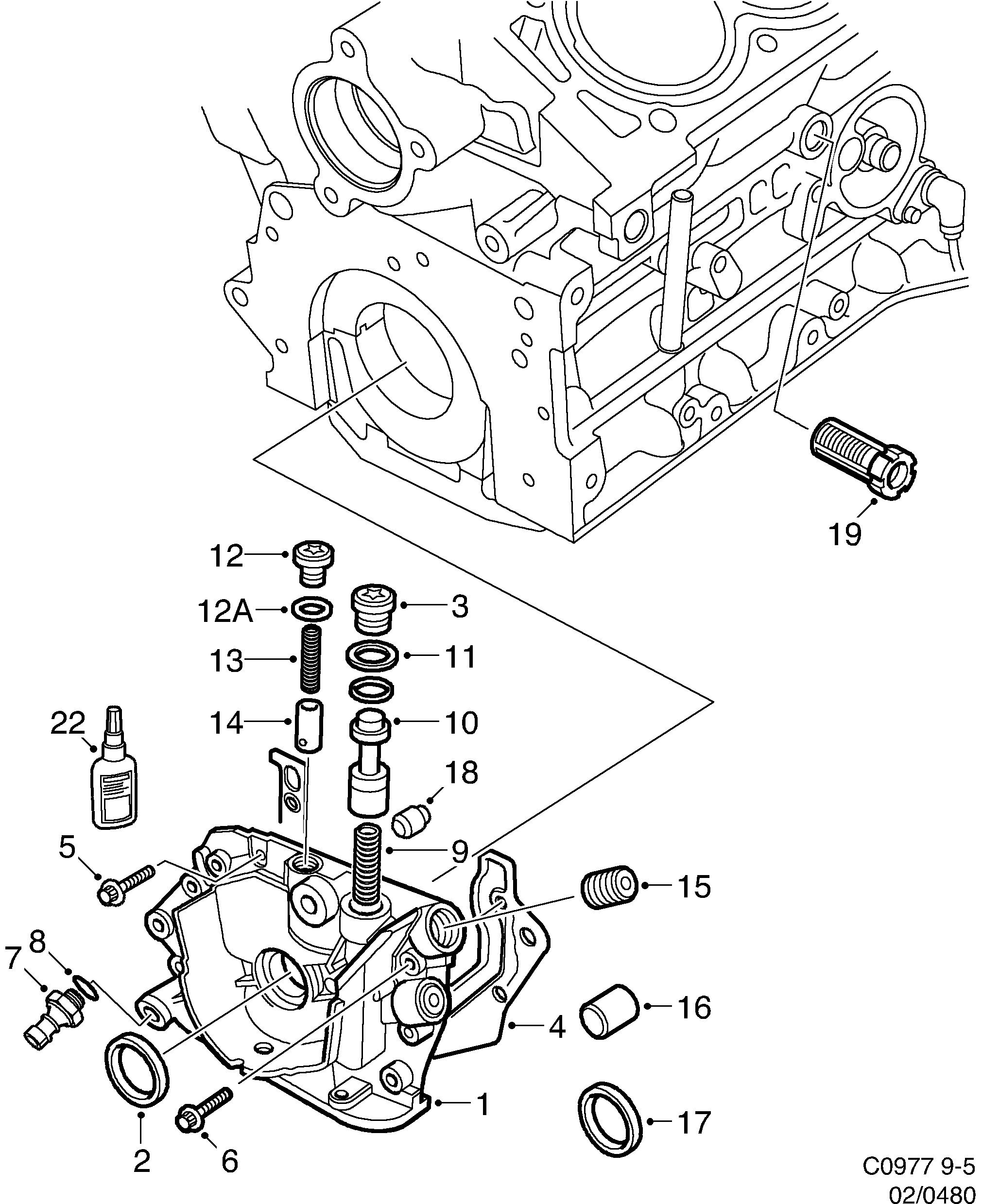

Saab 9-5 (9600) Oil pump diagram

Pos	Article	Part No.
1	Oil pump	9193203 (replaces 4773560)
2	Seal	90322669
3	Screw plug	55350692 (replaces 4502290)
4	Gasket	55354678 (replaces 4773818)
5	Screw	9193904 (replaces 4773826)
6	Screw	11093792 (replaces 4347340)
7	Engine oil pressure sensor	55354378 (replaces 4770186)
8	Sealing ring	11016282 (replaces 4345716)
9	Spring	90511853 (replaces 4774089)
10	Piston	9118146 (replaces 4774071)
11	O-ring	11022571 (replaces 9483645)
12	Screw plug	90511857 (replaces 4774113)
12A	Sealing ring	11016282 (replaces 9544628)
13	Spring	90511855
14	Piston	90511854 (replaces 4774097)
15	Screw plug	90512410 (replaces 4774055)
16	Sleeve	90351708 (replaces 4500336)
17	Sealing ring	11022579 (replaces 4774063)
18	Roll pin	90281475 (replaces 4772299)
19	By-pass valve	90136113 (replaces 4500419)
22	Flange sealant	90542117 (replaces 4771119)
