Saab 9-5 (9600) 2002-2005 Oil pan, oil filter

Group 2 Engine, section 440

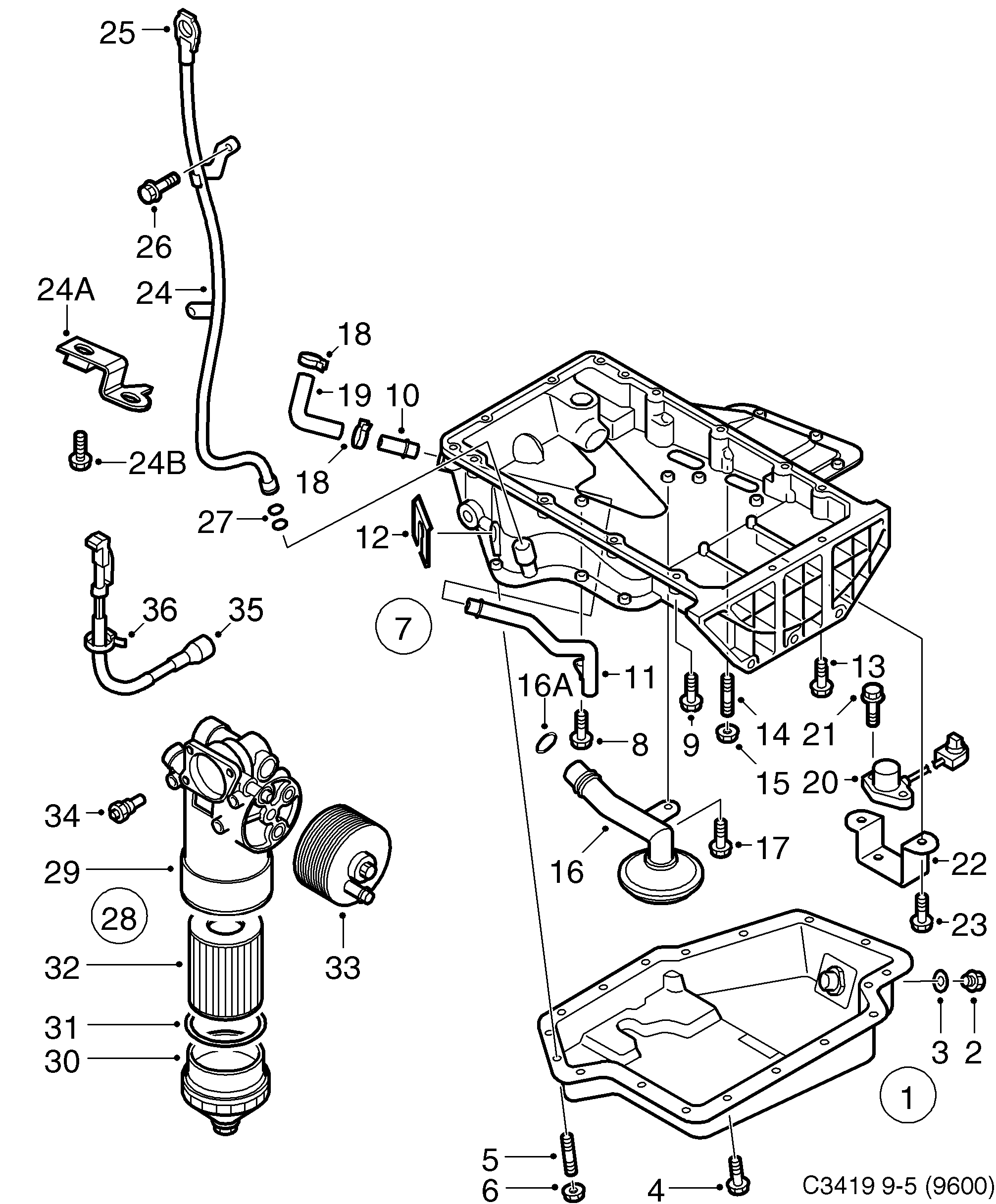

Saab 9-5 (9600) Oil pan, oil filter diagram

Pos	Article	Part No.
1	Oil pan	5951272
2	Plug	94316800 (replaces 5956222)
3	Gasket	5956230
4	Screw	5951173
5	Stud	32000277 (replaces 5951330)
6	Nut	5951348
7	Oil pan	5951264
8	Screw	32000275 (replaces 5951306)
9	Screw	5951165
10	Tube	5956750
11	Tube	5956768
12	Plate	32000276 (replaces 5951322)
13	Screw	5951157
14	Stud	5951181
15	Nut	5950654
16	Oil pipe	5951280
16	Suction pipe	98010623
16A	Gasket	94010157
18	Hose clamp	5951231
19	Hose	5951223
20	Sensor, oil lever	5951249
21	Screw	5951256
22	Bracket	5955612
23	Screw	5951827
24	Oil-level tube	5340898
24	Tube	13107321
24A	Bracket	24467215
24B	Screw	11097791
25	Dipstick	55559867 (replaces 5340880)
25	Dipstick	55559867
26	Screw	7969223
27	O-ring	5956065
28	Filter housing	5952007
29	Filter housing	5952007 (replaces 5956495)
30	Cover	5956479
31	O-ring	5956545
32	Filter insert	5444682
33	Oil cooler	5956727
34	Oil pressure sensor	5951421
35	Cable harness	5951439
36	Tie strap	5951447
