Saab 9-5 (9600) 1998-2003 Oil pan, oil filter

Group 2 Engine, section 435

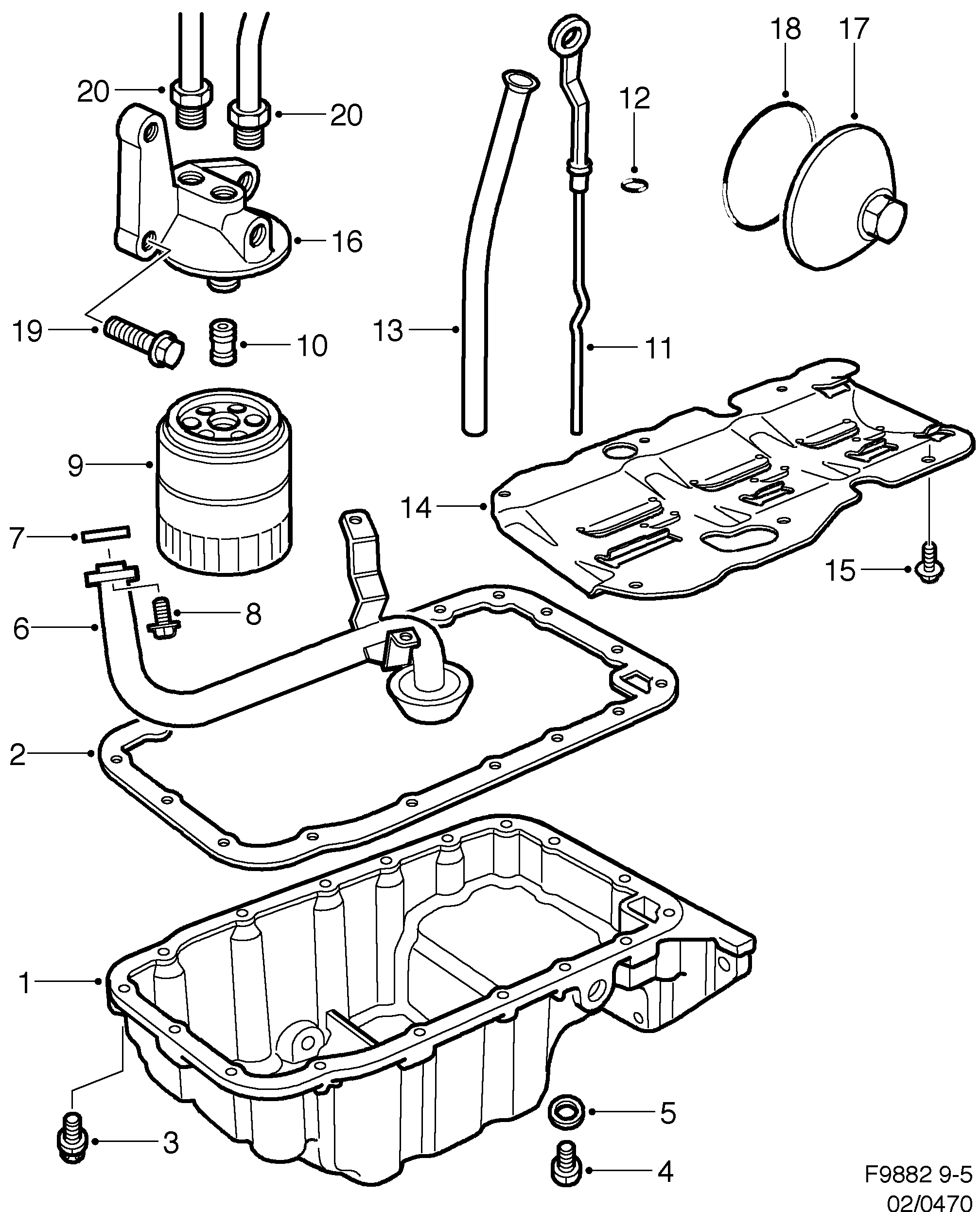

Saab 9-5 (9600) Oil pan, oil filter diagram

Pos	Article	Part No.
1	Oil pan	93165267 (replaces 9174350)
1	Oil pan	93165267 (replaces 9189952)
1	Oil pan	9483017
2	Gasket	90490239
2	Flange sealant	93165267 (replaces 7998214)
3	Screw	11093611 (replaces 4501110)
3	Screw	11093801 (replaces 4502191)
3	Screw	11093981 (replaces 4502217)
3	Screw	11093981
4	Plug	9132929
5	Gasket	9132937
6	Oil pipe	90490584 (replaces 9188160)
7	Sealing ring	90411017 (replaces 4502332)
8	Screw	11096061 (replaces 4770376)
9	Filter	93186554
10	Junction pipe	8348609
11	Dipstick	90490469 (replaces 9182767)
12	O-ring	90467373 (replaces 4620225)
13	Oil-level tube	11097791 (replaces 9176678)
14	Baffle plate	24428044 (replaces 4621074)
14	Baffle plate	24428044 (replaces 4773511)
14	Baffle plate	24428044 (replaces 5955216)
15	Screw	11093971 (replaces 4502076)
16	Connector	90490193 (replaces 9174715)
17	Cover	9171224
18	O-ring	90490744 (replaces 9198615)
19	Screw	4503009
