Saab 9-5 (9600) 2001-2010 Oil pan, oil filter

Group 2 Engine, section 425

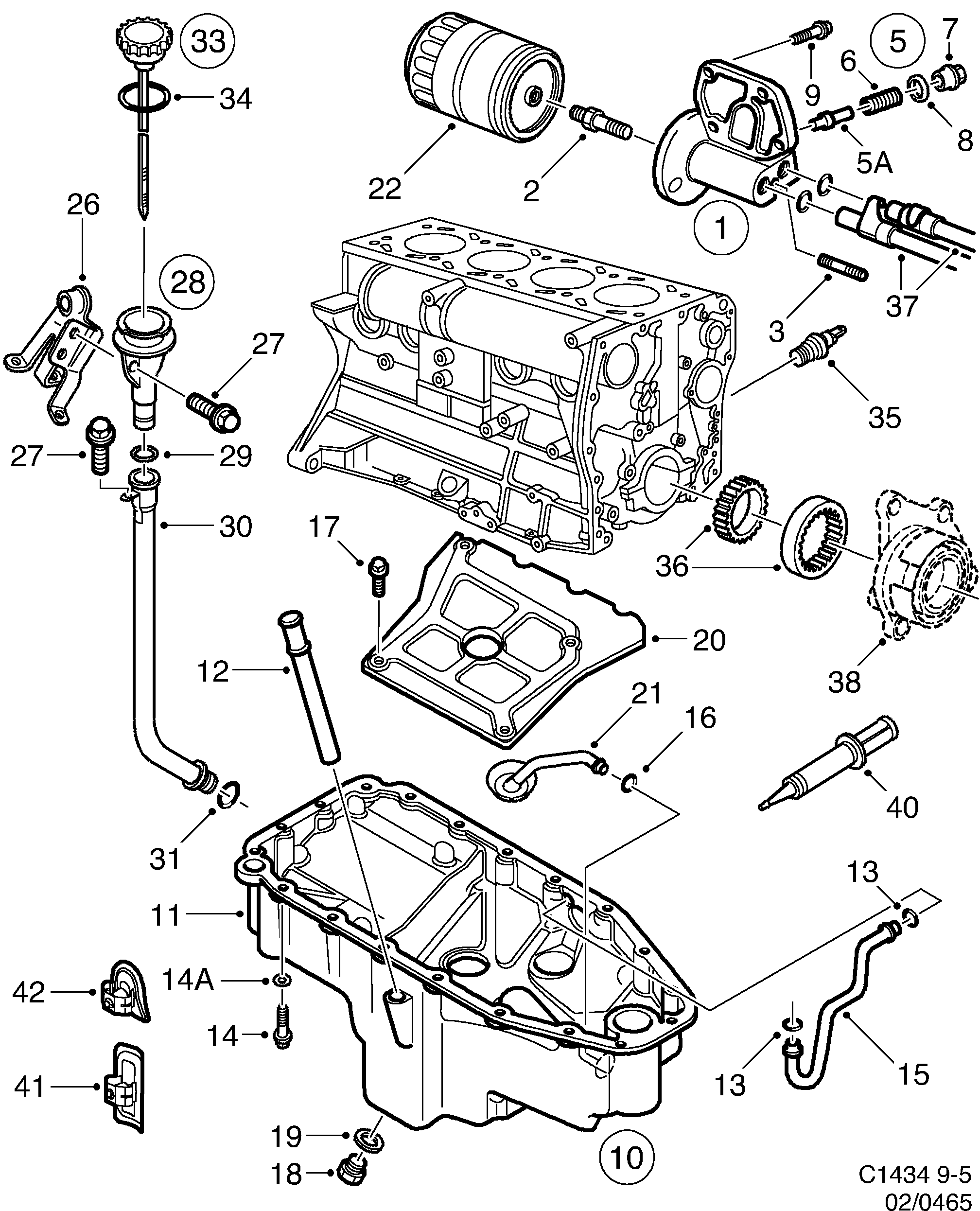

Saab 9-5 (9600) Oil pan, oil filter diagram

Pos	Article	Part No.
1	Connector	55559823 (replaces 9189531)
2	Junction pipe	8348609
3	Stud	4685368
5A	Thermostat	5958848 (replaces 9181736)
6	Spring	5958848 (replaces 9181744)
7	Plug	5958848 (replaces 9181934)
5	Thermostat	5958848
5A	Thermostat	55557392 (replaces 30562778)
5A	Thermostat	55557392
6	Spring	9300591
7	Plug	7520372
8	Gasket	30520353 (replaces 9109182)
8	Gasket	5959879
9	Screw	11900367
10	Oil pan	55559827 (replaces 5955307)
11	Oil pan	9399593
12	Oil pipe	9175662
10	Oil pan	55559827 (replaces 5955273)
10	Oil pan	55559827
11	Oil pan	55559827 (replaces 9192535)
13	O-ring	9137993
14	Screw	92150014
14	Screw	8084071
14A	Washer	92153033 (replaces 8029985)
15	Tube	9175696
16	O-ring	9138009
17	Screw	7971294
18	Plug	9132929
19	Gasket	9132937
20	Baffle plate	55557228 (replaces 30569900)
20	Baffle plate	55557228
21	Oil pipe	55557225 (replaces 9186156)
21	Pipe	55557225
22	Filter	93186554
27	Screw	11900354 (replaces 92150002)
28	Pipe	55561216
29	O-ring	9138108
30	Tube	55559427 (replaces 9172271)
30	Pipe	55559427
31	O-ring	55355266 (replaces 9147026)
31	O-ring	55355266
33	Dipstick	55557302 (replaces 9172305)
33	Dipstick, oil	55557302
34	Ring-gland	55557303 (replaces 9361544)
34	Seal	55557303
35	Oil pressure sensor	55559824 (replaces 9176660)
35	Oil pressure sensor	55559824
40	Flange sealant	90297970
41	Cover	30587699 (replaces 9199852)
42	Cover	30587700 (replaces 9199860)
