Saab 9-5 (9600) 1998-2001 Oil pan, oil filter

Group 2 Engine, section 420

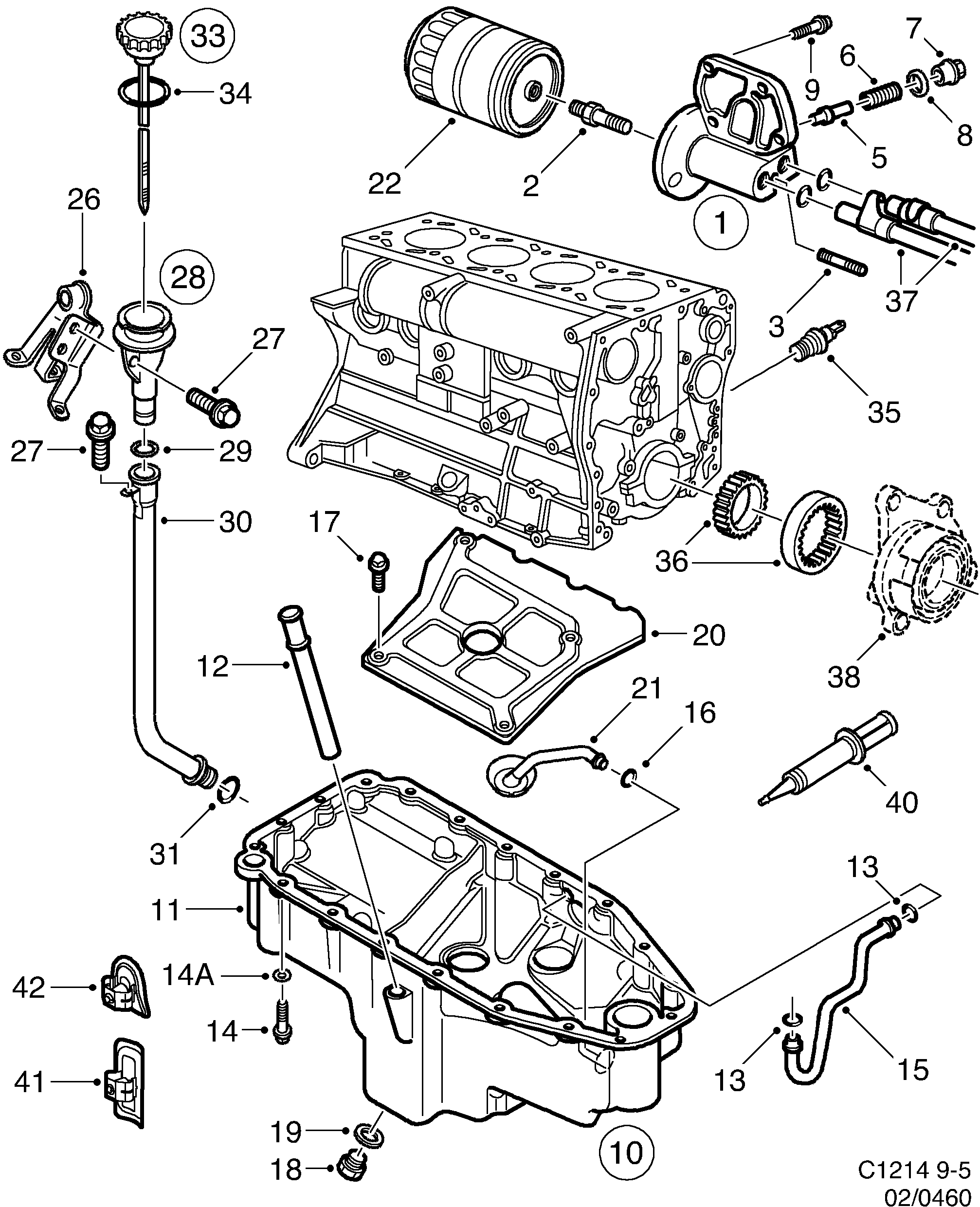

Saab 9-5 (9600) Oil pan, oil filter diagram

Pos	Article	Part No.
1	Connector	55559823 (replaces 9179268)
1	Connector	55559823 (replaces 9189531)
2	Junction pipe	8348609
3	Stud	4685368
5	Thermostat	5958848 (replaces 9181736)
6	Spring	5958848 (replaces 9181744)
7	Plug	5958848 (replaces 9181934)
8	Gasket	30520353 (replaces 9109182)
8	Gasket	5959879
9	Hexagon screw	11900367 (replaces 7978216)
11	Oil pan	55559827 (replaces 9186149)
11	Oil pan	55559827 (replaces 9192535)
11	Oil pan	9399593 (replaces 9197138)
12	Oil pipe	9175662
10	Oil pan	55559827 (replaces 5955307)
11	Oil pan	9399593
13	O-ring	9137993
14	Screw	92150014 (replaces 7978208)
14	Screw	8084071
14A	Washer	92153033 (replaces 8029985)
15	Tube	9175696
16	O-ring	9138009
17	Screw	7971294
18	Plug	9132929
19	Gasket	9132937
20	Baffle plate	55557228 (replaces 9186172)
21	Oil pipe	55557225 (replaces 9186156)
22	Filter	93186554
27	Screw	11900354 (replaces 7978109)
28	Oil-level tube	55561216 (replaces 9179284)
29	O-ring	9138108
30	Tube	55559427 (replaces 9172271)
31	O-ring	55355266 (replaces 9147026)
33	Dipstick	55557302 (replaces 9172305)
34	Ring-gland	55557303 (replaces 9361544)
35	Oil pressure sensor	55559824 (replaces 9176660)
40	Flange sealant	90297970
41	Cover	30587699 (replaces 9199852)
42	Cover	30587700 (replaces 9199860)
