Saab 9-5 (9600) 2002-2005 Crankshaft Piston

Group 2 Engine, section 415

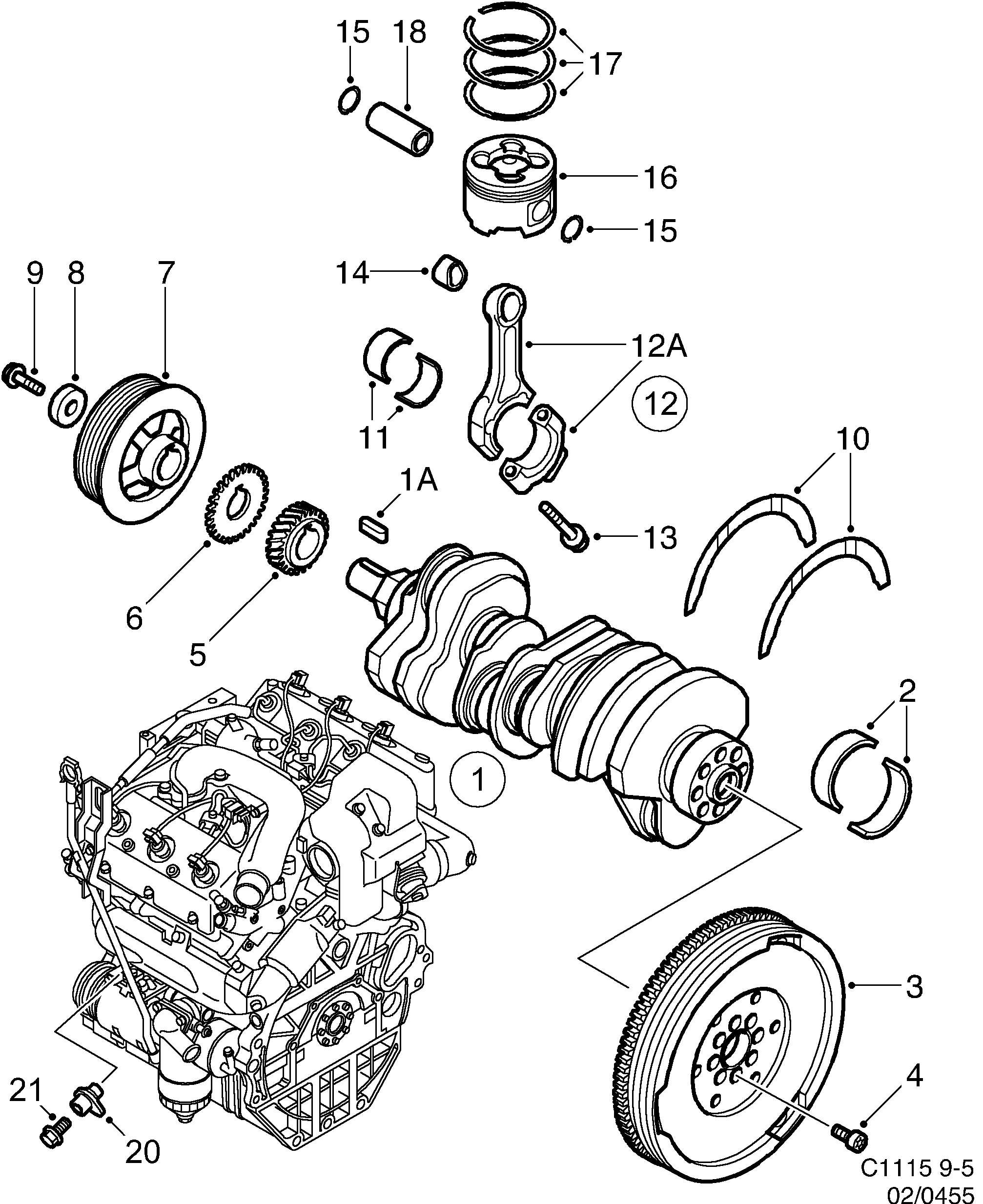

Saab 9-5 (9600) Crankshaft Piston diagram

Pos	Article	Part No.
1	Crankshaft	5950860
1A	Key	5956834
2	Main bearing	5954987
2	Main bearing	5954995
2	Main bearing	5955000
2	Main bearing	5955018
3	Flywheel	5440292
4	Screw	5256110
5	Crankshaft gear	5950878
6	Aperture disc	5950886
7	Pulley	5950910
8	Washer	5950936
9	Screw	5950928
10	Crankshaft gear	5950514
11	Big end bearing kit	5955042
11	Big end bearing kit	5955059
11	Big end bearing kit	5955067
12	Connecting rod	5951066
13	Screw	5956586
14	Bushing	5956446
15	Lock ring	5951140
16	Piston	5950977
16	Piston	5950985
16	Piston	5950993
16	Piston	5951009
16	Piston	5951017
16	Piston	5951025
17	Piston ring kit	5955034
18	Piston pin	5951132
20	Crankshaft position sensor	5951819
21	Screw	5952536
