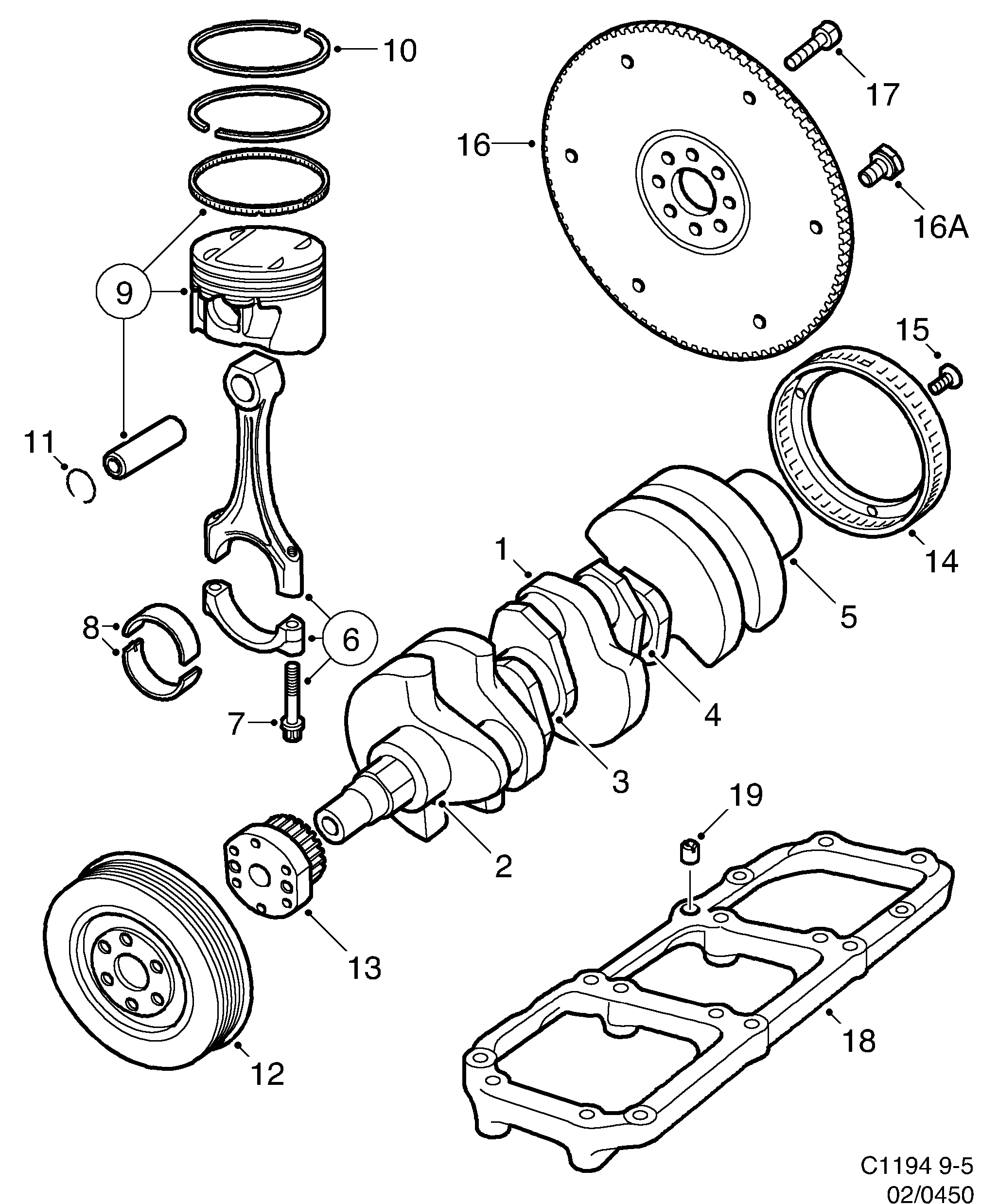

Group 2 Engine, section 410
| Pos | Article | Part No. |
|---|---|---|
| 1 | Crankshaft | 90509018 (replaces 4770236) |
| 2 | Main bearing | 90444001 (replaces 9321977) |
| 2 | Main bearing | 90444002 (replaces 9321985) |
| 2 | Main bearing | 90444005 |
| 3 | Main bearing | 9117252 (replaces 8821779) |
| 3 | Main bearing | 9117252 (replaces 4774154) |
| 3 | Main bearing | 9117255 (replaces 8821787) |
| 3 | Main bearing | 9117255 (replaces 4774162) |
| 3 | Main bearing | 9117256 (replaces 8821795) |
| 3 | Main bearing | 9117256 |
| 4 | Main bearing | 9117252 (replaces 8821829) |
| 4 | Main bearing | 9117255 |
| 4 | Main bearing | 9117256 (replaces 8821845) |
| 5 | Main bearing | 90444006 (replaces 8821720) |
| 5 | Main bearing | 90444007 (replaces 8821738) |
| 5 | Main bearing | 8821746 |
| 6 | Connecting rod | 9195508 (replaces 9399577) |
| 7 | Screw | 90467192 (replaces 4501789) |
| 8 | Big end bearing kit | 9195509 (replaces 9483686) |
| 8 | Big end bearing kit | 9195510 (replaces 9483702) |
| 9 | Piston | 90490663 (replaces 9194135) |
| 9 | Piston | 90490664 (replaces 9194002) |
| 9 | Piston | 90490665 (replaces 9192972) |
| 9 | Piston | 90490666 (replaces 9192980) |
| 9 | Piston | 90490666 |
| 9 | Piston | 90490667 (replaces 9192998) |
| 9 | Piston | 90490668 (replaces 4773792) |
| 10 | Piston ring kit | 8822413 |
| Compression ring | 90423082 (replaces 4620951) | |
| Compression ring | 90351658 (replaces 4620977) | |
| Oil scraper ring | 90509740 | |
| 10 | Piston ring kit | 8822421 |
| Compression ring | 8822454 | |
| Compression ring | 8822462 | |
| 11 | Lock ring | 90501450 (replaces 9179292) |
| 16 | Companion flange | 90490709 (replaces 4572715) |
| 16 | Companion flange | 90490709 (replaces 9483074) |
| 16A | Screw | 92152207 |
| 17 | Screw | 9126505 (replaces 4899316) |
| 18 | Bearing carrier | 24427917 (replaces 4620019) |
| 18 | Bearing carrier | 24427917 |
| 19 | Sleeve | 90412157 (replaces 4500393) |
