Saab 9-5 (9600) 2002-2005 Transmission Timing gear casing

Group 2 Engine, section 405

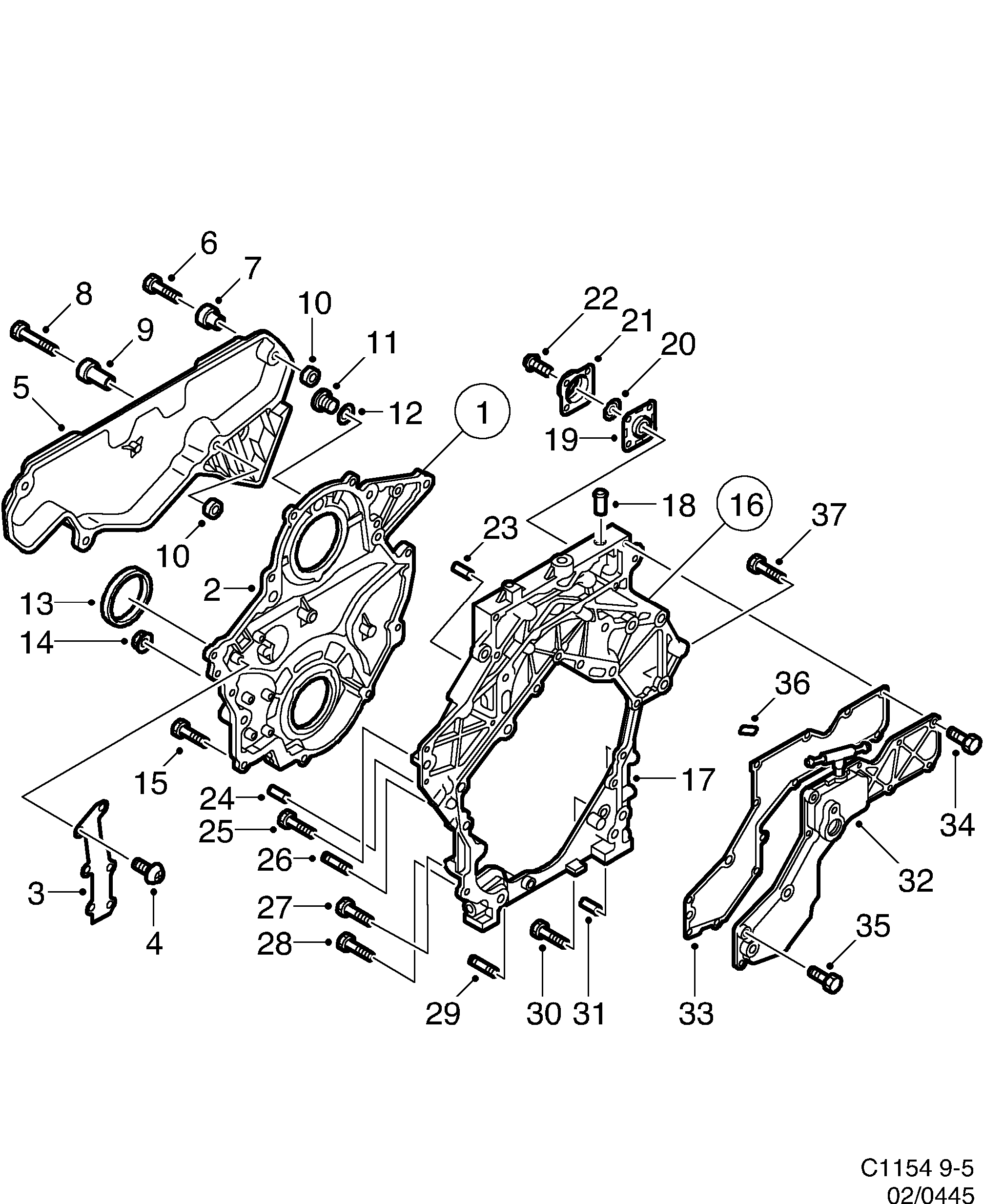

Saab 9-5 (9600) Transmission Timing gear casing diagram

Pos	Article	Part No.
1	Cover	5951637
3	Cover	5956743
4	Screw	94003223 (replaces 5956917)
5	Cover	5951751
6	Screw	5950274
7	Rubber bushing	5951785
8	Screw	5951769
9	Rubber bushing	5951793
10	Rubber bushing	5951801
11	Plug	5951611
12	Sealing ring	94000393 (replaces 5951629)
13	Seal	32000279 (replaces 5951702)
14	Nut	5950654
15	Screw	5951561
16	Cover	5951546
17	Cover	5956776
18	Sleeve	5956321
19	Diaphragm	5956362
20	Spring	5956354
21	Cover	5956453
22	Screw	97024319 (replaces 5954433)
23	Pin	98007128 (replaces 5956842)
24	Guide sleeve	5950332
25	Screw	5951587
26	Stud screw	94013049 (replaces 5951652)
27	Screw	5951579
29	Stud	94004048 (replaces 5950647)
30	Screw	5951553
32	Cover	32000280 (replaces 5951710)
33	Gasket	32000281 (replaces 5951728)
34	Screw	32000282 (replaces 5951736)
35	Screw	5951744
36	Gasket	5951660
37	Screw	5951595
