Saab 9-5 (9600) 2002-2005 Transmission

Group 2 Engine, section 395

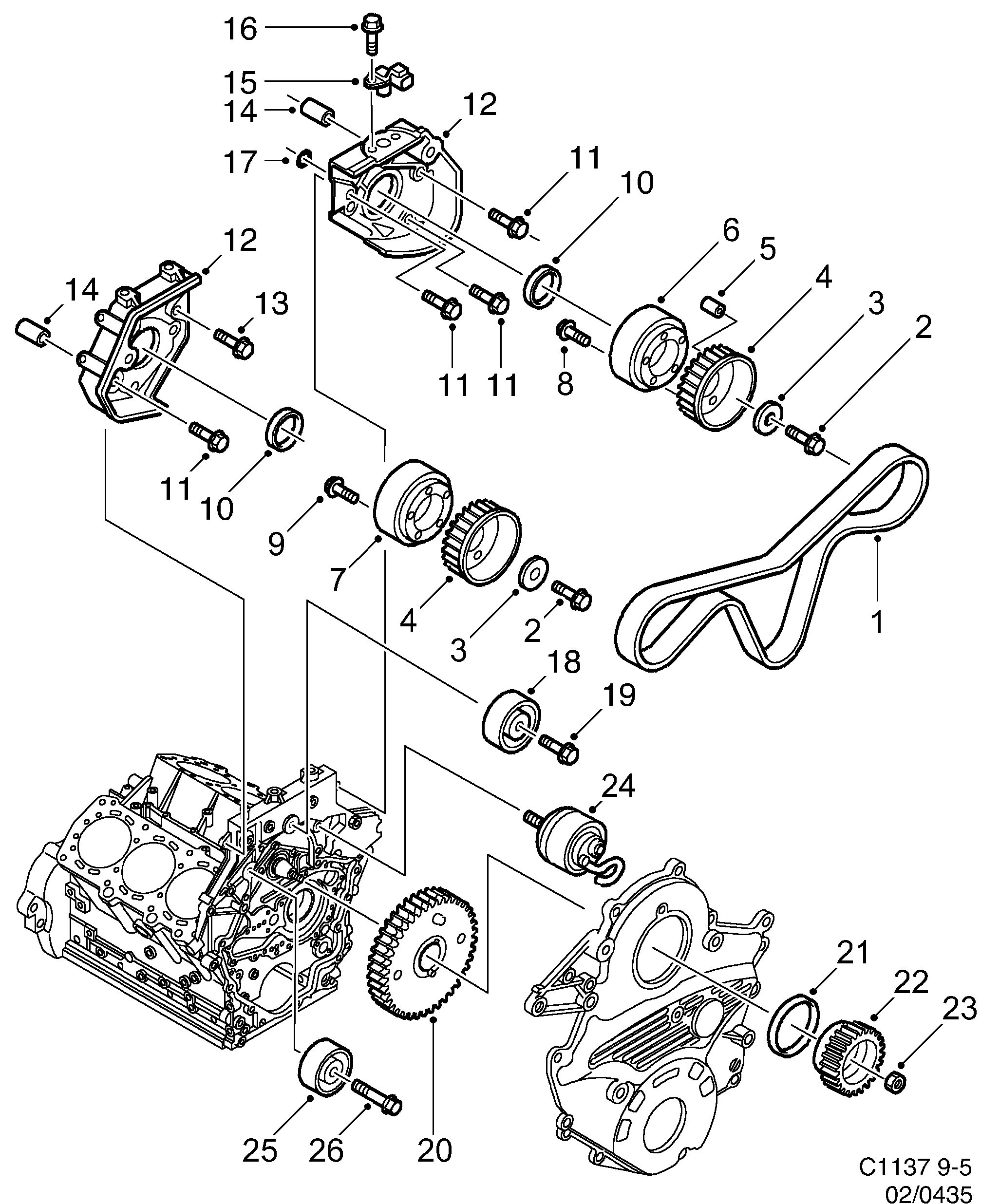

Saab 9-5 (9600) Transmission diagram

Pos	Article	Part No.
1	Tooth belt	5954557
2	Screw	5954458
3	Washer	5954466
4	Chain gear	5953849
5	Sleeve	94010219 (replaces 5954565)
6	Tension pulley	5954474
7	Flange	5953856
8	Screw	97024319 (replaces 5954433)
9	Screw	5954441
10	Sealing plug	5954391
11	Screw	5954359
12	Retainer	5954342
12	Retainer	5954334
13	Screw	5950423
14	Guide sleeve	5950332
15	Camshaft position sensor	5954375
16	Screw	5951827
17	Sealing ring	94007637 (replaces 5954417)
18	Chain gear	5954516
19	Screw	5954532
20	Chain gear	5954573
21	Seal	5954425
22	Chain gear	5954482
23	Nut	5954490
24	Belt tensioner	97381209
25	Chain gear	5954524
26	Screw	5954540
