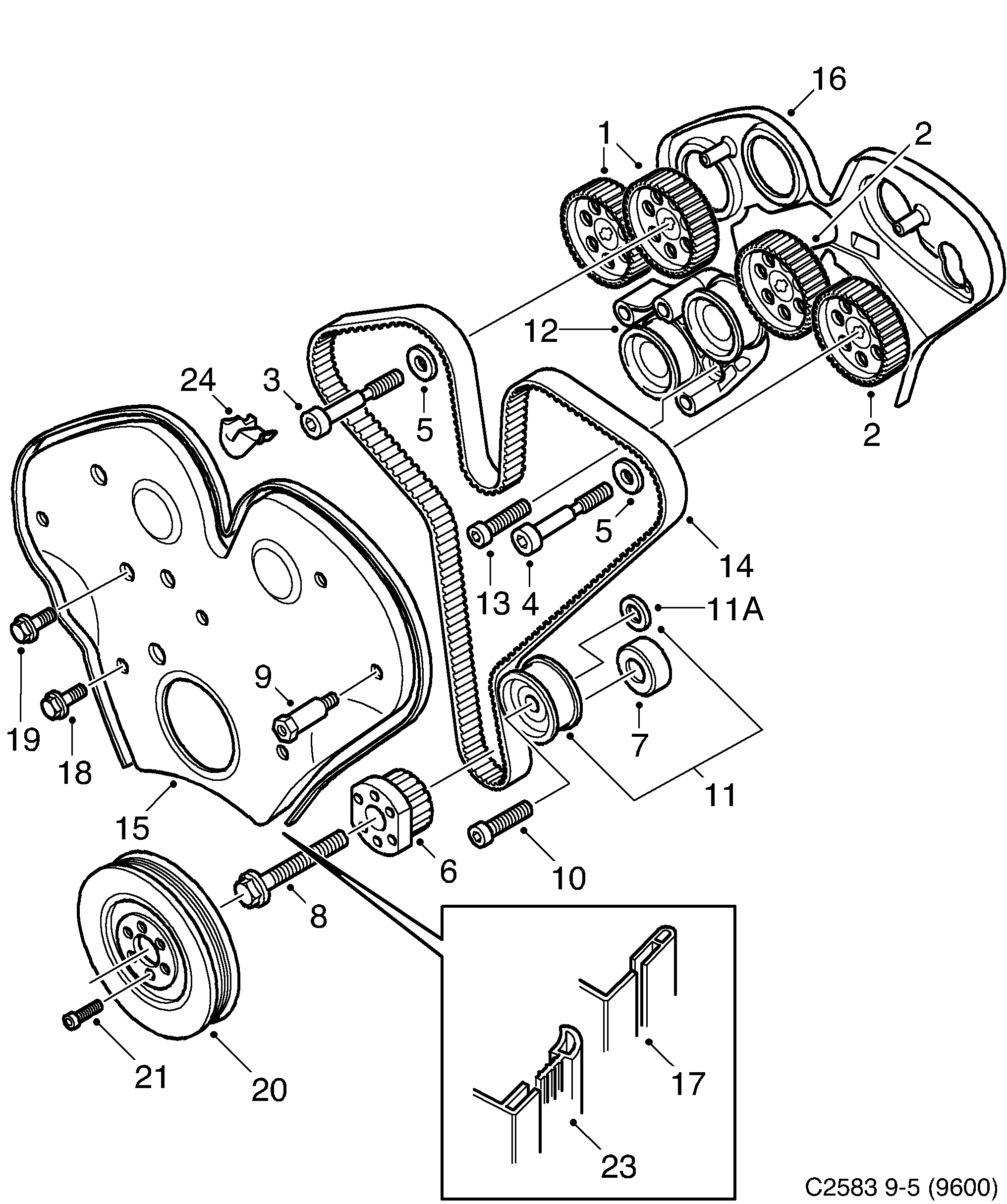

Group 2 Engine, section 390
| Pos | Article | Part No. |
|---|---|---|
| 1 | Chain gear | 90466551 (replaces 4503991) |
| 2 | Chain gear | 90573286 (replaces 4623898) |
| 2 | Chain gear | 90573286 (replaces 4773859) |
| 3 | Screw | 90466737 |
| 4 | Screw | 90466738 |
| 4 | Screw | 90573287 (replaces 4773867) |
| 5 | Thrust washer | 90108392 (replaces 4504049) |
| 6 | Crankshaft gear | 90409548 |
| 7 | Thrust ring | 90298202 (replaces 4504064) |
| 8 | Screw | 4504072 |
| 9 | Screw | 4502829 |
| 10 | Screw | 11093811 (replaces 9483629) |
| 11 | Guide roller | 90543739 |
| 11 | Guide roller | 9196294 |
| 11A | Washer | 90529188 |
| 11A | Washer | 90572531 |
| 12 | Bracket | 4774048 |
| 12 | Bracket | 24449772 (replaces 5958178) |
| 13 | Screw | 11094021 (replaces 4504130) |
| 13 | Screw | 11094031 |
| 14 | Tooth belt | 4773545 |
| 14 | Tooth belt | 9128500 (replaces 9483637) |
| 15 | Timing gear casing | 9128733 (replaces 4773578) |
| 16 | Timing gear casing | 90572785 (replaces 9483587) |
| 16 | Timing gear casing | 5335633 |
| 17 | Seal | 90409614 (replaces 4502845) |
| 18 | Screw | 11096901 (replaces 4623724) |
| 19 | Screw | 11093971 (replaces 4770038) |
| 20 | Pulley | 13101722 (replaces 4443214) |
| 20 | Pulley | 9483900 |
| 20 | Pulley | 13101722 (replaces 5958053) |
| 21 | Screw | 11093601 (replaces 4346854) |
| 21 | Screw | 11093601 (replaces 5958145) |
| 23 | Seal | 90571618 |
| 24 | Wear protection | 5328992 |
