Saab 9-5 (9600) 2002-2005 Belt tensioner

Group 2 Engine, section 385

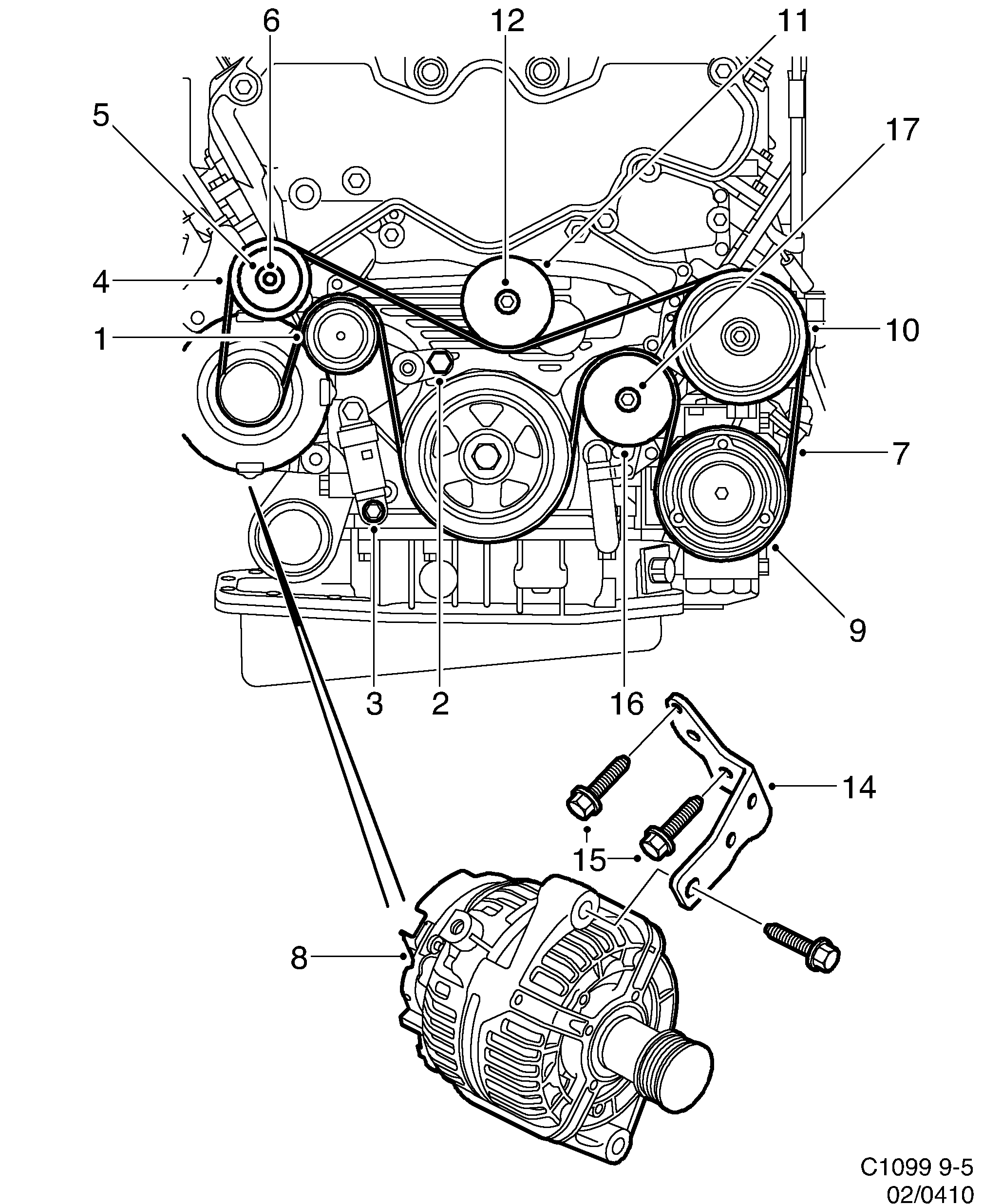

Saab 9-5 (9600) Belt tensioner diagram
PosArticlePart No.
1Belt tensioner5954771
2Screw5954797
3Screw5954789
4Idler pulley5954763
5Bearing shield5954748
6Screw5954755
7Belt5342464
11Tension pulley5954805
12Screw5954813
14Bracket5194667
15Screw55566034 (replaces 7978190)
15Screw11096811 (replaces 4773156)
16Tension pulley5340617
17Screw7973571
