Saab 9-5 (9600) 2002-2005 Cylinder block

Group 2 Engine, section 375

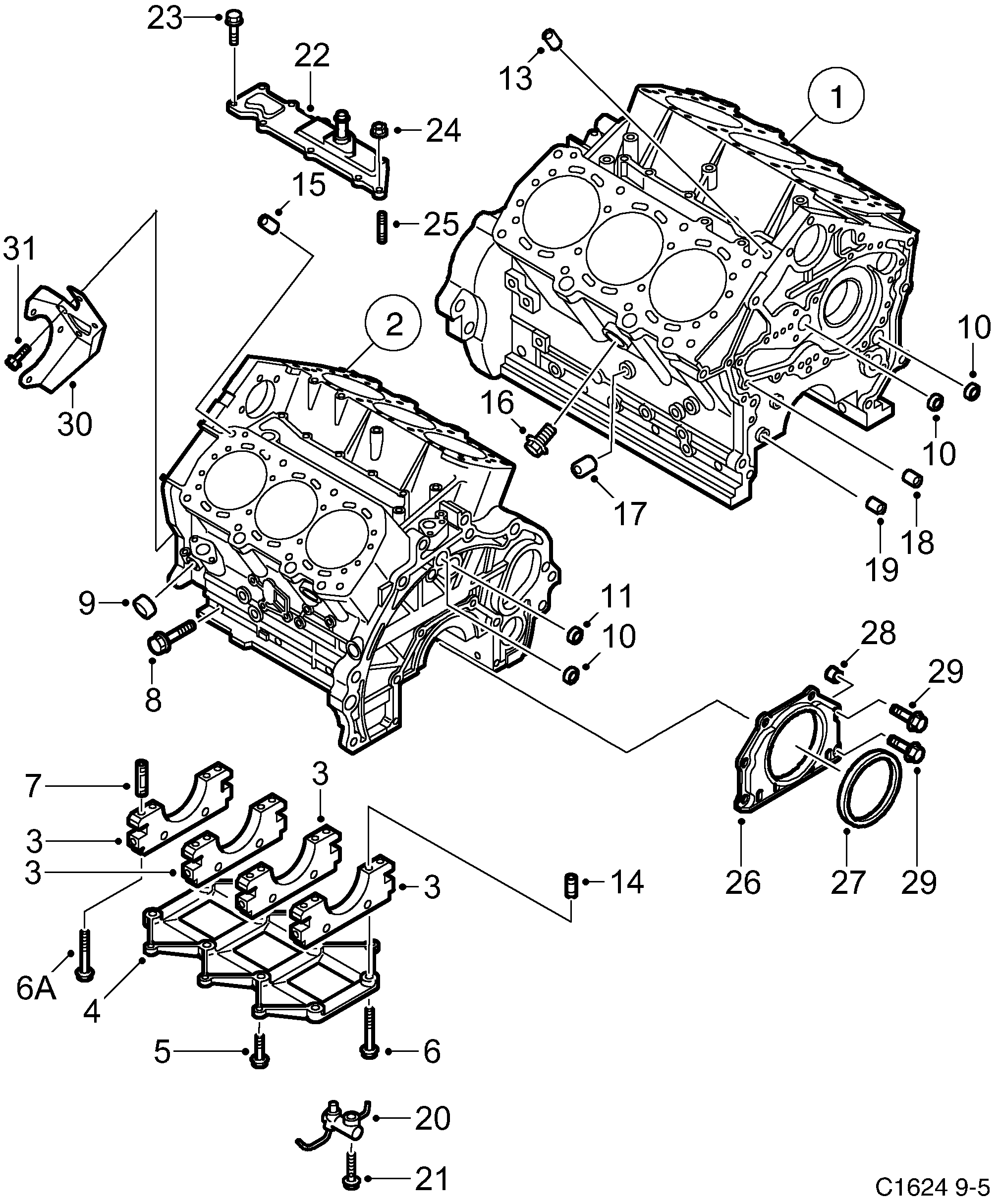

Saab 9-5 (9600) Cylinder block diagram

Pos	Article	Part No.
1	Cylinder block	5950258
4	Bearing carrier	5950266
5	Screw	5950274
6	Screw	5956511
6A	Screw	5956529
7	Guide	5956644
8	Screw	5956305
9	Sealing washer	5956073
10	Sealing washer	5956909
11	Sealing washer	5956297
13	Plug	5956503
14	Guide sleeve	5950332
15	Guide	5950324
16	Screw plug	5950316
17	Guide sleeve	5950522
18	Guide sleeve	5950340
20	Piston cooling jet	5950290
21	Banjo screw	5950282
22	Cover	5950308
23	Screw	5950373
24	Nut	5950399
25	Stud	94003223 (replaces 5950381)
26	Plate	5950365
27	Seal	5950415
29	Screw	5950423
30	Bracket	5954961
31	Screw	5342506
