Saab 9-5 (9600) 2006-2010 Crankshaft Piston

Group 2 Engine, section 347

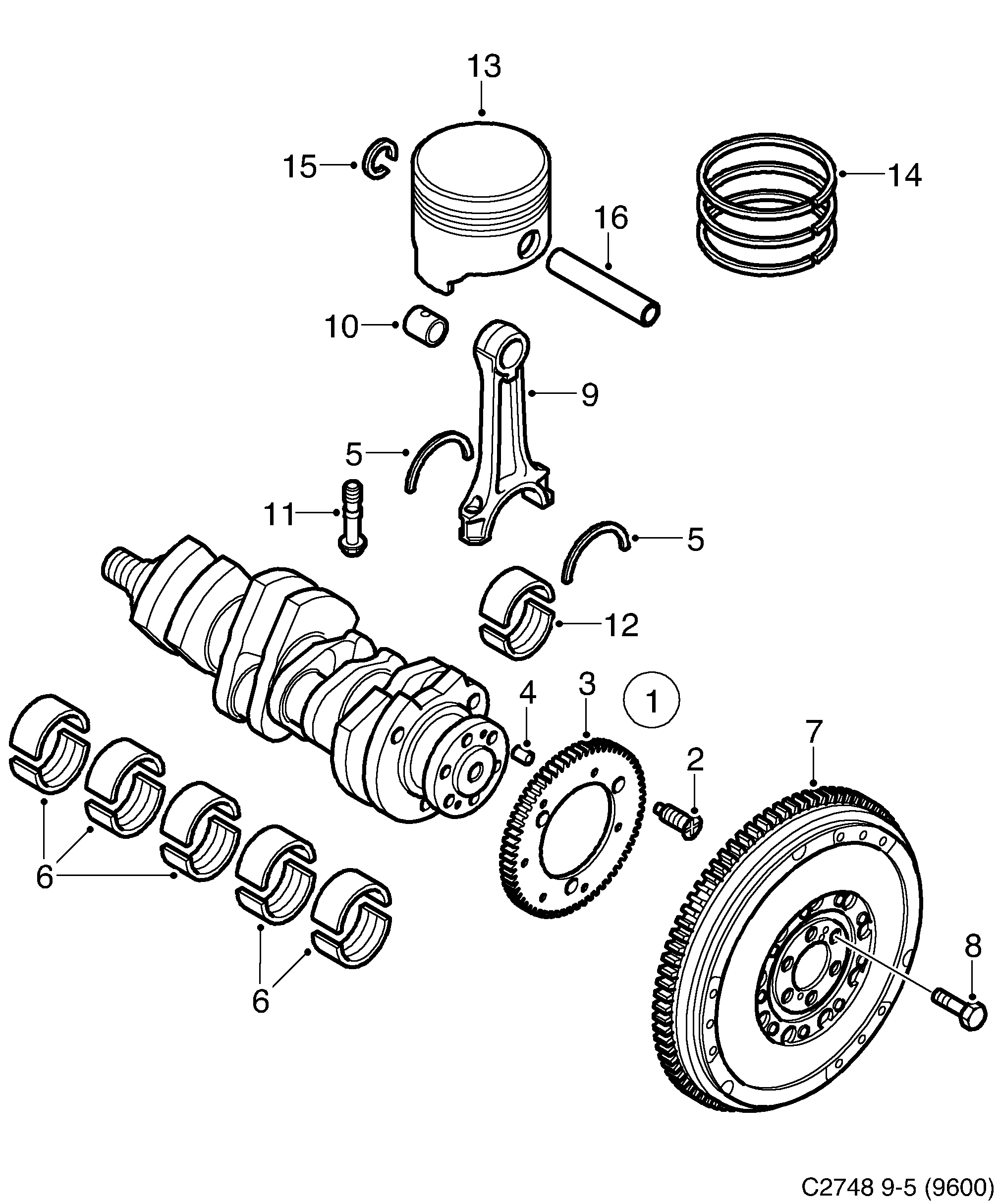

Saab 9-5 (9600) Crankshaft Piston diagram

Pos	Article	Part No.
1	Crankshaft	55200362
2	Screw	93178798
3	Gear	93178796
4	Bushing	93178509
5	Main bearing kit	93178506
5	Main bearing kit	93178507
6	Main bearing kit	93191214 (replaces 93178518)
6	Crankshaft bearing, kit	93191214
6	Main bearing kit	93191215 (replaces 93178519)
6	Crankshaft bearing, kit	93191215
6	Main bearing kit	93191216 (replaces 93178520)
6	Crankshaft bearing, kit	93191216
6	Main bearing kit	93178521
6	Crankshaft bearing, kit	93191217
6	Main bearing kit	93191218 (replaces 93178522)
6	Crankshaft bearing, kit	93191218
6	Main bearing kit	93178523
6	Crankshaft bearing, kit	93191219
7	Flywheel	55570197
7	Flywheel	93185538
8	Special screw	55214338 (replaces 93189084)
9	Connecting rod	55195405
9	Connecting rod	55575440
10	Bushing	93185337
11	Connecting rod bolt	55198190
12	Big end bearing kit	93189785
12	Big end bearing kit	93189786
12	Big end bearing kit	93189787
12	Big end bearing kit	93189788
12	Big end bearing kit	93189789
12	Big end bearing kit	93189790
13	Piston	55203162
13	Piston	55567349
13	Piston	55567347 (replaces 55203166)
13	Piston	55567350
13	Piston	55567348 (replaces 55203170)
13	Piston	55567351
14	Piston ring kit	93193691 (replaces 93188122)
14	Piston ring kit	93193692
15	Lock ring	93178371
16	Piston pin	93178372
