Saab 9-5 (9600) 2002-2005 Crankshaft Piston

Group 2 Engine, section 345

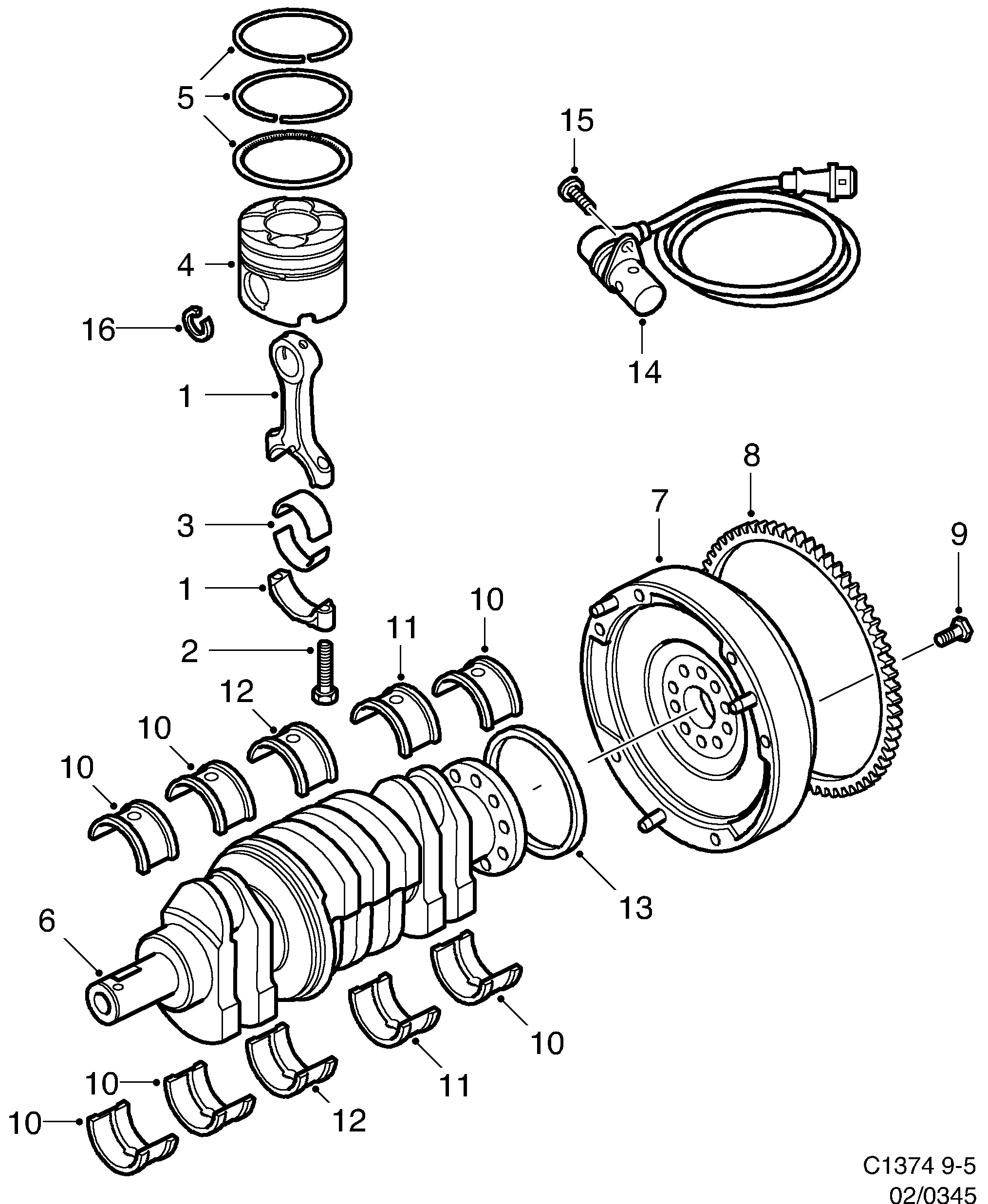

Saab 9-5 (9600) Crankshaft Piston diagram

Pos	Article	Part No.
1	Connecting rod	90528646 (replaces 9543349)
2	Screw	90467192 (replaces 4501789)
3	Con.bearing	93170296 (replaces 4771796)
3	Con.bearing	93170296 (replaces 5343736)
3	Con.bearing	93170296
3	Con.bearing	93170297 (replaces 4771820)
3	Con.bearing	93170297 (replaces 5343801)
3	Con.bearing	93170297
4	Piston	9158545 (replaces 5342266)
4	Piston	9158546 (replaces 5342282)
4	Piston	9158547
4	Piston	5342415
4	Piston	5342191
4	Piston	9128052 (replaces 4773685)
5	Piston ring kit	9196520 (replaces 4774295)
5	Piston ring kit	9196523 (replaces 4774287)
6	Crankshaft	24439871 (replaces 5342027)
7	Flywheel	93173058 (replaces 5440177)
7	Flywheel	24410096 (replaces 5343397)
9	Screw	9192342 (replaces 4348199)
9	Screw	90295195 (replaces 5343405)
10	Main bearing	93170278 (replaces 4771192)
10	Main bearing	93170278 (replaces 5342811)
10	Main bearing	93170279 (replaces 4771242)
10	Main bearing	93170279 (replaces 5343264)
11	Main bearing	93170284 (replaces 4771341)
11	Main bearing	93170284 (replaces 5343421)
11	Main bearing	93170285 (replaces 4771374)
11	Main bearing	93170285 (replaces 5343439)
12	Main bearing	93170320 (replaces 4771432)
12	Main bearing	93170320 (replaces 5343710)
12	Main bearing	93170321 (replaces 4771481)
12	Main bearing	93170321 (replaces 5343728)
13	Sealing ring	90570322 (replaces 9543083)
14	Crankshaft position sensor	90540188 (replaces 9544560)
15	Screw	11093881 (replaces 4503405)
16	Lock ring	90500815 (replaces 9549015)
