Saab 9-5 (9600) 1998-2010 Crankshaft Piston

Group 2 Engine, section 340

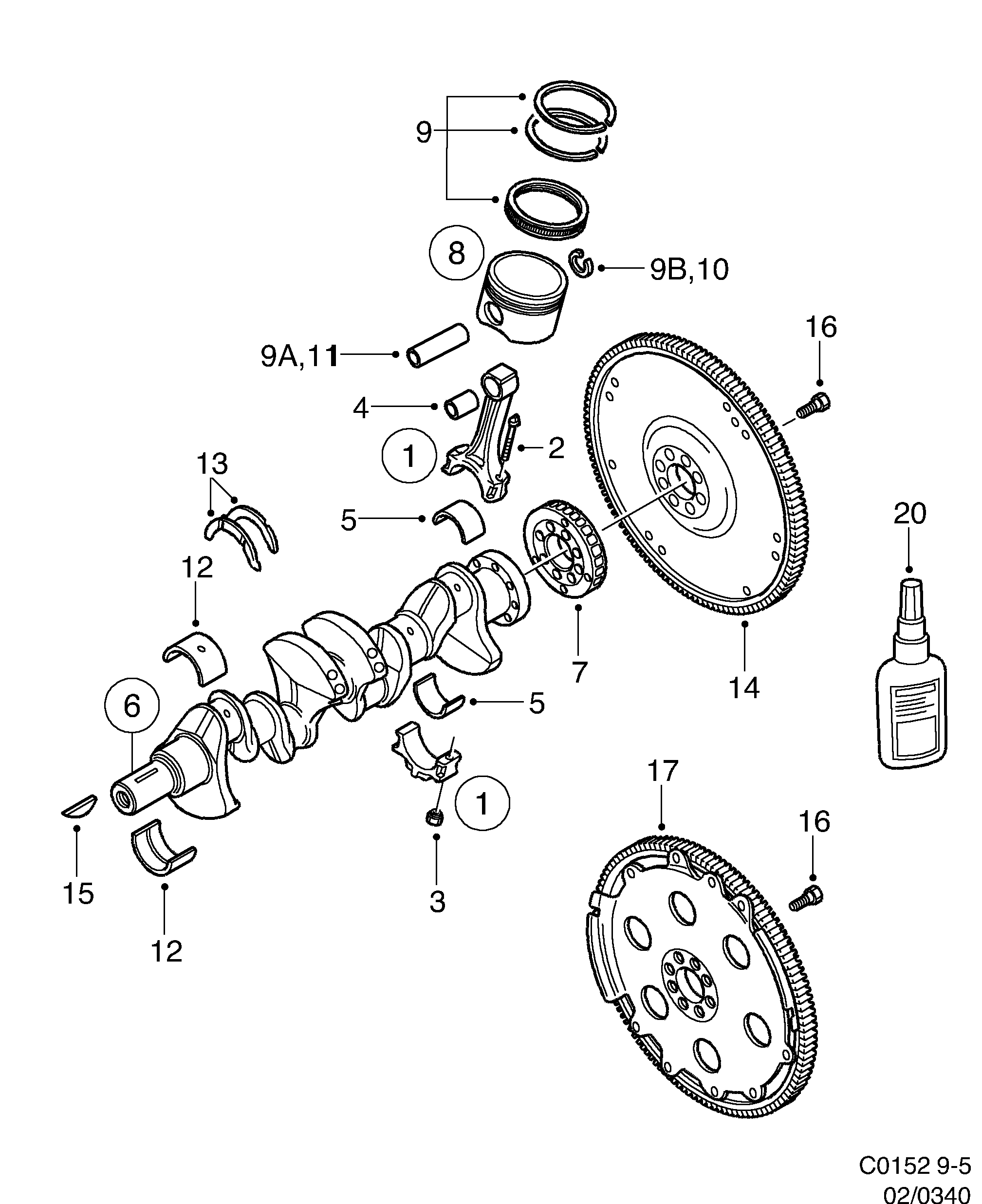

Saab 9-5 (9600) Crankshaft Piston diagram

Pos	Article	Part No.
1	Connecting rod	9549767
1	Connecting rod	32025544
1	Connecting rod	30589312
1	Connecting rod	9173808
1	Connecting rod	30584322 (replaces 9197617)
1	Connecting rod	30589313 (replaces 9199233)
2	Screw	7480643
2	Screw	5955083
3	Nut	7480684
4	Bushing	30569613 (replaces 9181827)
4	Bushing	30584299
5	Con.bearing	55557370 (replaces 30551893)
5	Con.bearing	55557370
5	Con.bearing	30551894
5	Con.bearing	30551895
6	Crankshaft	9139403
6	Crankshaft	9139460
8	Piston	9186263
8	Piston	30584330
8	Piston	9186271
8	Piston	30584331
8	Piston	30571131 (replaces 9186289)
8	Piston	30584726
8	Piston	30574016 (replaces 9186297)
8	Piston	30584727
8	Piston	30573067 (replaces 9186362)
8	Piston	30584324 (replaces 9197864)
8	Piston	9186370
8	Piston	30584325 (replaces 9197872)
8	Piston	9186388
8	Piston	30584595 (replaces 9197880)
8	Piston	9186396
8	Piston	30584596 (replaces 9197898)
9	Piston ring kit	55557263 (replaces 30571714)
9	Piston ring kit	55557263
9	Piston ring kit	9186719
9	Piston ring kit	32000441
9A	Piston pin	30582432
9B	Lock ring	55557265 (replaces 30571713)
9B	Snap ring	55557265
11	Piston pin	30566240 (replaces 9183831)
12	Main bearing	55557369 (replaces 9145418)
12	Main bearing	55557369
13	Thrust washer	7588783
14	Flywheel	55557245 (replaces 9172008)
16	Screw	30551806
17	Companion flange	92152207 (replaces 9171422)
17	Companion flange	92152207 (replaces 9187592)
17	Companion flange	9483066
20	Nut lock	7496292
