Saab 9-5 (9600) 2002-2005 Transmission Balance shaft

Group 2 Engine, section 320

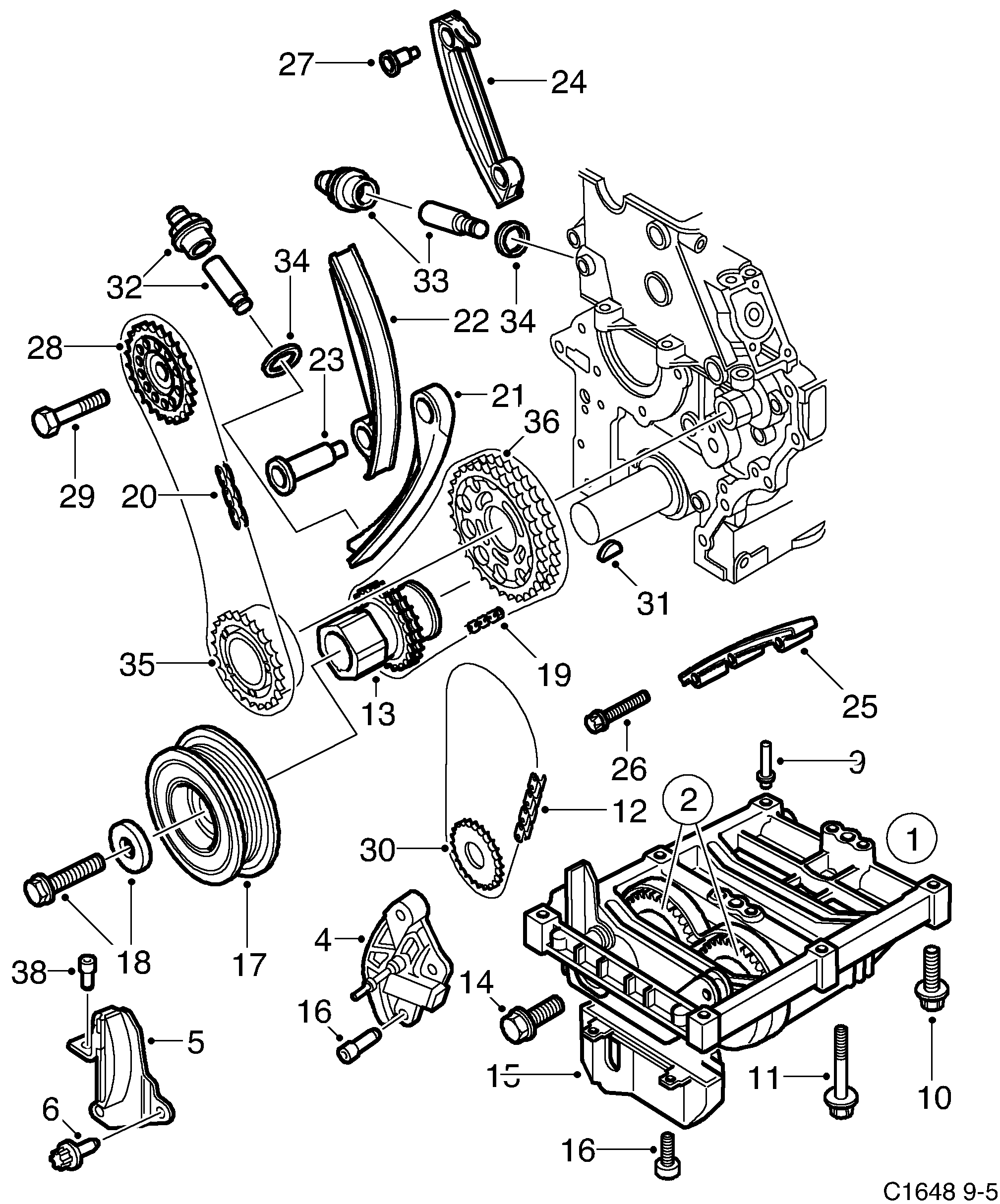

Saab 9-5 (9600) Transmission Balance shaft diagram

Pos	Article	Part No.
1	Balance shaft	24435760 (replaces 5342043)
2	Balance shaft	9120370 (replaces 4773651)
	Balance shaft	9120370 (replaces 4771648)
	Balance shaft	9120370 (replaces 4771655)
	Bearing housing	90528845 (replaces 9543190)
4	Chain tensioner	90573822 (replaces 9543208)
5	Chain guide	24435752 (replaces 5342084)
6	Hexagon screw	11095091
6	Hexagon screw	11102991 (replaces 5342092)
	Hexagon screw	11092981 (replaces 9543232)
9	Screw	90572509 (replaces 9542739)
10	Hexagon screw	11095911 (replaces 4771747)
11	Hexagon screw	11099031 (replaces 9543323)
12	Chain	9128999 (replaces 9543240)
13	Chain gear	90500696 (replaces 9544305)
14	Hexagon screw	24435756 (replaces 5342118)
15	Cover	24435917 (replaces 5342142)
16	Screw	11096061 (replaces 4347696)
16	Screw	11095011 (replaces 4770780)
17	Pulley	55351711
18	Screw	90502706 (replaces 9544479)
19	Chain	90529247 (replaces 9544321)
20	Chain	90529248 (replaces 9544339)
21	Brace	90502311 (replaces 9544388)
22	Brace	90500768 (replaces 9544370)
23	Screw	90528245 (replaces 9544396)
24	Chain guide	90500772 (replaces 9544347)
25	Chain guide	90500766 (replaces 9544354)
26	Screw	11093782 (replaces 4500732)
27	Screw	24442408 (replaces 5342308)
28	Chain gear	90528134 (replaces 4772752)
29	Screw	11093292 (replaces 9544297)
30	Chain gear	24436034 (replaces 5342100)
31	Key	11016009 (replaces 9544313)
32	Chain tensioner	24418172 (replaces 5341805)
33	Chain tensioner	24418171 (replaces 5341813)
34	Gasket	11096531 (replaces 9544420)
