Saab 9-5 (9600) 1998-2010 Transmission Balance shaft

Group 2 Engine, section 310

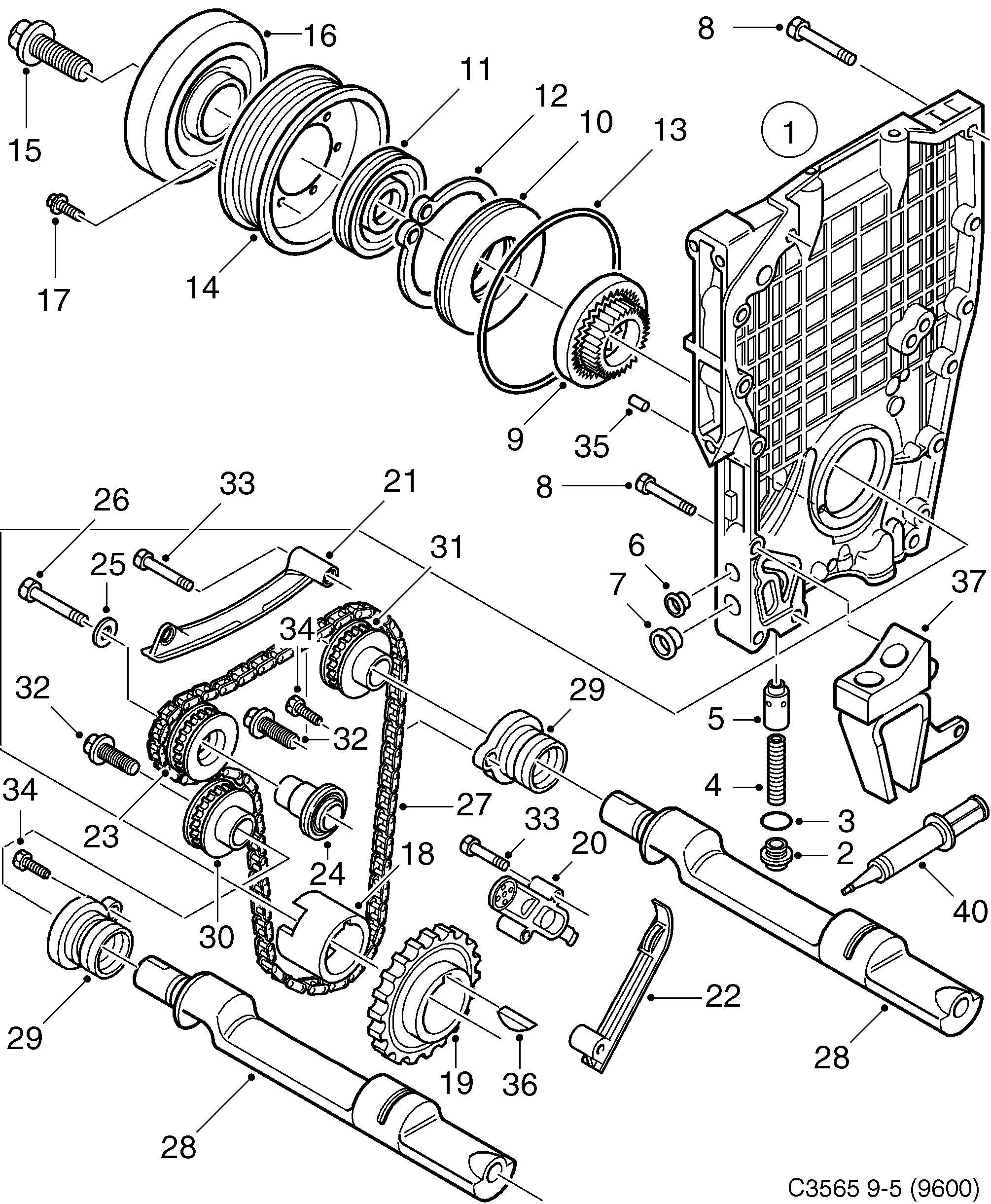

Saab 9-5 (9600) Transmission Balance shaft diagram

Pos	Article	Part No.
1	Cover	9542622
1	Cover	9542622 (replaces 9181991)
1	Cover	9542622 (replaces 9399809)
2	Plug	7508955 (replaces 9177973)
2	Plug	7508955
3	Gasket	9355389
4	Spring	55557232 (replaces 30569479)
4	Spring	55557232
5	Piston	9167784
6	Plug	8123168
7	Plug	8123192
8	Screw	92151834
9	Pump kit	8822702
10	Oil pump housing	55557365 (replaces 9173501)
11	Seal	55557231 (replaces 9173576)
11	Seal	55557231
12	Lock ring	30551798
13	Seal	9130600
14	Pulley	30551867 (replaces 9144874)
14	Pulley	30551867
15	Screw	9116443
16	Vibration damper	30585298 (replaces 9144833)
16	Vibration damper	30585298 (replaces 9199928)
17	Screw	92151823 (replaces 8059586)
18	Companion flange	30551799
19	Chain gear	9138264
20	Chain tensioner	9139130
21	Chain guide	55557272 (replaces 30551886)
21	Guide rail	55557272
22	Guide rail	55557271
23	Chain gear	9140658
24	Shaft	55557376
25	Thrust washer	9130535
26	Screw	92153157 (replaces 7984735)
26	Screw	92153157
27	Chain	7485105
28	Balance shaft	55557377
29	Bearing housing	9172255
30	Chain gear	55557384 (replaces 9178336)
31	Chain gear	55557379
32	Screw	55562873 (replaces 8082968)
32	Screw	55562873
33	Hexagon screw	92150006 (replaces 7978141)
34	Screw	11900354 (replaces 7978109)
35	Pin	7949548
37	Bracket	55564666 (replaces 4899589)
37	Bracket	55564666
40	Flange sealant	90297970
