Saab 9-5 (9600) 2006-2010 Transmission

Group 2 Engine, section 290

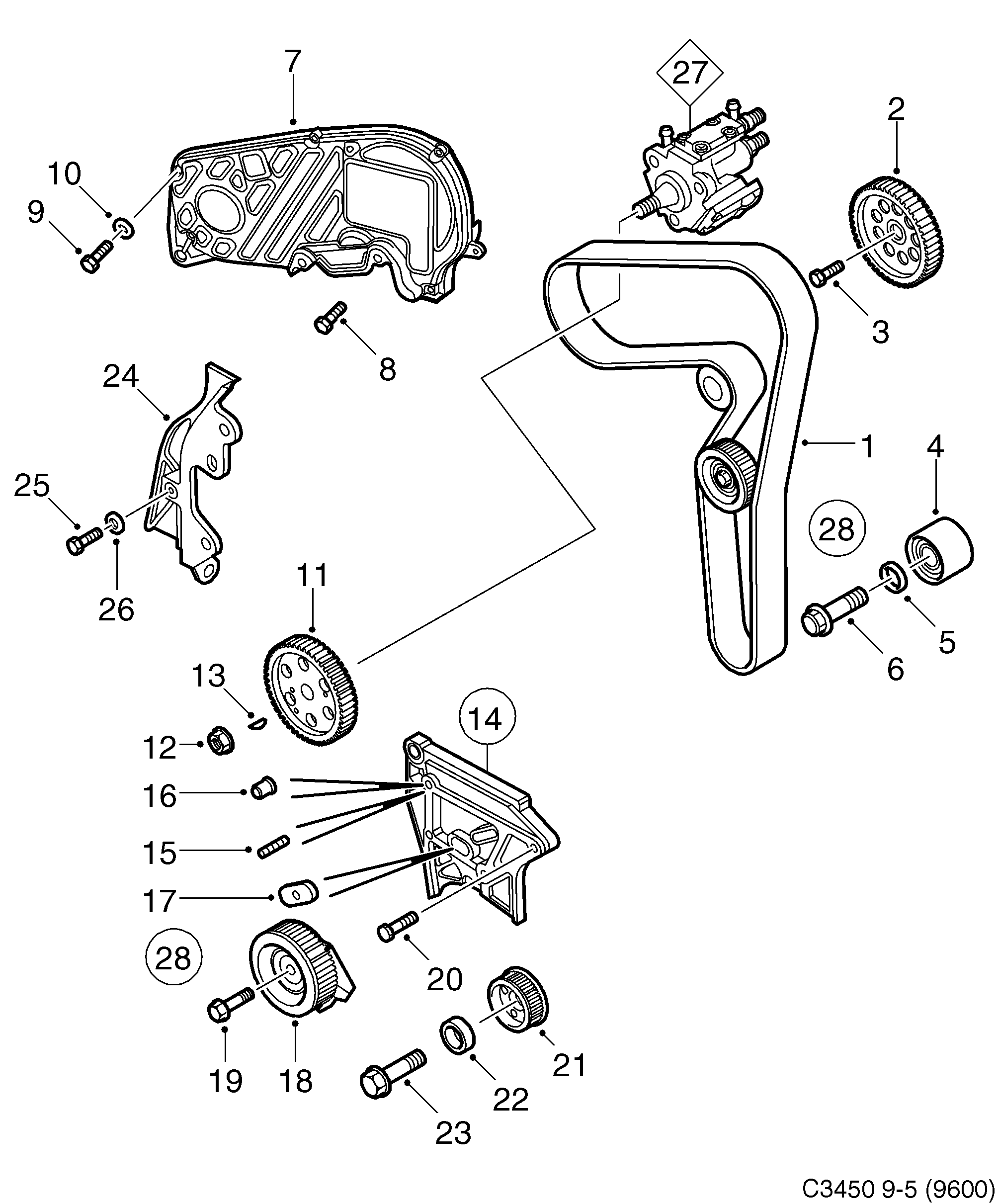

Saab 9-5 (9600) Transmission diagram

Pos	Article	Part No.
1	Tooth belt	93178812
2	Chain gear	93178380
3	Screw	93177298
4	Guide roller	93178807
5	Washer	93178972
6	Screw	93178810
7	Cover	55195971
8	Screw	93177417
9	Screw	93178833
10	Washer	93178977
11	Chain gear	93178823
12	Nut	93178824
13	Key	93179143
14	Bracket	55566199
15	Screw	93178973
16	Spacer ring	93178974
17	Nut	93178813
18	Tension pulley	55212159 (replaces 93186866)
19	Screw	93178814
20	Screw	93178829
21	Crankshaft gear	93178821
22	Spacer ring	93178818
23	Screw	93178819
24	Timing gear casing	93178976
25	Screw	93178832
28	Engine timing parts, kit	93191278
