Saab 9-5 (9600) 1998-2010 Transmission

Group 2 Engine, section 280

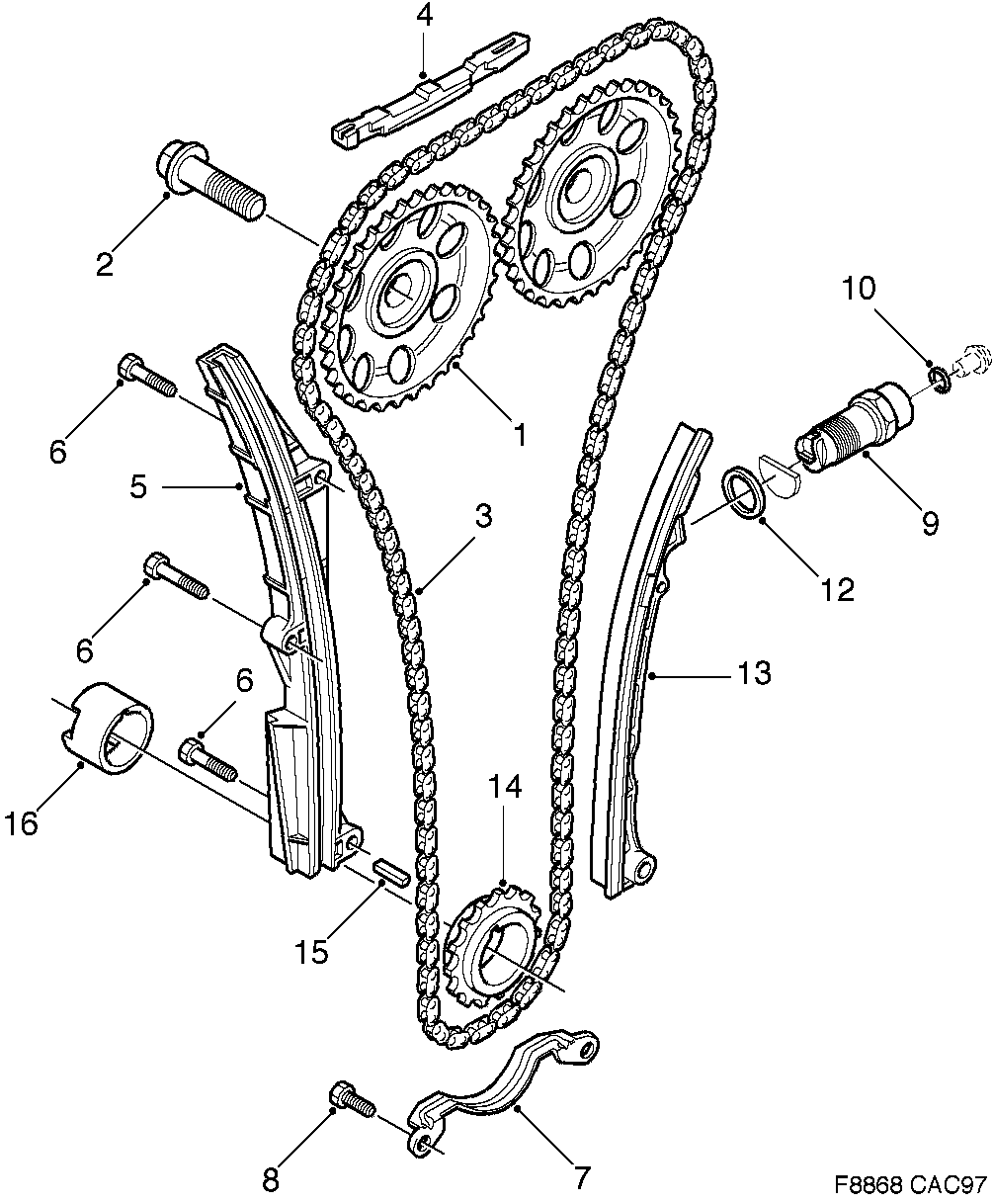

Saab 9-5 (9600) Transmission diagram

Pos	Article	Part No.
1	Chain gear	9115205
2	Screw	9107541
3	Chain	9131145
3	Chain	9321845
4	Chain guide	30518277
5	Chain guide	55557270 (replaces 32000421)
5	Guide	55557270
6	Hexagon screw	92150006 (replaces 7978141)
6	Hexagon screw	92150006
7	Chain protection	9136532
8	Screw	11900353 (replaces 7978091)
9	Chain tensioner	7585086
10	O-ring	8048670 (replaces 8109571)
12	Seal	7508690
13	Chain guide	55557269 (replaces 30551887)
13	Guide	55557269
14	Chain gear	30520419
15	Key	30520452
