Saab 9-5 (9600) 1998-2010 Belt tensioner

Group 2 Engine, section 250

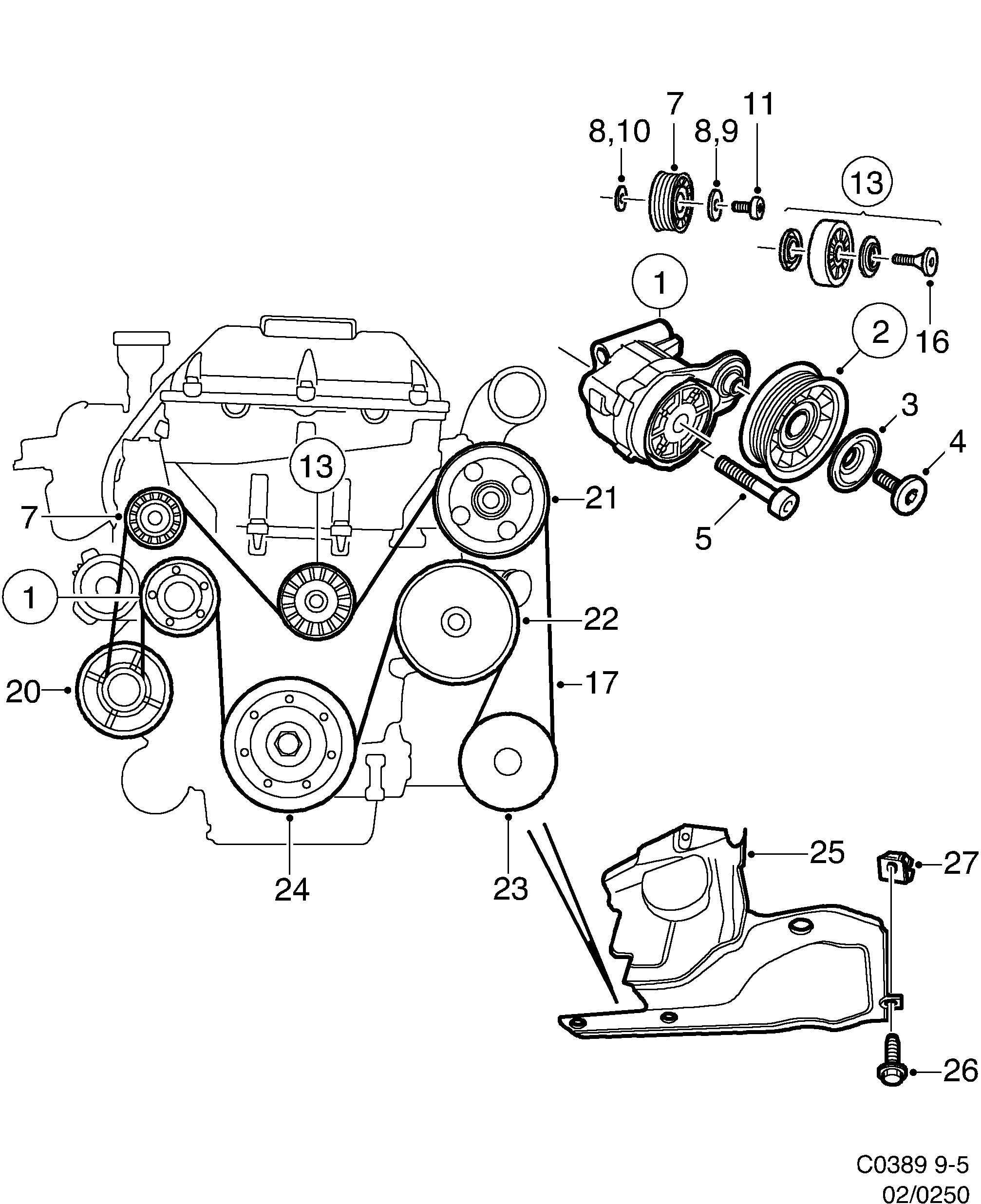

Saab 9-5 (9600) Belt tensioner diagram

Pos	Article	Part No.
1	Belt tensioner	4898755
2	Tension pulley	5172309
3	Washer	4752895
4	Screw	5172291
5	Screw	55562633 (replaces 4940367)
5	Screw	55562633
7	Idler pulley	4356127
7	Idler pulley	4968590
7	Idler pulley	55562635
8	Bearing shield	4961959
9	Bearing shield	4968616
10	Bearing shield	4968624
11	Screw	8082984
11	Screw	4968608
13	Tension pulley	4752960
16	Screw	4940847
17	Belt	4896312
17	Belt	4965687
17	Belt	4899548
17	Belt	55563222 (replaces 4896320)
17	Belt	55563222 (replaces 5590344)
17	Belt	55563222
25	Protection	4954954
26	Screw	92153149
27	Expanding nut	4333704
27	Clip	8238305
27	Expanding nut	92152304
