Saab 9-5 (9600) 1998-2010 Cylinder block

Group 2 Engine, section 190

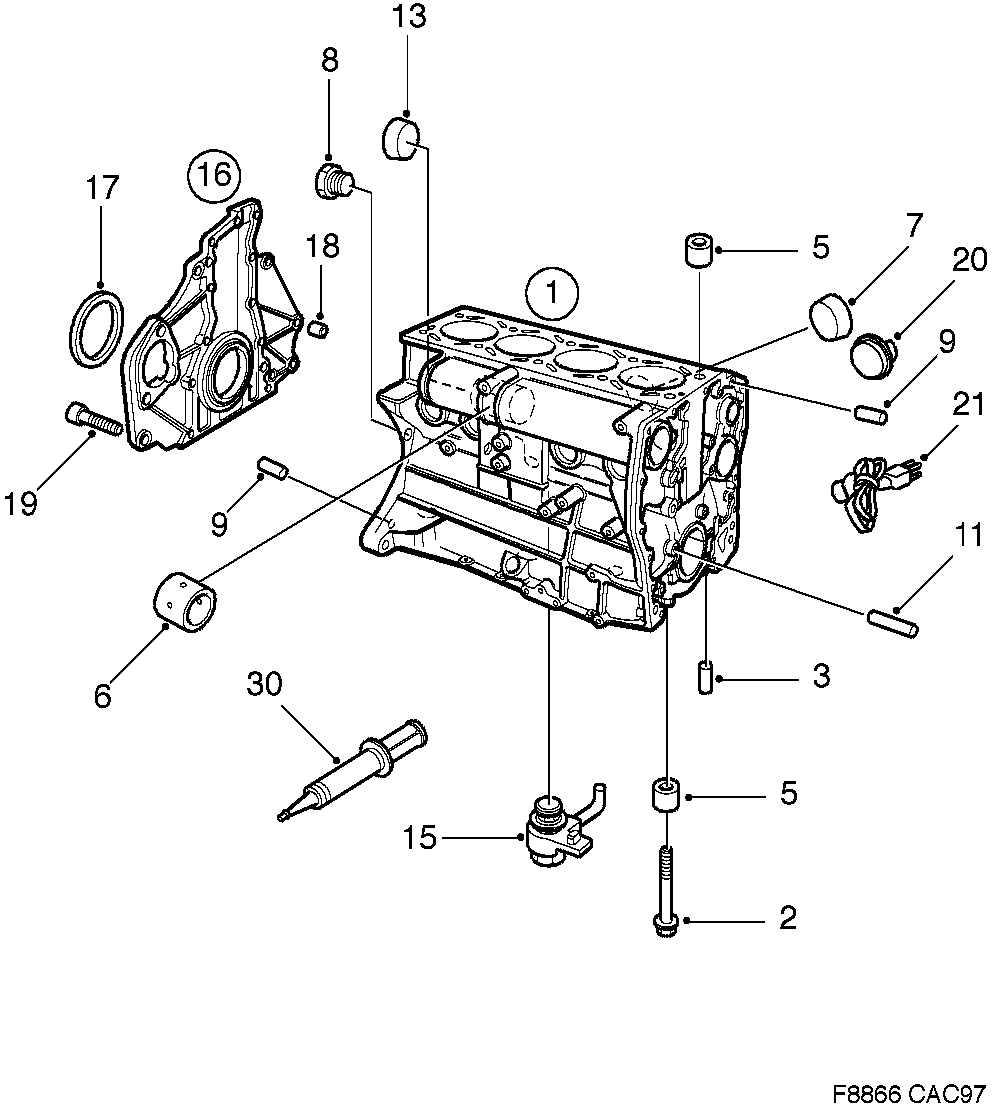

Saab 9-5 (9600) Cylinder block diagram

Pos	Article	Part No.
1	Cylinder block	9174285
1	Cylinder block	9549478
2	Screw	9128687
3	Pin	7949548
5	Guide	8346470
6	Bushing	9172230
7	Sealing washer	7985120
8	Plug	8348047
9	Guide	7585052
11	Pin	7950066
13	Sealing washer	92151501 (replaces 8123259)
13	Plug	92151501
15	Piston cooling jet	9167677
16	Plate	55557715 (replaces 30564736)
16	Plate	55557715
17	Seal	55557240 (replaces 30565654)
17	Seal	55557240
18	Guide sleeve	9129800
19	Screw	55560366 (replaces 4087235)
19	Screw	55560366
20	Engine heater	4725883
21	Extension cable	4397311
30	Flange sealant	90297970
