Saab 9-5 (9600) 2006-2010 Cylinder head

Group 2 Engine, section 150

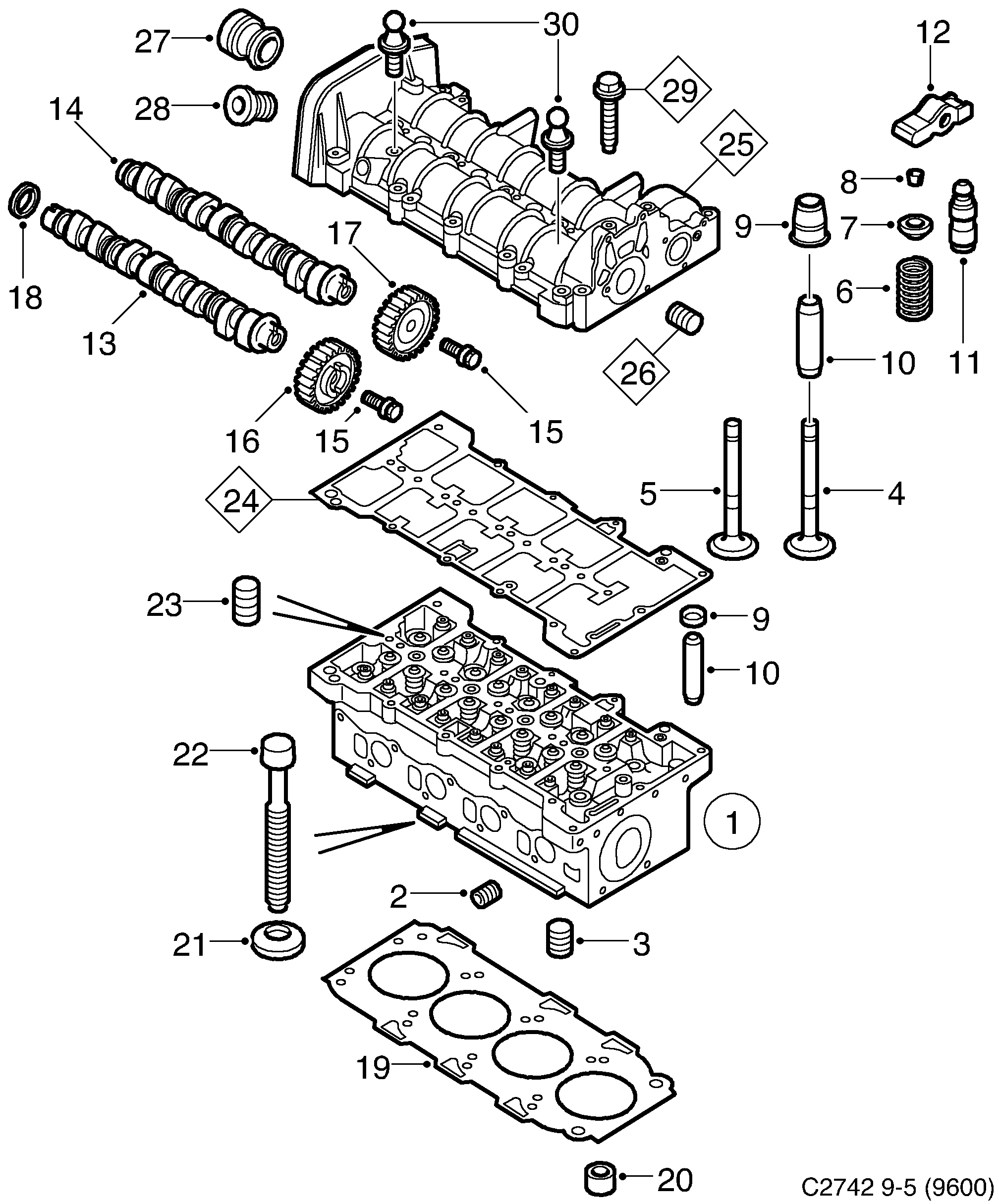

Saab 9-5 (9600) Cylinder head diagram

Pos	Article	Part No.
1	Cylinder head	93196107 (replaces 93178357)
1	Cylinder head	55206422
1	Cylinder head	55565880
2	Screw plug	93178476
3	Screw plug	93180038
4	Inlet valve	93185523
4	Inlet valve	55565261
5	Exhaust valve	93178588
5	Exhaust valve	55219794 (replaces 55205183)
6	Spring	93178592
6	Valve spring	55204136
7	Washer	93178593
7	Spring disc	55564476 (replaces 55183811)
8	Valve cone	93177314
8	Valve cone	12855339
9	Seal	93178590
9	Seal	55183812
10	Valve guide	93178836
10	Valve guide	55210015
10	Valve guide	93178837
10	Valve guide	55210016
10	Valve guide	93178838
10	Valve guide	55210017
11	Tappet	93177316
11	Valve lifter	93178591
12	Rocker arm	93188668
12	Rocker arm	55186463
13	Camshaft	93178582
13	Camshaft	55565850
14	Camshaft	93178583
14	Camshaft	55565852
15	Screw	93177298
16	Pulley	93178584
17	Pulley	93178585
18	Sealing ring	12855372 (replaces 93178980)
19	Gasket	93183224
19	Gasket	93183226
19	Gasket	93183227
20	Sleeve	93178416
21	Washer	93178478
22	Screw	55571777 (replaces 93178479)
23	Lock plug	93178480
27	Lock plug	93178484
28	Sealing washer	93178485
30	Ball stud	55560110
